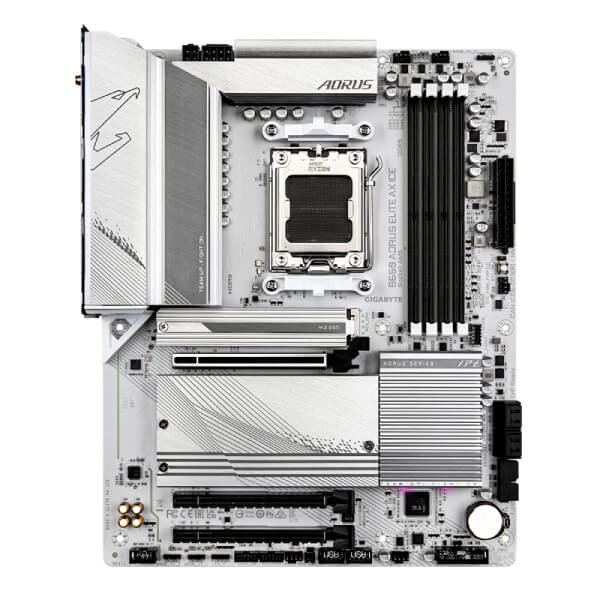

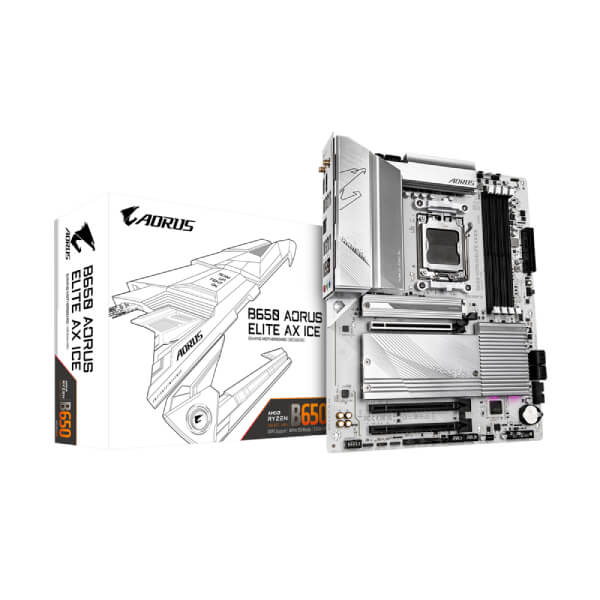

Gigabyte B650 Aorus Elite AX ICE WIFI ATX Motherboard
Gigabyte B650 Aorus Elite AX ICE WIFI ATX Motherboard - Image 2
Gigabyte B650 Aorus Elite AX ICE WIFI ATX Motherboard - Image 3
Click to enlarge
    Gigabyte B650 Aorus Elite AX ICE WIFI ATX Motherboard
    Gigabyte B650 Aorus Elite AX ICE WIFI ATX Motherboard - Image 2
    Gigabyte B650 Aorus Elite AX ICE WIFI ATX Motherboard - Image 3

    Gigabyte B650 Aorus Elite AX ICE WIFI ATX Motherboard

    11 Items sold in last 7 days
    Brand:
    45 People watching this product now!
    SKU: B650-AORUS-ELITE-AX-ICE Categories: , ,

    Original price was: ₹38,900.00.Current price is: ₹21,050.00.

    Compare
    Add to wishlist
    Description

    Featurs:

    • AMD Socket AM5：Supports AMD Ryzen 7000/ Ryzen 8000/ Ryzen 9000 Series Processors
    • Unparalleled Performance：Twin 12+2+2 Phases Digital VRM Solution
    • Dual Channel DDR5：4*DIMMs with AMD EXPO & Intel XMP Memory Module Support
    • Superfast Storage：1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors
      Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
    • EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
    • Fast Networks：2.5GbE LAN & Wi-Fi 6E
    • Extended Connectivity：HDMI, DP, Front USB-C 20Gb/s, Rear USB-C 10Gb/s
    • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
    • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

    Specification:

    Model B650 AORUS ELITE AX ICE
    CPU AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
    Chipset AMD B650
    Memory Support for DDR5 8000(OC)/7800(OC)/

    7600(OC)/7200(OC)/7000(OC)/6800(OC)/

    6666(OC)/6600(OC)/6400(OC)/6200(OC)/

    6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules

    4 x DDR5 DIMM sockets supporting up to 256 GB (48 GB single DIMM capacity) of system memory

    Dual channel memory architecture

    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

    Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory module

    (The CPU and memory configuration may affect the supported memory types, data  rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)
    Onboard Graphics Integrated Graphics Processor with AMD Radeon Graphics support:

    – 1 x DisplayPort, supporting a maximum resolution of 3840×2160144 Hz

    – 1 x HDMI port, supporting a maximum resolution of 4096×2160 60 Hz
    Audio
    • Realtek Audio CODEC
    • High Definition Audio
    • 2/4/5.1/7.1-channel
    LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    Wireless Communication module Realtek Wi-Fi 6E RTL8852CE
    – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    – BLUETOOTH 5.3
    – Support for 11ax 160MHz wireless
    (Actual data rate may vary depending on environment and equipment)
    Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

    -AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode

    -AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

    -AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

    * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    Chipset:

    – 2 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2))
    Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

    -AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
    -AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    -AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

    1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
    -AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
    -AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    -AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

    1xM.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key,type 25110/22110/2580/2280 PCIe 4.0

    4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, and RAID 10 support for SATA storage devices
    USB CPU:

    – 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support

    – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU + USB 2.0 Hub:

    – 4 x USB 2.0/1.1 ports on the back panel

    Chipset:

    – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header

    – 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)

    – 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub:

    – 4 x USB 3.2 Gen 1 ports on the back panel
    Internal I/O Connectors
    • 1 x 24-pin ATX main power connector
    • 1 x 8-pin ATX 12V power connector
    • 1 x CPU fan header
    • 1 x CPU fan/water cooling pump header
    • 3 x system fan headers
    • 1 x system fan/water cooling pump header
    • 2 x addressable LED strip headers
    • 2 x RGB LED strip headers
    • 1 x CPU cooler LED strip/RGB LED strip header
    • 2 x M.2 Socket 3 connectors
    • 4 x SATA 6Gb/s connectors
    • 1 x front panel header
    • 1 x front panel audio header
    • 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
    • 1 x USB 3.2 Gen 1 header
    • 2 x USB 2.0/1.1 headers
    • 1 x serial port header
    • 1 x THB_U4 add-in card connector
    • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
    • 1 x reset button
    • 1 x reset jumper
    • 1 x Clear CMOS jumper

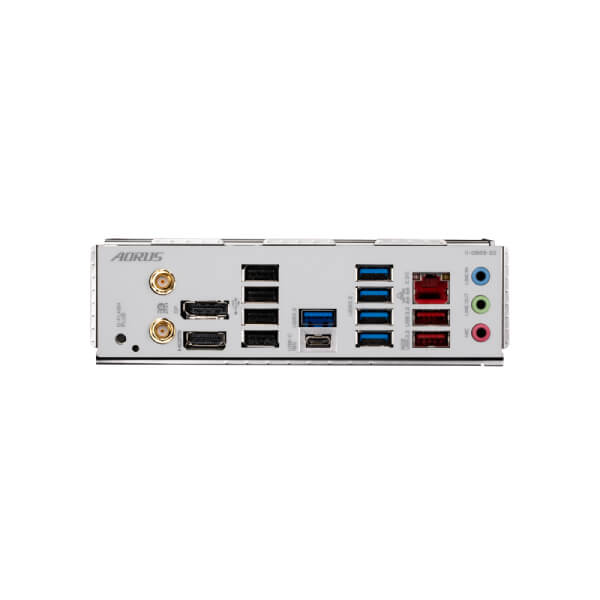

    Back Panel Connectors
    • 1 x Q-Flash Plus button
    • 2 x SMA antenna connectors (2T2R)jk
    • 1 x DisplayPort
    • 1 x HDMI port
    • 1 x USB Type-C® port, with USB 3.2 Gen 2 support
    • 2 x USB 3.2 Gen 2 Type-A ports (red)
    • 5 x USB 3.2 Gen 1 ports
    • 4 x USB 2.0/1.1 ports
    • 1 x RJ-45 port
    • 1 x optical S/PDIF Out connector
    • 2 x audio jacks
    I/O Controller iTE I/O ControllerChip
    H/W Monitoring
    • Voltage detection
    • Temperature detection
    • Fan speed detection
    • Water cooling flow rate detection
    • Fan fail warning
    • Fan speed control
    BIOS 1 x 256 Mbit flash

    Use of licensed AMI UEFI BIOS

    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Unique Features Support for GIGABYTE Control Center (GCC)

    Support for Q-Flash

    Support for Q-Flash Plus
    Bundled Software Norton Internet Security (OEM version)

    LAN bandwidth management software
    Operating System Support for Windows 11 64-bit

    Support for Windows 10 64-bit
    Form Factor ATX Form Factor; 30.5cm x 24.4cm
    Warranty 3 Years
    Note *** Images are for Representation purposes only

    *** Features, Price, Specifications are subject to change without notice.
    Additional information
    PlatformAMD
    Form FactorATX
    Stock Status:In Stock
    ManufacturerGigabyte
    ColorWhite
    Motherboar SocketAM5
    Motherboard ChipsetB650
    Motherboard Memory Speedup to 8000+
    Supported Memory TypeDDR5
    Max Memory Support128 GB
    Channel SupportedDual Channel
    Memory FeatureSupports ECC UDIMM memory (non-ECC mode), Supports non-ECC UDIMM memory, Supports un-buffered memory
    Expansion Slots1x PCIe 3.0 x16 slot (from AMD processor), 4000G and 3000 processors Supports x8 speed with Ryzen 3000G processors, 5000G, Supports x16 speed with Ryzen 5000, Supports x4 speed with AMD Athlon with Radeon Graphics processors 1x PCIe 3.0 x1 slot
    Back Panel I/O PortsLAN port HDMI DVI-D Keyboard / Mouse USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A USB 2.0 Ports Audio Connectors
    Internal I/O Connector1x 24-pin ATX main power connector, 1x 4-pin ATX 12V power connector, 1x 4-pin CPU fan connector, 1x 4-pin system fan connectors, 1x Chassis Intrusion connector, 1x Clear CMOS jumper, 1x Front panel audio connector, 1x M.2 slots (M-Key), 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 1xTPM module connector, 2x System panel connectors, 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 4x SATA 6Gb/s connectors
