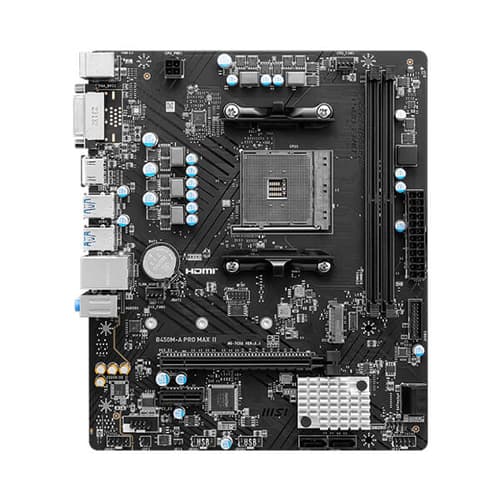

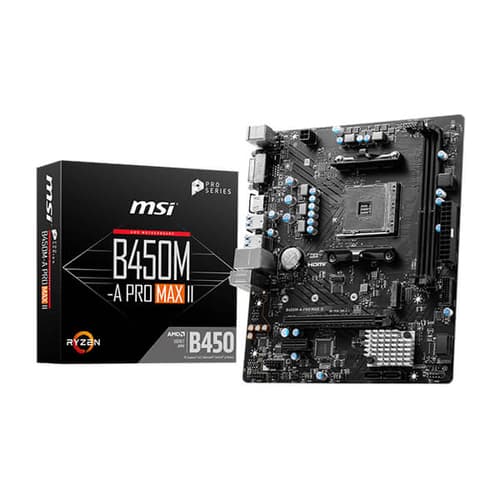

MSI B450M-A Pro Max II Motherboard
MSI B450M-A Pro Max II Motherboard - Image 2
MSI B450M-A Pro Max II Motherboard - Image 3
Click to enlarge
    MSI B450M-A Pro Max II Motherboard
    MSI B450M-A Pro Max II Motherboard - Image 2
    MSI B450M-A Pro Max II Motherboard - Image 3

    MSI B450M-A Pro Max II Motherboard

    23 Items sold in last 7 days
    Brand:
    53 People watching this product now!
    SKU: B450M-A-PRO-MAX-II Categories: , ,

    Original price was: ₹12,750.00.Current price is: ₹6,700.00.

    Compare
    Add to wishlist
    Description

    Features:

    AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Turbo M.2, USB 3.2 Gen1

    • Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series desktop processors and Athlon™ with Radeon™ Vega Graphics desktop processors
    • Supports DDR4 Memory, up to 4133 (OC) MHz
    • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
    • Audio Boost: Reward your ears with studio grade sound quality.
    • 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
    • X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
    • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

    Specification:

    Model B450M-A PRO MAX II
    Chipset AMD B450
    CPU SUPPORT Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series Desktop Processor and Athlon™ with Radeon™ Vega Graphics desktop processors
    Socket AM4
    Memory
    • 2x DDR4, Maximum Memory Capacity 64GB
    • Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE)
    • Supports Dual-Channel mode
    • Supports non-ECC, UDIMM memory
    • Supports ECC UDIMM memory (non-ECC mode)
    • Supports un-buffered memory
    Onboard Graphics
    • 1x HDMI™

    Support HDMITM 1.4, maximum resolution of 4K 24Hz*

    • 1x DVI

    Support DVI-D, maximum resolution of 1920×1200 60Hz
    EXPANSION SLOT
    • 1x PCI-E x16 slot
    • 1x PCI-E x1 slot
    • PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU)
    • PCI_E2 Gen PCIe 2.0 supports up to x1 (From Chipset)
    Storage 1x M.2
    M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
    4x SATA 6G
    RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    USB
    • 2x USB 2.0 (Rear)
    • 4x USB 2.0 (Front)
    • 4x USB 3.2 Gen1 Type A (Rear)
    • 2x USB 3.2 Gen1 Type A (Front)
    LAN Realtek® 8125 2.5Gbps LAN controller
    Audio Realtek® ALC897 Codec
    7.1-Channel High Definition Audio
    Internal I/O
    • 1x Power Connector(ATX_PWR)
    • 1x Power Connector(CPU_PWR)
    • 1x CPU Fan
    • 1x System Fan
    • 2x Front Panel (JFP)
    • 1x Chassis Intrusion (JCI)
    • 1x Front Audio (JAUD)
    • 1x Com Port (JCOM)
    • 1x TPM pin header(Support TPM 2.0)
    • 4x USB 2.0 ports
    • 2x USB 3.2 Gen1 Type A ports
    BACK PANEL PORTS
    • Keyboard/Mouse
    • DVI-D
    • HDMI™
    • USB 3.2 Gen 1 5Gbps (Type-A)
    • 2.5G LAN
    • Audio connectors
    • USB 2.0
    OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
    PCB Dimension (W × L) mATX
    200mmx236mm
    Warranty 3 Years
    Note *** Features, Price, Specifications are subject to change without notice.
    Additional information
    ManufacturerMsi
    PlatformAMD
    ColorBlack
    Motherboar SocketB450
    Motherboard ChipsetA520
    Motherboard Memory Speedup to 4133
    Supported Memory TypeDDR4
    Channel SupportedDual Channel
    Memory FeatureSupports ECC UDIMM memory (non-ECC mode), Supports non-ECC UDIMM memory, Supports un-buffered memory
    Expansion Slots1x PCIe 3.0 x16 slot (from AMD processor), 4000G and 3000 processors Supports x8 speed with Ryzen 3000G processors, 5000G, Supports x16 speed with Ryzen 5000, Supports x4 speed with AMD Athlon with Radeon Graphics processors 1x PCIe 3.0 x1 slot
    Back Panel I/O PortsLAN port HDMI DVI-D Keyboard / Mouse USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A USB 2.0 Ports Audio Connectors
    Internal I/O Connector1x 24-pin ATX main power connector, 1x 4-pin ATX 12V power connector, 1x 4-pin CPU fan connector, 1x 4-pin system fan connectors, 1x Chassis Intrusion connector, 1x Clear CMOS jumper, 1x Front panel audio connector, 1x M.2 slots (M-Key), 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 1xTPM module connector, 2x System panel connectors, 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 4x SATA 6Gb/s connectors
    Max Memory Support64 GB
