-37%

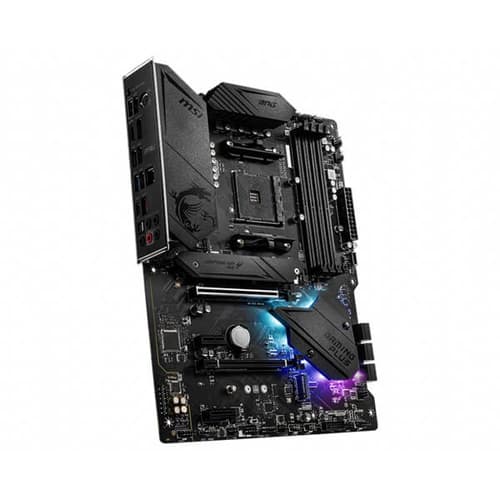

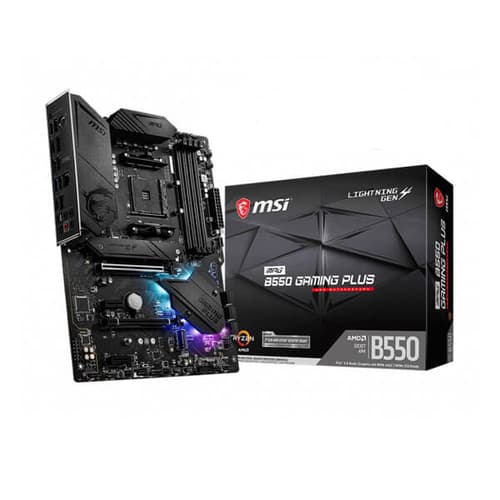

MSI MPG B550 Gaming Plus Motherboard
MSI MPG B550 Gaming Plus Motherboard - Image 2
MSI MPG B550 Gaming Plus Motherboard - Image 3
Click to enlarge
    MSI MPG B550 Gaming Plus Motherboard
    MSI MPG B550 Gaming Plus Motherboard - Image 2
    MSI MPG B550 Gaming Plus Motherboard - Image 3

    MSI MPG B550 Gaming Plus Motherboard

    29 Items sold in last 7 days
    Brand:
    24 People watching this product now!
    SKU: MPG-B550-GAMING-PLUS Categories: , ,

    Original price was: ₹20,700.00.Current price is: ₹13,100.00.

    Compare
    Add to wishlist
    Description

    Important Notice :

    • BIOS Update May Be Required With This Motherboard in order to support the Latest Generation Ryzen Processor (Upto 5th Gen Ryzen).
    • The Maximum Supported Memory Speed Varies with The Generation of Ryzen Processor You are Using With it.
    • For Additional Information Regarding Compatibility, Please Check Within the Manufacturers Website

    Features:

    • Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
    • Supports DDR4 Memory, up to 4400(OC) MHz
    • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2
    • Enhanced Power Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, DDR4 Boost
    • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
    • Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
    • Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.
    • Audio Boost: Reward your ears with studio grade sound quality

    Specifications:

    CPU Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
    Chipset AMD B550 Chipset
    Memory
    • 4x DDR4 memory slots, support up to 128GB
      • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
      • Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733 / 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE
        • 1DPC 1R max speed 4400 MHz
        • 1DPC 2R max speed 3866 MHz
        • 2DPC 1R max speed 4000 MHz
        • 2DPC 2R max speed 3600 MHz
    • Dual channel memory architecture
    • Supports non-ECC UDIMM memory
    • Supports ECC UDIMM memory (non-ECC mode)
    • Supports un-buffered memory
    Expansion Slot
    • 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
    • 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed
    • 2x PCIe 3.0 x1 slots
    1. The supported specification depends on installed processor.
    2. When installing PCIe SSD in M.2_2, PCI_E3 slot will be unavailable.
    Multi-GPU Supports 2-Way AMD CrossFire Technology
    Onboard Graphics
    • 1x HDMI port, supports a maximum resolution of 4096×2160 @24Hz
    • 1x DisplayPort, supports a maximum resolution of 4096×2160 @60Hz
    • Maximum shared memory of 16 GB
    1. Available for the processor with integrated graphics.
    2. Graphics specifications may vary depending on the CPU installed.
    Storage AMD B550 Chipset

    • 6x SATA 6Gb/s ports
    • 2x M.2 slots (Key M)
      • M2_1 slot (from AMD Processor)
        • Supports PCIe 4.0/ 3.0 x4
        • Supports SATA 6Gb/s
        • Supports 2242/ 2260/ 2280/ 22110 storage devices
      • M2_2 slot (from AMD B550 chipset)
        • Supports PCIe 3.0×4
        • Supports 2242/ 2260/ 2280 storage devices
    1. The supported specification depends on installed processor.
    RAID
    • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
    USB AMD B550 Chipset

    • 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
    • 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

    AMD Processor

    • 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
    • 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
    Audio Realtek ALC892 Codec

    • 7.1-Channel High Definition Audio
    • Supports S/PDIF output
    LAN 1x Realtek 8111H Gigabit LAN controller
    LED Features
    • 1x EZ LED Control switch
    • 4x EZ Debug LED
    Internal connectors
    • 1x 24-pin ATX main power connector
    • 1x 8-pin ATX 12V power connector
    • 6x SATA 6Gb/s connectors
    • 2x M.2 slots (M-Key)
    • 1x USB 3.2 Gen 1 5Gbps Type-C port
    • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
    • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    • 1x 4-pin CPU fan connector
    • 1x 4-pin water-pump fan connector
    • 6x 4-pin system fan connectors
    • 1x Front panel audio connector
    • 2x System panel connectors
    • 1x Chassis Intrusion connector
    • 1x 4-pin RGB LED connector
    • 2x 3-pin RAINBOW LED connectors
    • 1xTPM module connector
    • 1x Clear CMOS jumper
    Back panel ports
    • PS/2 Combo Port
    • DisplayPort
    • LAN Port
    • USB 3.2 Gen 2 10Gbps (Type-A)
    • HD Audio Connectors
    • Flash BIOS Button
    • USB 2.0
    • HDMI
    • USB 2.0
    • USB 3.2 Gen 1 5Gbps (Type-A)
    • USB 3.2 Gen 2 10Gbps (Type-C)
    • Optical S/PDIF OUT
    Dimensions
    • ATX Form Factor
    • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
    Mounting 9 mounting holes
    I/O Controller NUVOTON NCT6687-R Controller Chip
    Hardware Monitor
    • CPU/ System/ Chipset temperature detection
    • CPU/ System/ Pump fan speed detection
    • CPU/ System/ Pump fan speed control
    Warranty 3 Years
    Note Features, Price and Specifications are subject to change without notice.

    Images used for representation purpose only
    Additional information
    Stock Status:In Stock
    Form FactorATX
    ManufacturerMsi
    PlatformAMD
    ColorBlack
    Motherboar SocketAM4
    Motherboard ChipsetB550
    Motherboard Memory Speedup to 4400+
    Supported Memory TypeDDR4
    Max Memory Support128 GB
    Channel SupportedDual Channel
    Memory FeatureSupports ECC UDIMM memory (non-ECC mode), Supports non-ECC UDIMM memory, Supports un-buffered memory
    Expansion Slots1x PCIe 3.0 x16 slot (from AMD processor), 4000G and 3000 processors Supports x8 speed with Ryzen 3000G processors, 5000G, Supports x16 speed with Ryzen 5000, Supports x4 speed with AMD Athlon with Radeon Graphics processors 1x PCIe 3.0 x1 slot
    Back Panel I/O PortsLAN port HDMI DVI-D Keyboard / Mouse USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A USB 2.0 Ports Audio Connectors
    Internal I/O Connector1x 24-pin ATX main power connector, 1x 4-pin ATX 12V power connector, 1x 4-pin CPU fan connector, 1x 4-pin system fan connectors, 1x Chassis Intrusion connector, 1x Clear CMOS jumper, 1x Front panel audio connector, 1x M.2 slots (M-Key), 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 1xTPM module connector, 2x System panel connectors, 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 4x SATA 6Gb/s connectors
