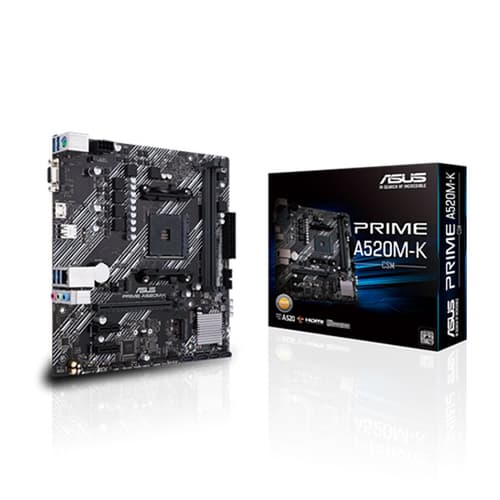

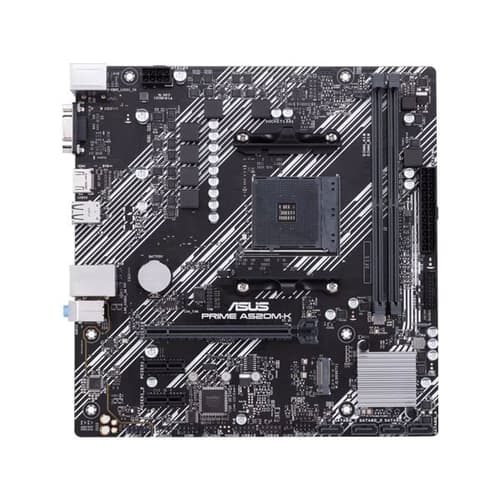

Asus Prime A520M-K/CSM M-ATX Motherboard
Asus Prime A520M-K/CSM M-ATX Motherboard - Image 2
Asus Prime A520M-K/CSM M-ATX Motherboard - Image 3
Click to enlarge
    Asus Prime A520M-K/CSM M-ATX Motherboard
    Asus Prime A520M-K/CSM M-ATX Motherboard - Image 2
    Asus Prime A520M-K/CSM M-ATX Motherboard - Image 3

    Asus Prime A520M-K/CSM M-ATX Motherboard

    108 Items sold in last 7 days
    Brand:
    32 People watching this product now!
    SKU: PRIME-A520M-K-CSM Categories: , ,

    Original price was: ₹10,000.00.Current price is: ₹5,800.00.

    Compare
    Add to wishlist
    Description

    Features:

    ATX motherboard with M.2 support, 1 Gb Ethernet, HDMI/D-Sub, SATA 6 Gbps, USB 3.2 Gen 1 Type-A

    • AMD AM4 socket: Ready for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
    • Comprehensive cooling: PCH heatsink and Fan Xpert
    • Ultrafast connectivity: M.2 support, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A
    • 5X Protection III: Multiple hardware safeguards for all-around system protection

    Specifications:

    Model PRIME A520M-K/CSM
    CPU AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
    Chipset AMD A520
    Memory 2 x DIMM, Max. 64GB, DDR4

    4866(O.C)/4600(O.C)/4466(O.C.)/

    4400(O.C)/4333(O.C.)/4266(O.C.)

    /4200(O.C.)/4133(O.C.)/4000(O.C.)

    /3866(O.C.)/3733(O.C.)/3600(O.C.)/

    3466(O.C.)/3400(O.C.)/3333(O.C.)/

    3200/3000/2933/2800/2666/2400/

    2133 MHz Un-buffered Memory

    Dual Channel Memory Architecture
    ECC Memory (ECC mode) support varies by CPU.
    Graphic 1 x D-Sub
    1 x HDMI 2.1(4K@60HZ)
    Expansion Slots AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors

    1 x PCIe 3.0 x16 (x16 mode)

    AMD A520 Chipset

    2 x PCIe 3.0 x1
    Storage Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
    AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors :

    1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support

    AMD A520 Chipset :

    4 x SATA 6Gb/s port(s),
    Support Raid 0, 1, 10
    LAN Realtek RTL8111H 1Gb Ethernet
    ASUS LANGuard
    Audio Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC

    • Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback

    Audio Feature :

    • Audio Shielding
      Dedicated audio PCB layers
    USB Ports Rear USB Port ( Total 6 )

    • 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
    • 2 x USB 2.0 port(s)(2 x Type-A)

    Front USB Port ( Total 6 )

    • 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
    • 4 x USB 2.0 port(s)(4 x Type-A)
    Software Features ASUS Exclusive Software
    Armoury Crate
    AI Suite 3
    – Performance and Power Saving Utility
    TurboV EVO
    EPU
    Digi+ VRM
    Fan Xpert
    – EZ update
    ASUS CPU-Z
    AI Charger
    DAEMON Tools
    Norton Anti-virus software (Free Trial for 60 days)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode
    ASUS Special Features ASUS 5X PROTECTION III
    – ASUS DIGI+ VRM
    – ASUS LANGuard
    – ASUS Overvoltage Protection
    – ASUS SafeSlot Core
    – ASUS Stainless-Steel Back I/O
    ASUS Q-Design
    – ASUS Q-DIMM
    – ASUS Q-Slot
    ASUS Thermal Solution
    – Aluminum heatsink design

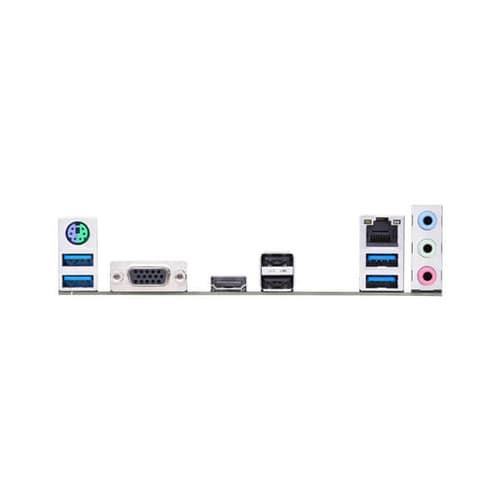

    Back I/O Ports
    • 1 x PS/2 keyboard/mouse combo port(s)
    • 1 x D-Sub
    • 1 x HDMI
    • 1 x LAN (RJ45) port(s)
    • 4 x USB 3.2 Gen 1 (blue) Type-A
    • 2 x USB 2.0
    • 3 x Audio jack(s)
    Internal I/O Ports
    • 1 x CPU Fan connector(s)
    • 1 x Chassis Fan connector(s)
    • 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
    • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    • 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
    • 1 x SPI TPM header
    • 4 x SATA 6Gb/s connector(s)
    • 1 x S/PDIF out header(s)
    • 1 x 24-pin EATX Power connector(s)
    • 1 x 8-pin EATX 12V Power connectors
    • 1 x Front panel audio connector(s) (AAFP)
    • 1 x Clear CMOS jumper(s)
    • 1 x System panel connector
    • 1 x COM port header
    • 1 x Speaker connector
    Accessories User´s manual
    1 x ACC Express Activation Key Card
    I/O Shield
    2 x SATA 6Gb/s cable(s)
    1 x Supporting DVD
    1 x M.2 SSD screw package(s)
    BIOS 256 Mb Flash ROM, UEFI AMI BIOS
    Manageability WOL by PME, PXE
    Operating System Windows 10 64-bit
    Form Factor mATX Form Factor
    8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
    Warranty 3 Years
    Note Features, Price, Specifications are subject to change without notice.

    Images used for representation purpose only



    Additional information
    Stock Status:In Stock
    ManufacturerAsus
    PlatformAMD
    ColorBlack
    Motherboar SocketAM4
    Motherboard ChipsetA520
    Motherboard Memory Speedup to 4866
    Supported Memory TypeDDR4
    Channel SupportedDual Channel
    Memory FeatureSupports ECC UDIMM memory (non-ECC mode), Supports non-ECC UDIMM memory, Supports un-buffered memory
    Expansion Slots1x PCIe 3.0 x16 slot (from AMD processor), 4000G and 3000 processors Supports x8 speed with Ryzen 3000G processors, 5000G, Supports x16 speed with Ryzen 5000, Supports x4 speed with AMD Athlon with Radeon Graphics processors 1x PCIe 3.0 x1 slot
    Back Panel I/O PortsLAN port HDMI DVI-D Keyboard / Mouse USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A USB 2.0 Ports Audio Connectors
    Internal I/O Connector1x 24-pin ATX main power connector, 1x 4-pin ATX 12V power connector, 1x 4-pin CPU fan connector, 1x 4-pin system fan connectors, 1x Chassis Intrusion connector, 1x Clear CMOS jumper, 1x Front panel audio connector, 1x M.2 slots (M-Key), 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 1xTPM module connector, 2x System panel connectors, 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 4x SATA 6Gb/s connectors
    Max Memory Support64 GB
