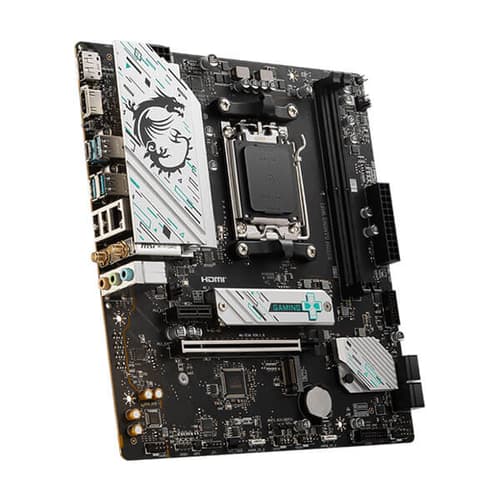

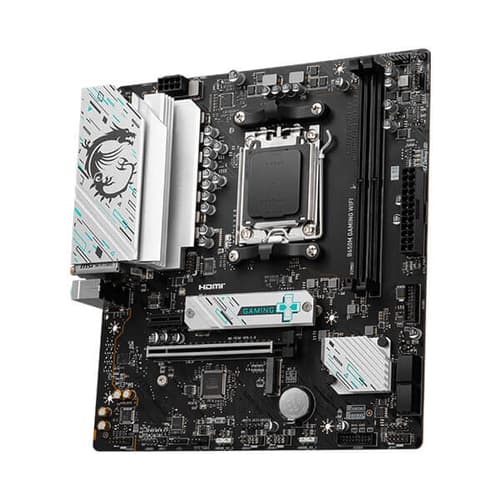

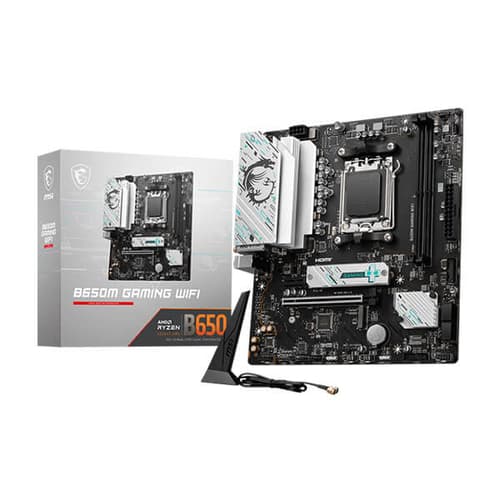

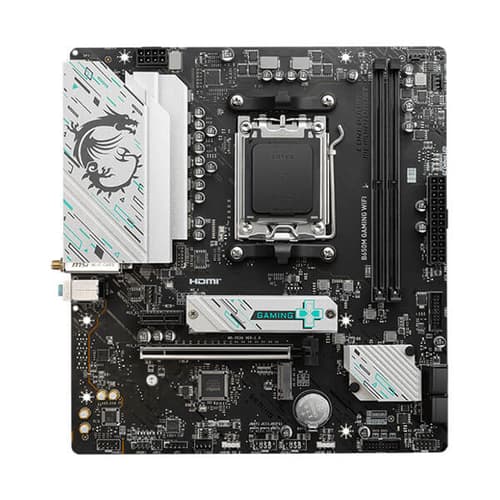

MSI B650M Gaming WIFI M-ATX Motherboard
MSI B650M Gaming WIFI M-ATX Motherboard - Image 2
MSI B650M Gaming WIFI M-ATX Motherboard - Image 3
MSI B650M Gaming WIFI M-ATX Motherboard - Image 4
MSI B650M Gaming WIFI M-ATX Motherboard - Image 5
Click to enlarge
    MSI B650M Gaming WIFI M-ATX Motherboard
    MSI B650M Gaming WIFI M-ATX Motherboard - Image 2
    MSI B650M Gaming WIFI M-ATX Motherboard - Image 3
    MSI B650M Gaming WIFI M-ATX Motherboard - Image 4
    MSI B650M Gaming WIFI M-ATX Motherboard - Image 5

    MSI B650M Gaming WIFI M-ATX Motherboard

    127 Items sold in last 7 days
    Brand:
    40 People watching this product now!
    SKU: B650M-GAMING-WIFI Categories: , ,

    Original price was: ₹21,999.00.Current price is: ₹10,850.00.

    Compare
    Add to wishlist
    Description

    Features:

    • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
    • Supports DDR5 Memory, up to 7800+(OC) MHz
    • Core Boost : With premium layout and digital power design to support more cores and provide better performance
    • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
    • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen4 M.2
    • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
    • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
    • High Quality PCB: 6-layer PCB made by 2oz thickened copper

    Specification:

    Model B650M GAMING WIFI
    Chipset AMD B650
    CPU Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
    Socket AM5
    Memory 2x DDR5, Maximum Memory Capacity 96GB
    Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 7800+ MHz
    • 1DPC 2R Max speed up to 6400+ MHz

    Supports Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Supports AMD EXPO™
    Onboard Graphics 1x HDMI™
    Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
    1x DisplayPort
    Support DP 1.4, maximum resolution of 4K 60Hz*
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
    Slot 1x PCI-E x16 slot
    Supports x16/x1
    • Supports x16 (For Ryzen™ 7000 Series processors)
    • Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
    • Supports x4 (For Ryzen™ 5 8500G processor)
    1x PCI-E x1 slot
    PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
    PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
    Storage 2x M.2
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
    M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
    4x SATA 6G
    • M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed
    RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
    Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
    USB 2x USB 2.0 (Rear)
    4x USB 2.0 (Front)
    3x USB 3.2 Gen1 Type A (Rear)
    1x USB 3.2 Gen1 Type C (Rear)
    4x USB 3.2 Gen1 Type A (Front)
    LAN Realtek® RTL8125BG 2.5Gbps LAN
    WIRELESS LAN & BLUETOOTH AMD Wi-Fi 6E
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX
    Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
    Supports 802.11 a/ b/ g/ n/ ac/ ax

    Supports Bluetooth® 5.3**

    * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
    ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
    Audio Realtek® ALC897 Codec
    7.1-Channel High Definition Audio
    Internal IO
    • 1x Power Connector(ATX_PWR)
    • 1x Power Connector(CPU_PWR)
    • 1x Front Type-C Quick Charge Connector(PD_PWR1)
    • 1x CPU Fan
    • 3x System Fan
    • 2x Front Panel (JFP)
    • 1x Chassis Intrusion (JCI)
    • 1x Front Audio (JAUD)
    • 2x Addressable V2 RGB LED connector (JARGB_V2)
    • 1x RGB LED connector(JRGB)
    • 1x TPM pin header(Support TPM 2.0)
    • 4x USB 2.0 ports
    • 4x USB 3.2 Gen1 Type A ports
    LED FEATURE 4x EZ Debug LED

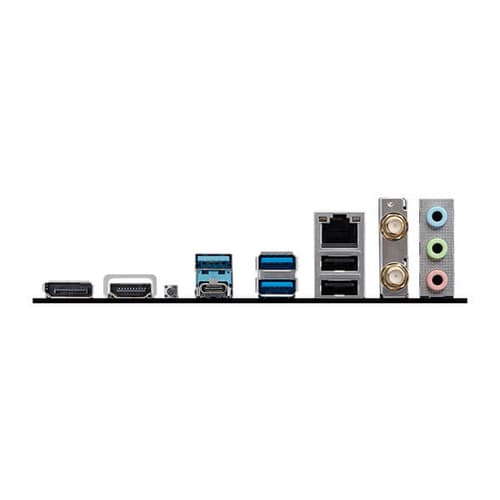

    BACK PANEL PORTS
    • DisplayPort
    • HDMI™
    • USB 3.2 Gen 1 5Gbps (Type-A)
    • 2.5G LAN
    • Wi-Fi / Bluetooth
    • Audio connectors
    • Flash BIOS Button
    • USB 3.2 Gen 1 5Gbps (Type-C)
    • USB 3.2 Gen 1 5Gbps (Type-A)
    • USB 2.0
    OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
    PCB Info mATX
    226mmx243.84mm
    Warranty 3 Years
    Note *** Features, Price, Specifications are subject to change without notice.



    Additional information
    Stock Status:In Stock
    ManufacturerMsi
    PlatformAMD
    ColorBlack
    Motherboar SocketAM5
    Motherboard ChipsetB650
    Motherboard Memory Speedup to 6400
    Max Memory Support96 GB
    Supported Memory TypeDDR5
    Channel SupportedDual Channel
    Memory FeatureSupports ECC UDIMM memory (non-ECC mode)
    Expansion Slots1x PCIe 4.0/ 3.0 x16 slot (PCI_E1), 2x PCIe 3.0 x1 slots
    Back Panel I/O PortsLAN port HDMI DVI-D Keyboard / Mouse USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A USB 2.0 Ports Audio Connectors
    Internal I/O Connector1x 24-pin ATX main power connector, 1x 4-pin ATX 12V power connector, 1x 4-pin CPU fan connector, 1x 4-pin system fan connectors, 1x Chassis Intrusion connector, 1x Clear CMOS jumper, 1x Front panel audio connector, 1x M.2 slots (M-Key), 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 1xTPM module connector, 2x System panel connectors, 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 4x SATA 6Gb/s connectors
    Graphics Port– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz, * Support for HDMI 2.1 version and HDCP 2.3., ** Support for native HDMI 2.1 TMDS compatible ports., 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
