MSI Pro Z790-S WIFI Motherboard
MSI Pro Z790-S WIFI Motherboard - Image 2
MSI Pro Z790-S WIFI Motherboard - Image 3
Click to enlarge
    MSI Pro Z790-S WIFI Motherboard
    MSI Pro Z790-S WIFI Motherboard - Image 2
    MSI Pro Z790-S WIFI Motherboard - Image 3

    MSI Pro Z790-S WIFI Motherboard

    141 Items sold in last 7 days
    Brand:
    41 People watching this product now!
    SKU: PRO-Z790-S-WIFI Categories: , ,

    Original price was: ₹33,999.00.Current price is: ₹18,650.00.

    Compare
    Add to wishlist
    Description

    Features:

    • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
    • Supports DDR5 Memory, Dual Channel DDR5 6600+MHz (OC)
    • Enhanced Power Design: 12+1+1 Duet Rail Power System with P-PAK, dual 8-pin CPU power connectors, Core Boost, Memory Boost
    • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
    • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
    • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
    • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
    • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
    • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

    Specification:

    Model PRO Z790-S WIFI
    Chipset INTEL Z790
    CPU SUPPORT Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
    LGA 1700
    Memory 4x DDR5, Maximum Memory Capacity 192GB
    Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 6600+ MHz
    • 1DPC 2R Max speed up to 6400+ MHz
    • 2DPC 1R Max speed up to 6000+ MHz
    • 2DPC 2R Max speed up to 5600+ MHz

    Supports Intel® XMP 3.0 OC
    Supports Dual-Controller Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Onboard Graphics 1x HDMI™
    Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
    1x DisplayPort
    Support DP 1.4, maximum resolution of 4K 60Hz*
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
    EXPANSION SLOT
    • 2x PCI-E x16 slot
    • 3x PCI-E x1 slot
    • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
    • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
    • PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset)
    • PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
    • PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
    Storage 2x M.2
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    4x SATA 6G
    RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    USB
    • 2x USB 2.0 (Rear)
    • 4x USB 2.0 (Front)
    • 4x USB 3.2 Gen1 Type A (Rear)
    • 4x USB 3.2 Gen1 Type A (Front)
    • 1x USB 3.2 Gen2x2 Type C (Rear)
    LAN Realtek® RTL8125BG 2.5Gbps LAN
    WIRELESS / BLUETOOTH Intel® Wi-Fi 6E
    The Wireless module is pre-installed in the M.2_WIFI1 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax

    Supports Bluetooth® 5.3, FIPS, FISMA

    * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
    ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
    Audio Realtek® ALC897 Codec
    7.1-Channel High Definition Audio
    Supports S/PDIF output
    Internal I/O
    • 1x Power Connector(ATX_PWR)
    • 2x Power Connector(CPU_PWR)
    • 1x CPU Fan
    • 1x Pump Fan
    • 4x System Fan
    • 2x Front Panel (JFP)
    • 1x Chassis Intrusion (JCI)
    • 1x Front Audio (JAUD)
    • 1x TBT connector (JTBT, supports RTD3)
    • 1x RGB LED connector(JRGB)
    • 1x TPM pin header(Support TPM 2.0)
    • 4x USB 2.0 ports
    • 4x USB 3.2 Gen1 Type A ports

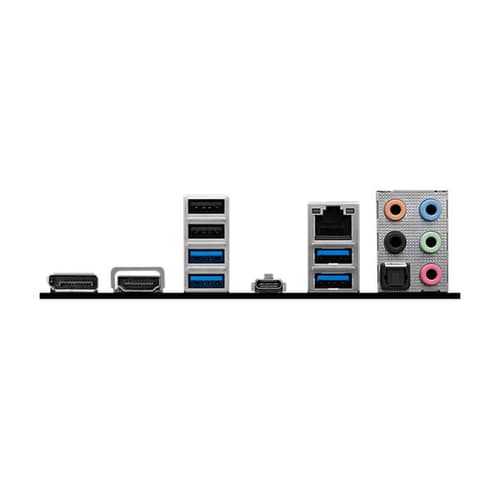

    BACK PANEL PORTS
    • DisplayPort
    • HDMI™
    • USB 2.0
    • USB 3.2 Gen 2×2 20Gbps (Type-C)
    • 2.5G LAN
    • Audio Connectors
    • USB 3.2 Gen 1 5Gbps (Type-A)
    • USB 3.2 Gen 1 5Gbps (Type-A)
    • S/PDIF-OUT
    OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
    PCB Dimension (W × L) ATX
    243.84mmx304.8mm
    Warranty 3 Years
    Note *** Features, Price, Specifications are subject to change without notice.
    Additional information
    Stock Status:In Stock
    ManufacturerMsi
    PlatformIntel
    ColorBlack
    Motherboar SocketLGA1700
    Motherboard ChipsetZ790
    Motherboard Memory Speedup to 5600
    Max Memory Support64 GB
    Supported Memory TypeDDR4
    Channel SupportedDual Channel
    Memory FeatureSupports non-ECC, un-buffered memory
    Graphics Port1x HDMI
    Form FactorATX
