-51%

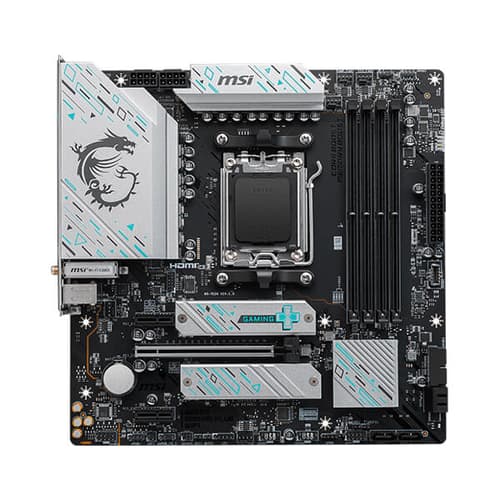

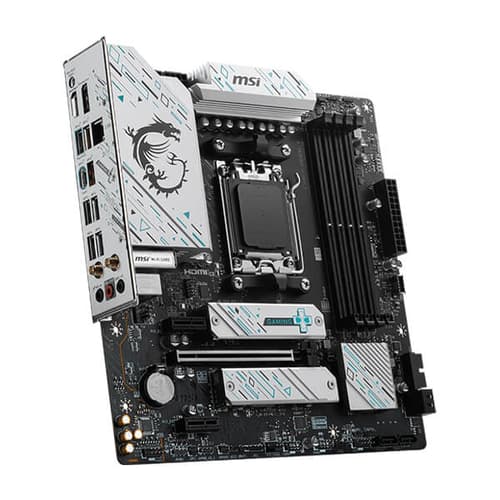

MSI B650M Gaming Plus WIFI M-ATX Motherboard
MSI B650M Gaming Plus WIFI M-ATX Motherboard - Image 2
MSI B650M Gaming Plus WIFI M-ATX Motherboard - Image 3
Click to enlarge
    MSI B650M Gaming Plus WIFI M-ATX Motherboard
    MSI B650M Gaming Plus WIFI M-ATX Motherboard - Image 2
    MSI B650M Gaming Plus WIFI M-ATX Motherboard - Image 3

    MSI B650M Gaming Plus WIFI M-ATX Motherboard

    229 Items sold in last 7 days
    Brand:
    51 People watching this product now!
    SKU: B650M-GAMING-PLUS-WIFI Categories: , ,

    Original price was: ₹30,999.00.Current price is: ₹15,300.00.

    Compare
    Add to wishlist
    Description

    Features:

    • Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
    • Supports DDR5 Memory, up to 7200+(OC) MHz
    • Enhanced Power Design: 10+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
    • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen4 M.2, USB 3.2 Gen 2
    • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
    • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
    • High Quality PCB: 6-layer PCB made by 2oz thickened copper

    Specifications:

    Model B650M GAMING PLUS WIFI
    Chipset AMD B650
    CPU Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
    Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
    Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
    Supports Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Supports AMD EXPO
    Max. overclocking frequency:

    • 1DPC 1R Max speed up to 7200+ MHz
    • 1DPC 2R Max speed up to 6000+ MHz
    • 2DPC 1R Max speed up to 6000+ MHz
    • 2DPC 2R Max speed up to 5400+ MHz
    Onboard Graphics
    • 1x HDMI

    Support HDMI 2.1, maximum resolution of 4K 60Hz*

    • 1x DisplayPort

    Support DP 1.4, maximum resolution of 4K 60Hz*
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
    Slot 1x PCI-E x16 slot

    • Supports x16 (For Ryzen 7000 Series processors)
    • Supports x8 (For Ryzen 7 8700G and Ryzen 5 8600G processors)
    • Supports x4 (For Ryzen 5 8500G processor)

    2x PCI-E x1 slot
    PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
    PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
    PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
    Storage 2x M.2
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    4x SATA 6G

    • M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installed
    RAID
    • Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
    • Supports RAID 0, RAID 1 for M.2 NVMe storage devices
    USB
    • 4x USB 2.0 (Front)
    • 4x USB 3.2 Gen1 Type A (Rear)
    • 2x USB 3.2 Gen1 Type A (Front)
    • 3x USB 3.2 Gen2 Type A (Rear)
    • 1x USB 3.2 Gen2 Type C (Rear)
    • 1x USB 3.2 Gen2 Type C (Front)
    LAN Realtek RTL8125BG 2.5Gbps LAN
    WIRELESS LAN & BLUETOOTH AMD Wi-Fi 6E
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX
    Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
    Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth 5.3**

    * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
    ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
    Audio Realtek ALC897 Codec
    7.1-Channel High Definition Audio
    Internal IO
    • 1x Power Connector(ATX_PWR)
    • 2x Power Connector(CPU_PWR)
    • 1x CPU Fan
    • 1x Pump Fan
    • 3x System Fan
    • 2x Front Panel (JFP)
    • 1x Chassis Intrusion (JCI)
    • 1x Front Audio (JAUD)
    • 1x Tuning Controller connector(JDASH)
    • 2x Addressable V2 RGB LED connector (JARGB_V2)
    • 2x RGB LED connector(JRGB)
    • 1x TPM pin header(Support TPM 2.0)
    • 4x USB 2.0 ports
    • 2x USB 3.2 Gen1 Type A ports
    • 1x USB 3.2 Gen2 Type C ports
    LED FEATURE 4x EZ Debug LED

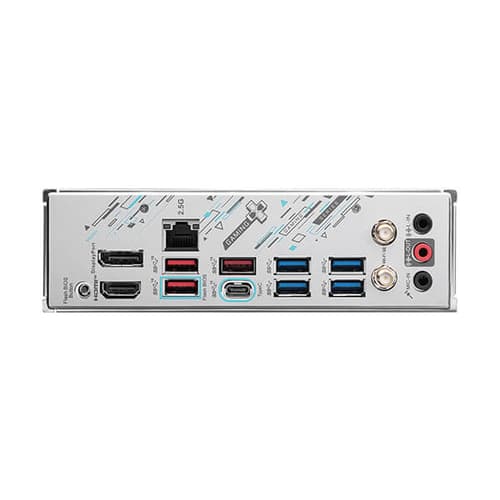

    BACK PANEL PORTS
    • DisplayPort
    • 2.5G LAN
    • USB 3.2 Gen 2 10Gbps (Type-A)
    • USB 3.2 Gen 1 5Gbps (Type-A)
    • Wi-Fi / Bluetooth
    • Flash BIOS Button
    • HDMI™
    • USB 3.2 Gen 2 10Gbps (Type-A)
    • USB 3.2 Gen 2 10Gbps (Type-C)
    • Audio connectors
    OPERATING SYSTEM Support for Windows 11 64-bit, Windows 10 64-bit
    PCB Info mATX
    243.84mmx243.84mm
    Warranty 3 Years
    Note Image used for representation purpose only

    Features, Price, Specifications are subject to change without notice.
    Additional information
    Stock Status:In Stock
    ManufacturerMsi
    PlatformAMD
    ColorBlack
    Motherboar SocketAM5
    Motherboard ChipsetB650
    Motherboard Memory Speedup to 6400
    Max Memory Support256 GB
    Supported Memory TypeDDR5
    Channel SupportedDual Channel
    Memory FeatureSupports ECC UDIMM memory (non-ECC mode)
    Expansion Slots1x PCIe 4.0/ 3.0 x16 slot (PCI_E1), 2x PCIe 3.0 x1 slots
    Back Panel I/O PortsLAN port HDMI DVI-D Keyboard / Mouse USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A USB 2.0 Ports Audio Connectors
    Internal I/O Connector1x 24-pin ATX main power connector, 1x 4-pin ATX 12V power connector, 1x 4-pin CPU fan connector, 1x 4-pin system fan connectors, 1x Chassis Intrusion connector, 1x Clear CMOS jumper, 1x Front panel audio connector, 1x M.2 slots (M-Key), 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 1xTPM module connector, 2x System panel connectors, 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 4x SATA 6Gb/s connectors
    Graphics Port– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz, * Support for HDMI 2.1 version and HDCP 2.3., ** Support for native HDMI 2.1 TMDS compatible ports., 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
