-59%

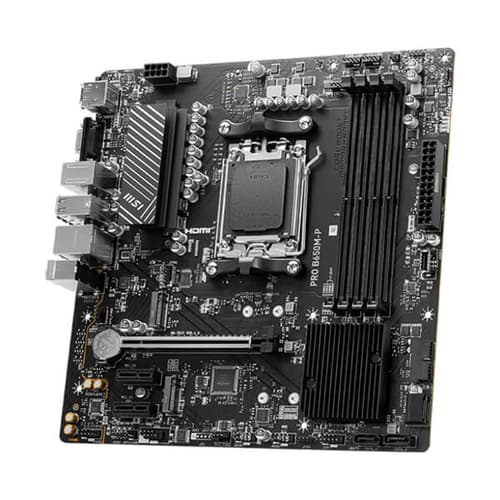

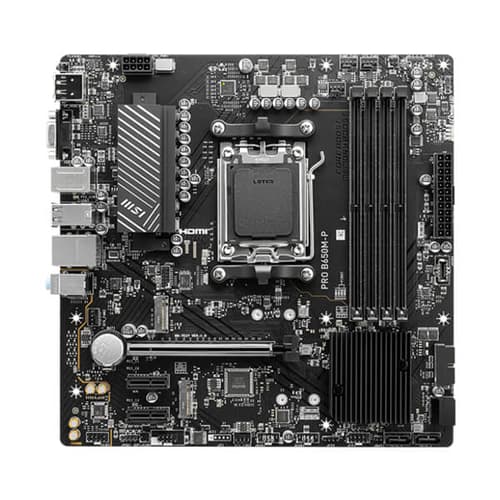

MSI Pro B650M-P M-ATX Motherboard
MSI Pro B650M-P M-ATX Motherboard - Image 2
MSI Pro B650M-P M-ATX Motherboard - Image 3
Click to enlarge
    MSI Pro B650M-P M-ATX Motherboard
    MSI Pro B650M-P M-ATX Motherboard - Image 2
    MSI Pro B650M-P M-ATX Motherboard - Image 3

    MSI Pro B650M-P M-ATX Motherboard

    63 Items sold in last 7 days
    Brand:
    12 People watching this product now!
    SKU: PRO-B650M-P Categories: , ,

    Original price was: ₹25,999.00.Current price is: ₹10,650.00.

    Compare
    Add to wishlist
    Description

    Features:

    • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
    • Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC)
    • Core Boost : With premium layout and digital power design to support more cores and provide better performance
    • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
    • High Quality PCB: 6-layer PCB made by 2oz thickened copper
    • Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2
    • 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
    • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
    • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

    Specifications:

    Chipset AMD B650
    CPU SUPPORT Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
    Socket AM5
    Memory 4x DDR5, Maximum Memory Capacity 192GB
    Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 6000+ MHz
    • 1DPC 2R Max speed up to 6000+ MHz
    • 2DPC 1R Max speed up to 6000+ MHz
    • 2DPC 2R Max speed up to 6000+ MHz

    Supports Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Supports AMD EXPO
    Onboard Graphics 1x HDMI™
    Support HDMITM 2.1, maximum resolution of 4K 60Hz*
    1x DisplayPort
    Supports DP 1.4, maximum resolution of 4K 60Hz*
    1x VGA
    Support VGA, maximum resolution of 1920×1200 60Hz
    EXPANSION SLOT 1x PCI-E x16 slot
    2x PCI-E x1 slot
    PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
    PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
    PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
    Storage 2x M.2
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    4x SATA 6G
    RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
    USB 4x USB 2.0 (Rear)
    4x USB 2.0 (Front)
    2x USB 3.2 Gen1 Type A (Rear)
    2x USB 3.2 Gen1 Type A (Front)
    2x USB 3.2 Gen2 Type A (Rear)
    1x USB 3.2 Gen2 Type C (Front)
    LAN Realtek® 8125BG 2.5G LAN
    Audio  Realtek® ALC897 Codec
    7.1-Channel High Definition Audio
    Internal I/O 1x Power Connector(ATX_PWR)
    1x Power Connector(CPU_PWR)
    1x CPU Fan
    1x Pump Fan
    3x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Com Port (JCOM)
    2x Addressable V2 RGB LED connector (JARGB_V2)
    2x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    2x USB 3.2 Gen1 Type A ports
    1x USB 3.2 Gen2 Type C ports
    LED FEATURE 4x EZ Debug LED
    BACK PANEL PORTS

    DisplayPort
    VGA
    Keyboard / Mouse
    USB 2.0
    2.5G LAN
    Audio connectors
    Flash BIOS Button
    HDMI™
    USB 2.0
    USB 3.2 Gen 1 5Gbps (Type-A)
    USB 3.2 Gen 2 10Gbps (Type-A)
    OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
    PCB Dimension mATX
    243.84mmx243.84mm
    Warranty 3 Years
    Note *** Features, Price, Specifications are subject to change without notice.
    Additional information
    Form FactorMicro-ATX
    PlatformAMD
    Stock Status:In Stock
    ColorBlack
    ManufacturerMsi
    Motherboar SocketAM5
    Motherboard ChipsetB650
    Motherboard Memory Speedup to 7800+
    Supported Memory TypeDDR5
    Max Memory Support128 GB
    Channel SupportedDual Channel
    Memory FeatureSupports ECC UDIMM memory (non-ECC mode), Supports non-ECC UDIMM memory, Supports un-buffered memory
    Expansion Slots1x PCIe 3.0 x16 slot (from AMD processor), 4000G and 3000 processors Supports x8 speed with Ryzen 3000G processors, 5000G, Supports x16 speed with Ryzen 5000, Supports x4 speed with AMD Athlon with Radeon Graphics processors 1x PCIe 3.0 x1 slot
    Back Panel I/O PortsLAN port HDMI DVI-D Keyboard / Mouse USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A USB 2.0 Ports Audio Connectors
    Internal I/O Connector1x 24-pin ATX main power connector, 1x 4-pin ATX 12V power connector, 1x 4-pin CPU fan connector, 1x 4-pin system fan connectors, 1x Chassis Intrusion connector, 1x Clear CMOS jumper, 1x Front panel audio connector, 1x M.2 slots (M-Key), 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 1xTPM module connector, 2x System panel connectors, 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 4x SATA 6Gb/s connectors
