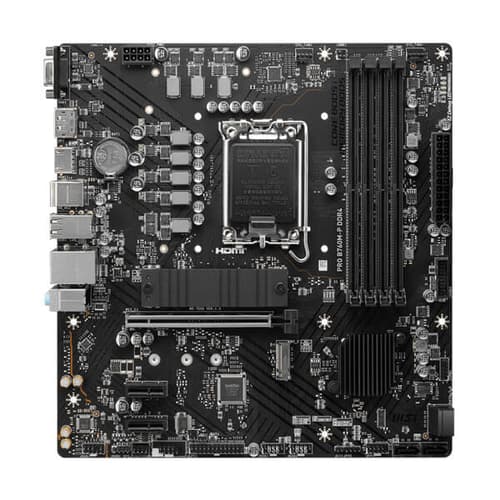

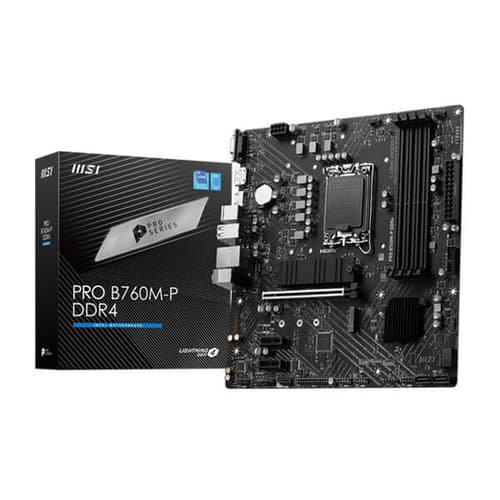

MSI Pro B760M-P DDR4 M-ATX Motherboard
MSI Pro B760M-P DDR4 M-ATX Motherboard - Image 2
MSI Pro B760M-P DDR4 M-ATX Motherboard - Image 3
MSI Pro B760M-P DDR4 M-ATX Motherboard
Click to enlarge
    MSI Pro B760M-P DDR4 M-ATX Motherboard
    MSI Pro B760M-P DDR4 M-ATX Motherboard - Image 2
    MSI Pro B760M-P DDR4 M-ATX Motherboard - Image 3
    MSI Pro B760M-P DDR4 M-ATX Motherboard

    MSI Pro B760M-P DDR4 M-ATX Motherboard

    137 Items sold in last 7 days
    Brand:
    12 People watching this product now!
    SKU: PRO-B760M-P-DDR4 Categories: , ,

    Original price was: ₹22,099.00.Current price is: ₹11,405.00.

    Compare
    Add to wishlist
    Description

    Features:

    • Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
    • Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)
    • Core Boost : With premium layout and digital power design to support more cores and provide better performance
    • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
    • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
    • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
    • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

    Specifications:

    Chipset INTEL B760
    CPU Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
    LGA 1700
    Memory 4x DDR4, Maximum Memory Capacity 128GB
    Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 4800+ MHz
    • 1DPC 2R Max speed up to 4600+ MHz
    • 2DPC 1R Max speed up to 4400+ MHz
    • 2DPC 2R Max speed up to 4000+ MHz

    Supports Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Supports Intel Extreme Memory Profile (XMP)
    Onboard Graphics 1x HDMI
    Support HDMI 1.4, maximum resolution of 4K 30Hz*
    1x DisplayPort
    Support DP 1.4, maximum resolution of 4K 60Hz*
    1x VGA
    Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
    Slot 1x PCI-E x16 slot
    2x PCI-E x1 slot
    PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
    PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
    PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
    Audio Realtek ALC897 Codec
    7.1-Channel High Definition Audio
    Storage 2x M.2
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    4x SATA 6G
    * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
    RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    USB 4x USB 2.0 (Rear)
    4x USB 2.0 (Front)
    1x USB 5Gbps Type A (Rear)
    2x USB 5Gbps Type A (Front)
    1x USB 10Gbps Type C (Rear)
    LAN Realtek RTL8111H Gigabit LAN
    Internal IO 1x Power Connector(ATX_PWR)
    1x Power Connector(CPU_PWR)
    1x CPU Fan
    2x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Printer Port (JLPT)
    1x Com Port (JCOM)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    2x USB 5Gbps Type A ports
    LED FEATURE 4x EZ Debug LED
    BACK PANEL PORTS
    • VGA
    • DisplayPort
    • HDMIâ„¢
    • Keyboard / Mouse
    • USB 2.0
    • LAN port
    • Audio Connectors
    • USB 3.2 Gen 1 5Gbps (Type-A)
    • USB 3.2 Gen 2 10Gbps (Type-C)
    OPERATING SYSTEM Support for Windows 11 64-bit, Windows 10 64-bit
    PCB Info mATX
    243.84mmx243.84mm
    nvidia-logo
    Warranty 3 Years
    Note Features, Price, Specifications are subject to change without notice.

    Images used for representation purpose only
    Additional information
    ManufacturerMsi
    PlatformIntel
    ColorBlack
    Motherboar SocketLGA1700
    Motherboard ChipsetB760
    Max Memory Support128 GB
    Supported Memory TypeDDR4
    Channel SupportedDual Channel
    Memory FeatureSupports DDR5 ECC/non-ECC, un-buffered memory, Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
    Graphics Port1x HDMI, 1x VGA
    Expansion Slots– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module, – 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode, – 15μ Gold Contact in VGA PCIe Slot (PCIE1), – Supports AMD CrossFireâ„¢, CPU: – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode Chipset:
    Back Panel I/O Ports1 x BIOS Flashback Button, 1 x HDMI Port, 1 x Line Out Jack (Gold Audio Jack), 1 x Microphone Input Jack (Gold Audio Jack), 1 x Optical SPDIF Out Port, 1 x RJ-45 LAN Port, 2 x Antenna Ports, 2 x USB4 Type-C Ports (40 Gb/s), 4 x USB 3.2 Gen1 Type-A Ports, x USB 2.0 Ports
    Internal I/O Connector1 x Power LED and Speaker Header, 1 x RGB LED Header, 1 x SPI TPM Header, 1 x Thermistor Cable Header, 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control), 3 x Addressable LED Headers, 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
    Form FactorMicro-ATX
