-25%

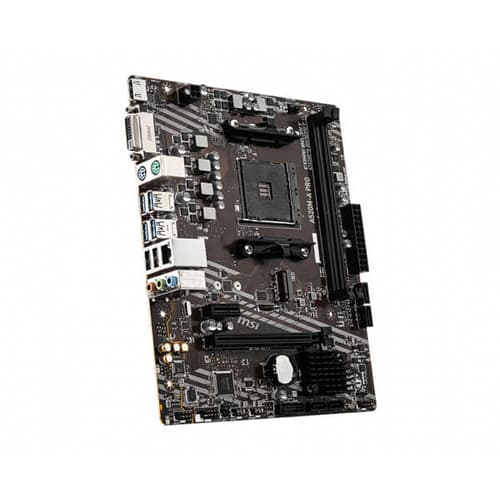

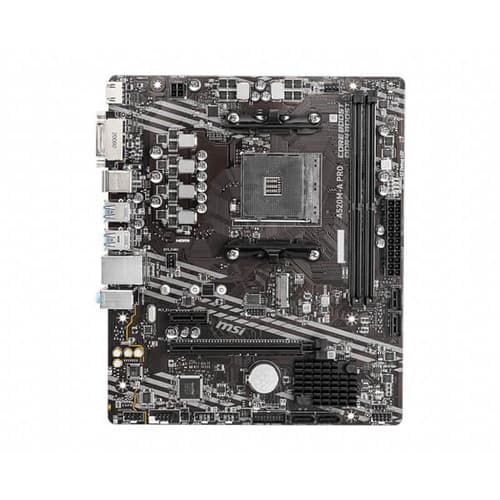

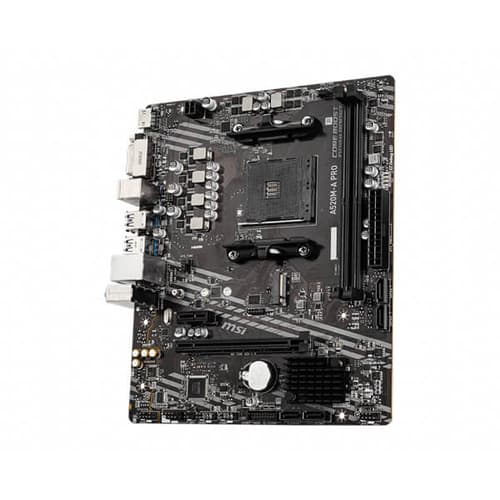

MSI A520M-A PRO Motherboard
MSI A520M-A PRO Motherboard - Image 2
MSI A520M-A PRO Motherboard - Image 3
MSI A520M-A PRO Motherboard - Image 4
Click to enlarge
    MSI A520M-A PRO Motherboard
    MSI A520M-A PRO Motherboard - Image 2
    MSI A520M-A PRO Motherboard - Image 3
    MSI A520M-A PRO Motherboard - Image 4

    MSI A520M-A PRO Motherboard

    150 Items sold in last 7 days
    Brand:
    25 People watching this product now!
    SKU: A520M-A-PRO Categories: , ,

    Original price was: ₹7,200.00.Current price is: ₹5,400.00.

    Compare
    Add to wishlist
    Description

    Features:

    • Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors
    • Supports DDR4 Memory, up to 4600(OC) MHz
    • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
    • Core Boost: With premium layout and digital power design to support more cores and provide better performance.
    • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
    • 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability.
    • Audio Boost: Reward your ears with studio grade sound quality
    • Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.

    PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

    Specifications:

    CPU Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors
    Chipset AMD A520 Chipset
    Memory
    • 2x DDR4 memory slots, support up to 64GB
    • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
    • Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
    • 1DPC 1R max speed 4600 MHz
    • 1DPC 2R max speed 3866 MHz
    • Dual channel memory architecture
    • Supports non-ECC UDIMM memory
    • Supports ECC UDIMM memory (non-ECC mode)
    • Supports un-buffered memory
    Expansion Slot
    • 1x PCIe 3.0 x16 slot (from AMD processor)
    • Supports x16 speed with Ryzen 5000, 5000G, 4000G and 3000 processors
    • Supports x8 speed with Ryzen 3000G processors
    • Supports x4 speed with AMD Athlon with Radeon Graphics processors
    • 1x PCIe 3.0 x1 slot
    Onboard Graphics
    • 1x HDMI 2.1 port, supports a maximum resolution of 4096×2160 60Hz12
    • Support HDCP 1.4 & 2.3
    • 1x DVI-D port, supports a maximum resolution of 1920×1200@60Hz1
    • Maximum shared memory of 16 GB
    Storage AMD A520 Chipset

    • 4x SATA 6Gb/s ports
    • 1x M.2 slot (Key M) (from AMD Processor)
    • Supports PCIe 3.0 x4 & SATA 6G/s with Ryzen 5000, 5000G, 4000G, 3000 and 3000G processors
    • Supports SATA 6Gb/s with Athlon with Radeon Vega Graphics processors
    • Supports 2242/ 2260/ 2280 storage devices
    RAID
    • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
    USB AMD A520 Chipset

    • 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
    • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

    AMD Processor

    • 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
    Audio Realtek ALC892/ALC897 Codec

    • 7.1-Channel High Definition Audio
    LAN 1x Realtek RTL8111H Gigabit LAN controller
    Internal connectors
    • 1x 24-pin ATX main power connector
    • 1x 4-pin ATX 12V power connector
    • 4x SATA 6Gb/s connectors
    • 1x M.2 slots (M-Key)
    • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
    • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    • 1x 4-pin CPU fan connector
    • 1x 4-pin system fan connectors
    • 1x Front panel audio connector
    • 2x System panel connectors
    • 1x Chassis Intrusion connector
    • 1xTPM module connector
    • 1x Clear CMOS jumper

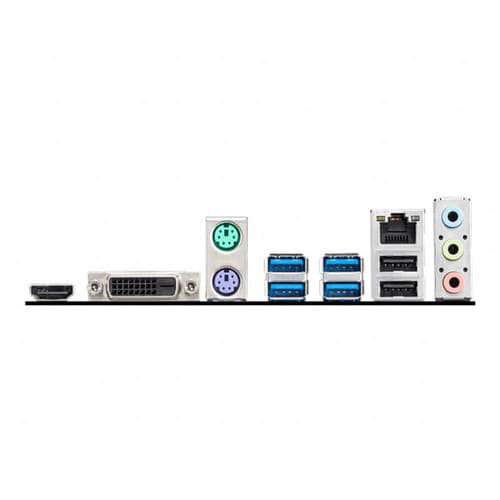

    Back panel ports
    • LAN port
    • HDMI
    • DVI-D
    • Keyboard / Mouse
    • USB 3.2 Gen 1 5Gbps Type-A
    • USB 3.2 Gen 1 5Gbps Type-A
    • USB 2.0 Ports
    • Audio Connectors
    Dimensions
    • Micro-ATX Form Factor
    • 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
     Warranty  3 Years
    Note *** Features, Price, Specifications are subject to change without notice.
    Additional information
    Stock Status:In Stock
    ManufacturerMsi
    PlatformAMD
    ColorBlack
    Motherboar SocketAM4
    Motherboard ChipsetA520
    Motherboard Memory Speedup to 4600+
    Supported Memory TypeDDR4
    Channel SupportedDual Channel
    Memory FeatureSupports ECC UDIMM memory (non-ECC mode), Supports non-ECC UDIMM memory, Supports un-buffered memory
    Expansion Slots1x PCIe 3.0 x16 slot (from AMD processor), 4000G and 3000 processors Supports x8 speed with Ryzen 3000G processors, 5000G, Supports x16 speed with Ryzen 5000, Supports x4 speed with AMD Athlon with Radeon Graphics processors 1x PCIe 3.0 x1 slot
    Back Panel I/O PortsLAN port HDMI DVI-D Keyboard / Mouse USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A USB 2.0 Ports Audio Connectors
    Internal I/O Connector1x 24-pin ATX main power connector, 1x 4-pin ATX 12V power connector, 1x 4-pin CPU fan connector, 1x 4-pin system fan connectors, 1x Chassis Intrusion connector, 1x Clear CMOS jumper, 1x Front panel audio connector, 1x M.2 slots (M-Key), 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 1xTPM module connector, 2x System panel connectors, 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 4x SATA 6Gb/s connectors
    Max Memory Support64 GB
