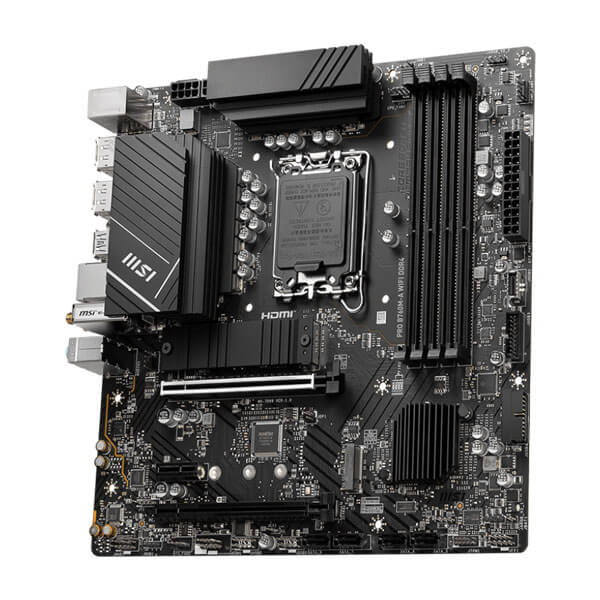

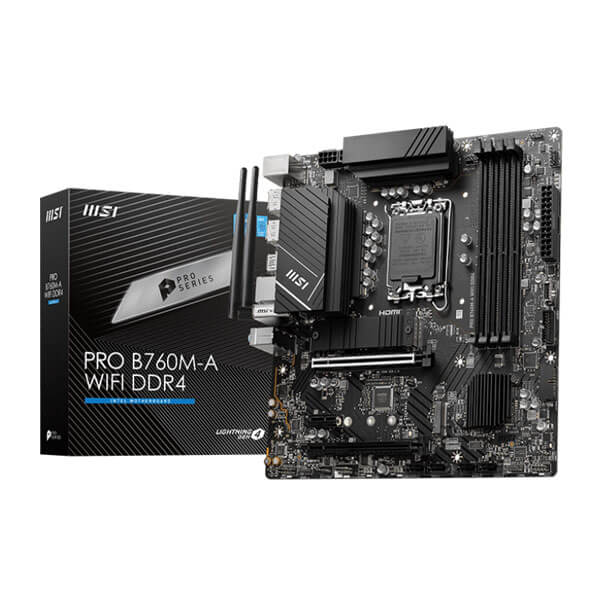

MSI Pro B760M-A WIFI DDR4 Motherboard
MSI Pro B760M-A WIFI DDR4 Motherboard - Image 2
MSI Pro B760M-A WIFI DDR4 Motherboard - Image 3
Click to enlarge
    MSI Pro B760M-A WIFI DDR4 Motherboard
    MSI Pro B760M-A WIFI DDR4 Motherboard - Image 2
    MSI Pro B760M-A WIFI DDR4 Motherboard - Image 3

    MSI Pro B760M-A WIFI DDR4 Motherboard

    87 Items sold in last 7 days
    Brand:
    48 People watching this product now!
    SKU: PRO-B760M-A-WIFI-DDR4 Categories: , ,

    Original price was: ₹29,999.00.Current price is: ₹14,975.00.

    Compare
    Add to wishlist
    Description

    Features:

    • Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
    • Supports DDR4 Memory, Dual Channel DDR4 5333+MHz (OC)
    • Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
    • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
    • High Quality PCB: 6-layer PCB made by 2oz thickened copper
    • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
    • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
    • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
    • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

    Specification:

    Chipset INTEL B760
    CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
    LGA 1700
    Memory 4x DDR4, Maximum Memory Capacity 128GB
    Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 5333+ MHz
    • 1DPC 2R Max speed up to 4800+ MHz
    • 2DPC 1R Max speed up to 4400+ MHz
    • 2DPC 2R Max speed up to 4000+ MHz

    Supports Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Supports Intel® Extreme Memory Profile (XMP)
    Onboard Graphics 2x HDMI
    Support HDMI 2.1, maximum resolution of 4K 60Hz*
    2x DisplayPort
    Support DP 1.4, maximum resolution of 4K 60Hz*
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
    Slot 2x PCI-E x16 slot
    1x PCI-E x1 slot
    PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
    PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
    PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
    Audio Realtek ALC897 Codec
    7.1-Channel High Definition Audio
    Storage 2x M.2
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    4x SATA 6G
    * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
    RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    USB 2x USB 2.0 (Rear)
    4x USB 2.0 (Front)
    2x USB 5Gbps Type A (Rear)
    4x USB 5Gbps Type A (Front)
    1x USB 5Gbps Type C (Front)
    2x USB 10Gbps Type A (Rear)
    LAN Realtek RTL8125BG 2.5G LAN
    Internal IO 1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x CPU Fan
    1x Pump Fan
    2x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Com Port (JCOM)
    2x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    4x USB 5Gbps Type A ports
    1x USB 5Gbps Type C ports
    WIRELESS LAN & BLUETOOTH Intel Wi-Fi 6E
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax

    Supports Bluetooth® 5.3, FIPS, FISMA

    * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
    ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
    LED FEATURE 4x EZ Debug LED

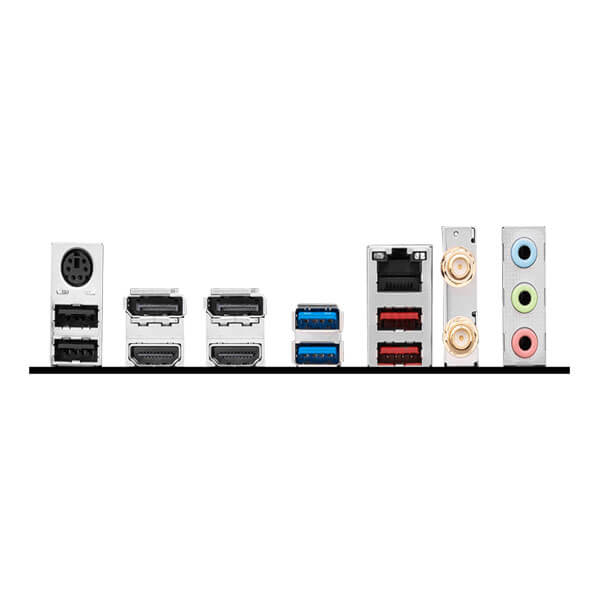

    BACK PANEL PORTS
    • Keyboard / Mouse
    • DisplayPort
    • USB 3.2 Gen 1 5Gbps (Type-A)
    • 2.5G LAN
    • Wi-Fi / Bluetooth
    • Audio Connectors
    • USB 2.0
    • HDMI™
    • USB 3.2 Gen 2 10Gbps (Type-A)
    OPERATING SYSTEM Support for Windows 11 64-bit, Windows 10 64-bit
    PCB Info mATX
    243.84mmx243.84mm
    Warranty 3 Years
    Note *** Features, Price, Specifications are subject to change without notice.



    Additional information
    ManufacturerMsi
    PlatformIntel
    Motherboar SocketLGA1700
    Motherboard ChipsetB760
    Motherboard Memory Speedup to 5333
    Max Memory Support128 GB
    Form FactorMicro-ATX
    Supported Memory TypeDDR5
