-45%

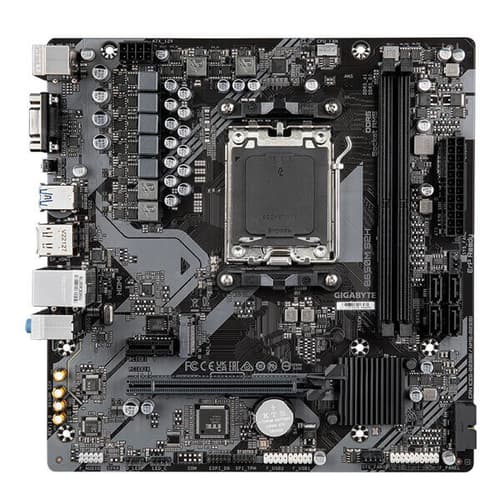

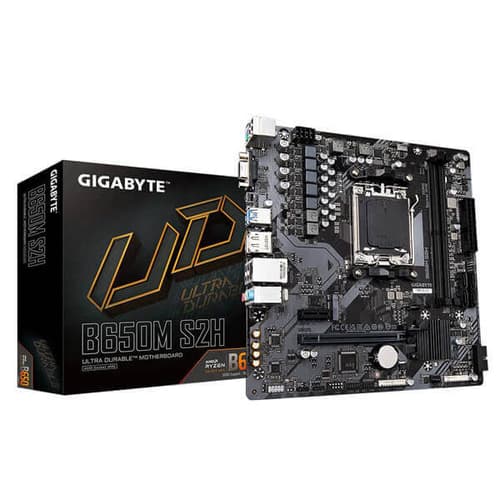

Gigabyte B650M S2H M-ATX Motherboard
Gigabyte B650M S2H M-ATX Motherboard - Image 2
Gigabyte B650M S2H M-ATX Motherboard - Image 3
Click to enlarge
    Gigabyte B650M S2H M-ATX Motherboard
    Gigabyte B650M S2H M-ATX Motherboard - Image 2
    Gigabyte B650M S2H M-ATX Motherboard - Image 3

    Gigabyte B650M S2H M-ATX Motherboard

    107 Items sold in last 7 days
    Brand:
    41 People watching this product now!
    SKU: B650M-S2H Categories: , ,

    Original price was: ₹14,950.00.Current price is: ₹8,270.00.

    Compare
    Add to wishlist
    Description

    Features:

    • AMD Socket AM5：Supports AMD Ryzen 7000/ Ryzen 8000/ Ryzen 9000 Series Processors
    • Unparalleled Performance：5+2+2 Phases Digital VRM Solution
    • Dual Channel DDR5：2*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
    • SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
    • EZ-Latch：PCIe x16 Slot with Quick Release Design
    • Fast Networks：GbE LAN
    • Extended Connectivity：DP, HDMI, D-Sub
    • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
    • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

    Specifications:

    Model B650M S2H
    CPU AMD Socket AM5, support for:
    AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
    (Go to GIGABYTE’s website for the latest CPU support list.)
    Chipset AMD B650
    Memory Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
    2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for AMD EXtended Profiles for Overclocking (AMD EXPOâ„¢) and Extreme Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
    Onboard Graphics Integrated Graphics Processor:
    – 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
    – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz

    * Support for DisplayPort 1.4 version.

    – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support for native HDMI 2.1 TMDS compatible ports.

    (Graphics specifications may vary depending on CPU support.)
    Support for up to 3 displays at the same time
    Audio Realtek® Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel

    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
    LAN Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
    Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    – AMD Ryzenâ„¢ 7000 Series Processors/ Ryzenâ„¢ 9000 Series Processors support PCIe 4.0 x16 mode
    – AMD Ryzenâ„¢ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
    – AMD Ryzenâ„¢ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
    * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    Chipset:
    – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1(PCIEX1)
    Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
    – AMD Ryzenâ„¢ 7000 Series Processors/ Ryzenâ„¢ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs
    – AMD Ryzenâ„¢ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    – AMD Ryzenâ„¢ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
    4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, and RAID 10 support for SATA storage devices
    USB CPU:
    – 2 x USB 3.2 Gen 1 ports on the back panel
    – 1 x USB 2.0/1.1 port on the back panel
    Chipset:
    – 2 x USB 3.2 Gen 1 ports available through the internal USB header
    – 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
    Internal I/O Connectors
    • 1 x 24-pin ATX main power connector
    • 1 x 8-pin ATX 12V power connector
    • 1 x CPU fan header
    • 2 x system fan headers
    • 1 x addressable LED strip header
    • 1 x RGB LED strip header
    • 1 x M.2 Socket 3 connector
    • 4 x SATA 6Gb/s connectors
    • 1 x front panel header
    • 1 x front panel audio header
    • 1 x USB 3.2 Gen 1 header
    • 2 x USB 2.0/1.1 headers
    • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
    • 1 x Clear CMOS jumper

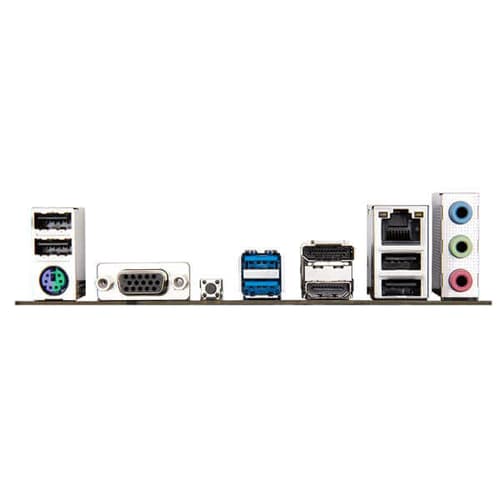

    Back Panel Connectors
    • 4 x USB 2.0/1.1 ports
    • 1 x PS/2 keyboard/mouse port
    • 1 x D-Sub port
    • 1 x Q-Flash Plus button
    • 2 x USB 3.2 Gen 1 ports
    • 1 x DisplayPort
    • 1 x HDMI port
    • 1 x RJ-45 port
    • 3 x audio jacks
    I/O Controller iTE I/O Controller Chip
    H/W Monitoring Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control

    * Whether the fan speed control function is supported will depend on the fan you install.
    BIOS 1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Unique Features Support for GIGABYTE Control Center (GCC)

    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    Support for Q-Flash
    Support for Q-Flash Plus
    Bundled Software Norton Internet Security (OEM version)
    LAN bandwidth management software
    Operating System Support for Windows 11 64-bit
    Support for Windows 10 64-bit
    Form Factor Micro ATX Form Factor; 23.0cm x 22.5cm
    Warranty 3 Years
    Note *** Features, Price, Specifications are subject to change without notice.



    Additional information
    Form FactorATX
    Stock Status:In Stock
    PlatformAMD
    ColorBlack
    Motherboar SocketAM5
    Motherboard ChipsetB650
    Motherboard Memory Speedup to 6800+
    Supported Memory TypeDDR5
    Max Memory Support128 GB
    Channel SupportedDual Channel
    Memory FeatureSupports ECC UDIMM memory (non-ECC mode), Supports non-ECC UDIMM memory, Supports un-buffered memory
    Expansion Slots1x PCIe 3.0 x16 slot (from AMD processor), 4000G and 3000 processors Supports x8 speed with Ryzen 3000G processors, 5000G, Supports x16 speed with Ryzen 5000, Supports x4 speed with AMD Athlon with Radeon Graphics processors 1x PCIe 3.0 x1 slot
    Back Panel I/O PortsLAN port HDMI DVI-D Keyboard / Mouse USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A USB 2.0 Ports Audio Connectors
    Internal I/O Connector1x 24-pin ATX main power connector, 1x 4-pin ATX 12V power connector, 1x 4-pin CPU fan connector, 1x 4-pin system fan connectors, 1x Chassis Intrusion connector, 1x Clear CMOS jumper, 1x Front panel audio connector, 1x M.2 slots (M-Key), 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 1xTPM module connector, 2x System panel connectors, 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 4x SATA 6Gb/s connectors
