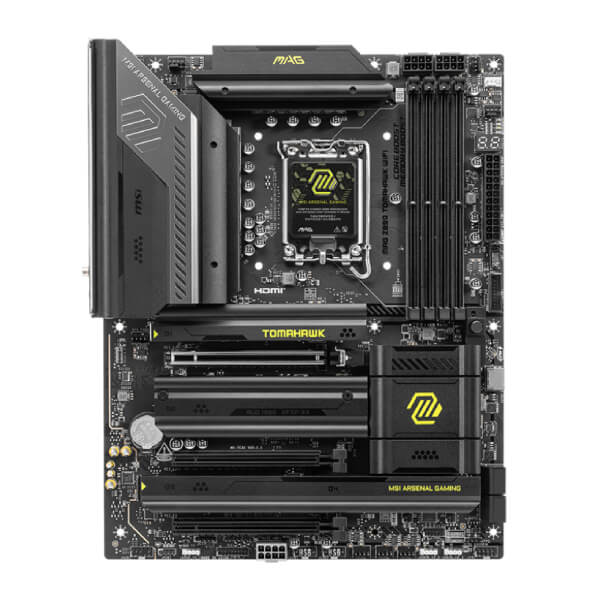

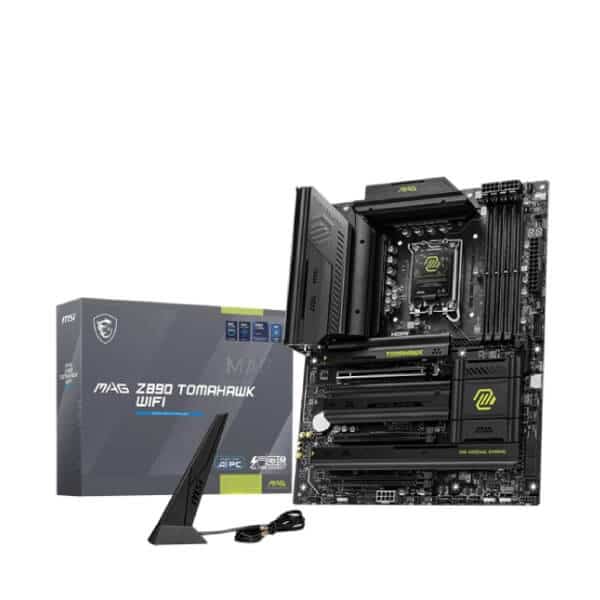

MSI Mag Z890 Tomahawk WiFi Motherboard
MSI Mag Z890 Tomahawk WiFi Motherboard - Image 2
MSI Mag Z890 Tomahawk WiFi Motherboard - Image 3
Click to enlarge
    MSI Mag Z890 Tomahawk WiFi Motherboard
    MSI Mag Z890 Tomahawk WiFi Motherboard - Image 2
    MSI Mag Z890 Tomahawk WiFi Motherboard - Image 3

    MSI Mag Z890 Tomahawk WiFi Motherboard

    208 Items sold in last 7 days
    Brand:
    51 People watching this product now!
    SKU: MAG-Z890-TOMAHAWK-WIFI Categories: , ,

    Original price was: ₹60,999.00.Current price is: ₹32,100.00.

    Compare
    Add to wishlist
    Description

    Features:

    MAG Z890 TOMAHAWK WIFI

    • Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket
    • Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
    • Ultra Performance: 16+1+1+1 Duet Rail Power System 90A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
    • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
    • EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
    • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
    • Ultra Connect: Thunderbolt™ 4 port, Intel® Killer™ 5G LAN & Intel Killer Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
    • Audio Boost 4: Reward your ears with studio grade sound quality for the most immersive gaming experience

    Specification:

    Model MAG Z890 TOMAHAWK WIFI
    Chipset INTEL Z890
    CPU Supports Intel® Core™ Ultra Processors (Series 2)
    LGA 1851
    Memory
    • 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
      Memory Support 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s
      Max. overclocking frequency:
    • 1DPC 1R Max speed up to 9200+ MT/s
    • 1DPC 2R Max speed up to 7200+ MT/s
    • 2DPC 1R Max speed up to 4800+ MT/s
    • 2DPC 2R Max speed up to 4800+ MT/s
    • Supports Intel POR Speed and JEDEC Speed
    • Supports Memory Overclocking and Intel® XMP 3.0
    • Supports Dual-Controller Dual-Channel mode
    • Supports Non-ECC, Un-buffered memory
    • Supports CUDIMM
    • The DIMM slots on this motherboard only have single-sided latches.
    • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information
    Onboard Graphics
    • 1x HDMI
    • Support HDMI 2.1 with FRL, maximum resolution of 4K 120Hz*
    • 2x Type-C DisplayPort
    • Thunderbolt 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
      *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
    Slot
    • 3x PCI-E x16 slot
    • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
    • PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
    • PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
    Audio Realtek ALC1220P Codec
    7.1-Channel High Definition Audio
    Supports S/PDIF output
    Storage
    • 4x M.2
    • M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
    • M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
    • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
    • M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    • 4x SATA 6G

    *Please refer to the manual for M.2 SSD heatsink restrictions.
    RAID
    • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
    Onboard Thunderbolt
    • 2x Thunderbolt4 ports (Rear)
    • Supports up to 40Gbps transfer rate with Thunderbolt devices
    • Supports up to 20Gbps transfer rate with USB4 devices
    • Supports up to 10Gbps transfer rate with USB 3.2 devices
    • Supports up to 5V/3A,15W power charging
    • Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
    • Supports up to 8K display
    USB
    • 4x USB 2.0 (Front)
    • 4x USB 5Gbps Type A (Rear)
    • 2x USB 5Gbps Type A (Front)
    • 3x USB 10Gbps Type A (Rear)
    • 1x USB 10Gbps Type C (Rear)
    • 1x USB 20Gbps Type C (Front)

    *USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1
    LAN Intel Killer E5000 5Gbps LAN
    Internal IO
    • 1x Thunderbolt5 card connector(JTBT5, support RTD3)
    • 1x Power Connector(ATX_PWR)
    • 2x Power Connector(CPU_PWR)
    • 1x Power Connector(PCIE_PWR 8pin)
    • 1x CPU Fan
    • 1x Combo Fan (Pump_Sys Fan)
    • 6x System Fan
    • 1x EZ Conn-header (JAF_2)
    • 2x Front Panel (JFP)
    • 1x Chassis Intrusion (JCI)
    • 1x Front Audio (JAUD)
    • 3x Addressable V2 RGB LED connector (JARGB_V2)
    • 1x RGB LED connector(JRGB)
    • 1x TPM pin header(Support TPM 2.0)
    • 4x USB 2.0 ports
    • 2x USB 5Gbps Type A ports
    • 1x USB 20Gbps Type C ports
    WIRELESS LAN & BLUETOOTH
    • Intel Killer BE1750x Wi-Fi 7
    • The Wireless module is pre-installed in the M.2 (Key-E) slot
    • Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
    • Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
    • Supports Bluetooth 5.4**, MLO, 4KQAM

    * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
    ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
    LED FEATURE
    • 4x EZ Debug LED
    • 1x EZ Digit Debug LED

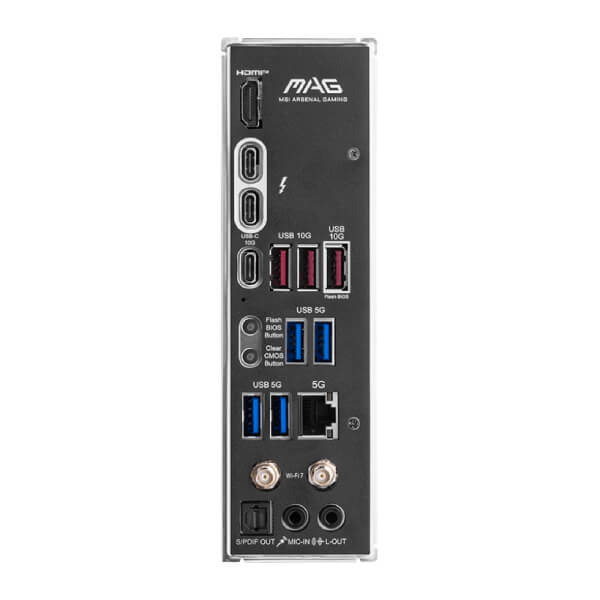

    BACK PANEL PORTS
    • USB 10Gbps Type-A
    • USB 5Gbps Type-A
    • 5G LAN
    • Wi-Fi / Bluetoot
    • Audio Connectors
    • HDMI
    • Thunderbolt™ 4 40Gbps (Type-C)
    • USB 10Gbps Type-C
    • Flash BIOS Button
    • Clear CMOS Button
    • USB 5Gbps Type-A
    • S/PDIF-OUT
    OPERATING SYSTEM Support for Windows 11 64-bit
    BOX CONTENT
    • Quicl installation Guide
    • Europeon Union Regularly Notice
    • Shout-Out Flyer
    • 2x Sata Cables
    • EZ M.2 Clips II
    • EZ M.2 Clips Remover
    • USB Driver
    • Gable Sticker
    • EZ Wi-Fi Antenna
    • 1to3 EZ Conn-Cable (V2)
    • EZ Front Panel Cable
    PCB Info
    • ATX
    • 243.84mmx304.8mm
    Warranty 3 Years
    Note *** Images are for Representation purposes only

    *** Features, Price, Specifications are subject to change without notice.



    Additional information
    ManufacturerMsi
    PlatformIntel
    Motherboar SocketLGA1851
    Motherboard ChipsetZ890
    Motherboard Memory Speedup to 9466+
    Max Memory Support256 GB
    Form FactorMicro-ATX
    Supported Memory TypeDDR5
