MSI B760M Gaming WIFI DDR5 Motherboard
MSI B760M Gaming WIFI DDR5 Motherboard - Image 2
MSI B760M Gaming WIFI DDR5 Motherboard - Image 3
Click to enlarge
    MSI B760M Gaming WIFI DDR5 Motherboard
    MSI B760M Gaming WIFI DDR5 Motherboard - Image 2
    MSI B760M Gaming WIFI DDR5 Motherboard - Image 3

    MSI B760M Gaming WIFI DDR5 Motherboard

    158 Items sold in last 7 days
    Brand:
    29 People watching this product now!
    SKU: B760M-GAMING-WIFI Categories: , ,

    Original price was: ₹20,999.00.Current price is: ₹11,285.00.

    Compare
    Add to wishlist
    Description

    Features:

    • Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
    • Supports DDR5 Memory, Dual Channel DDR5-8000+MHz (OC)
    • Core Boost : With premium layout and digital power design to support more cores and provide better performance
    • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
    • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 and M.2 Shield Frozr
    • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
    • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
    • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

    Specification:

    Model B760M GAMING WIFI
    Chipset INTEL B760
    CPU Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
    LGA 1700
    Memory 2x DDR5, Maximum Memory Capacity 128GB
    Memory Support DDR5 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

    Max. overclocking frequency:

    • 1DPC 1R Max speed up to 8000+ MHz
    • 1DPC 2R Max speed up to 6400+ MHz

    Supports Intel XMP 3.0 OC
    Supports Dual-Controller Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Onboard Graphics 1x HDMI

    • Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz*

    1x DisplayPort

    • Support DP 1.4, maximum resolution of 4K 60Hz*

    1x VGA

    • Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz*

    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
    Slot
    • 1x PCI-E x16 slot
    • 1x PCI-E x1 slot
    • PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
    • PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)
    Audio Realtek ALC897 Codec
    7.1-Channel High Definition Audio
    Supports S/PDIF output
    Storage
    • 2x M.2

    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

    • 4x SATA 6G

    * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
    RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    USB
    • 2x USB 2.0 (Rear)
    • 4x USB 2.0 (Front)
    • 4x USB 5Gbps Type A (Rear)
    • 2x USB 5Gbps Type A (Front)
    LAN Realtek RTL8125B 2.5Gbps LAN
    WIRELESS LAN & BLUETOOTH Intel Wi-Fi 6E
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax

    Supports Bluetooth® 5.3, FIPS, FISMA

    * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
    ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
    Internal IO
    • 1x Power Connector(ATX_PWR)
    • 1x Power Connector(CPU_PWR)
    • 1x CPU Fan
    • 2x System Fan
    • 2x Front Panel (JFP)
    • 1x Chassis Intrusion (JCI)
    • 1x Front Audio (JAUD)
    • 1x Com Port (JCOM)
    • 2x Addressable V2 RGB LED connector (JARGB_V2)
    • 1x RGB LED connector(JRGB)
    • 1x TPM pin header(Support TPM 2.0)
    • 4x USB 2.0 ports
    • 2x USB 5Gbps Type A ports
    LED FEATURE 4x EZ Debug LED

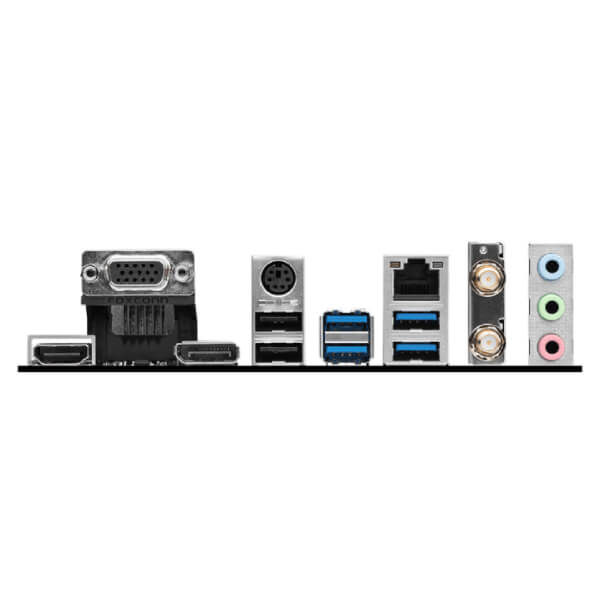

    BACK PANEL PORTS
    • VGA
    • Keyboard / Mouse
    • 2.5G LAN
    • Wi-Fi / Bluetooth
    • Audio Connectors
    • HDMI™
    • DisplayPort
    • USB 2.0
    • USB 3.2 Gen 1 5Gbps (Type-A)
    OPERATING SYSTEM Support for Windows 11 64-bit, Windows 10 64-bit
    PCB Info mATX
    220mmx243.84mm
    Warranty 3 Years
    Note *** Images are for Representation purposes only

    *** Features, Price, Specifications are subject to change without notice.
    Additional information
    ManufacturerMsi
    PlatformIntel
    Motherboar SocketLGA1700
    Motherboard ChipsetB760
    Motherboard Memory Speedup to 6800+
    Max Memory Support128 GB
    Form FactorMicro-ATX
    Supported Memory TypeDDR4
