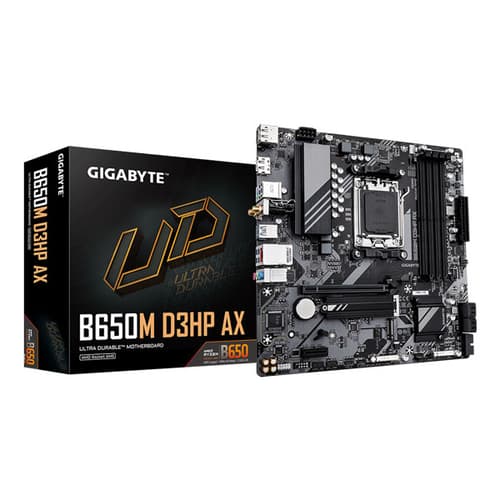

Gigabyte B650M D3HP AX WIFI M-ATX Motherboard

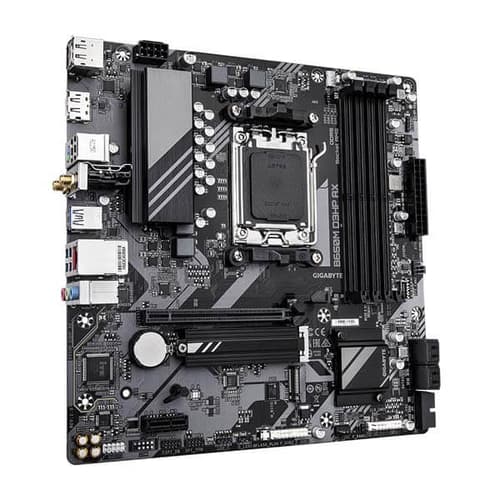

Gigabyte B650M D3HP AX WIFI M-ATX Motherboard - Image 2
Gigabyte B650M D3HP AX WIFI M-ATX Motherboard - Image 3
Click to enlarge
    Gigabyte B650M D3HP AX WIFI M-ATX Motherboard
    Gigabyte B650M D3HP AX WIFI M-ATX Motherboard - Image 2
    Gigabyte B650M D3HP AX WIFI M-ATX Motherboard - Image 3

    Gigabyte B650M D3HP AX WIFI M-ATX Motherboard

    33 Items sold in last 7 days
    Brand:
    34 People watching this product now!
    SKU: B650M-D3HP-AX Categories: , ,

    Original price was: ₹24,500.00.Current price is: ₹11,800.00.

    Compare
    Add to wishlist
    Description

    Features:

    • AMD Socket AM5：Supports AMD Ryzen 7000/ Ryzen 8000/ Ryzen 9000 Series Processors
    • Unparalleled Performance：5+2+2 Phases Digital VRM Solution
    • Dual Channel DDR5：4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
    • SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
    • EZ-Latch：PCIe x16 Slot with Quick Release Design
    • Fast Networks：Wi-Fi 6E 802.11ax & 2.5GbE LAN
    • Extended Connectivity：2*DP, HDMI
    • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
    • Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

    802.11ax Wi-Fi 6E:
    The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

    2.5GbE LAN:
    Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.

    PCIe 4.0 Hardware Design:
    GIGABYTE B650 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.

    High-End Audio Capacitors:
    GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

    Audio Noise Guard:
    GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

    Smart Fan 6:
    Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.



    Specifications:

    Model: B650M D3HP AX
    CPU: AMD Socket AM5, support for:
    AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
    Chipset: AMD B650
    Memory:
    • Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
    • 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
    • Dual channel memory architecture
    • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    • Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
    Onboard Graphics: Integrated Graphics Processor with AMD Radeon Graphics support
    – 2 x DisplayPorts, supporting a maximum resolution of 3840×2160@144 Hz
    * Support for DisplayPort 1.4 version.

    – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support for native HDMI 2.1 TMDS compatible ports.

    Support for up to triple-display at the same time
    (Graphics specifications may vary depending on CPU support.)
    Audio:
    • Realtek Audio CODEC
    • High Definition Audio
    • 2/4/5.1/7.1-channel
    LAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    Wireless Communication module: Realtek Wi-Fi 6E RTL8852CE

    • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    • BLUETOOTH 5.3
    • Support for 11ax 160MHz wireless

    (Actual data rate may vary depending on environment and equipment.)
    Expansion Slots: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

    • AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
    • AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
    • AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

    * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    Chipset:
    – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
    Storage Interface: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:

    • AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
    • AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    • AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

    1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs

    • 4 x SATA 6Gb/s connectors
    • RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
    • RAID 0, RAID 1, and RAID 10 support for SATA storage devices
    USB: CPU:

    • 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
    • 1 x USB 3.2 Gen 1 port on the back panel
    • 1 x USB 2.0/1.1 port on the back panel

    Chipset:

    • 2 x USB 3.2 Gen 1 ports on the back panel
    • 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
    • 2 x USB 3.2 Gen 1 ports available through the internal USB header
    • 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
    Internal I/O Connectors:
    • 1 x 24-pin ATX main power connector
    • 1 x 8-pin ATX 12V power connector
    • 1 x CPU fan header
    • 2 x system fan headers
    • 2 x addressable LED strip headers
    • 1 x RGB LED strip header
    • 2 x M.2 Socket 3 connectors
    • 4 x SATA 6Gb/s connectors
    • 1 x front panel header
    • 1 x front panel audio header
    • 1 x USB Type-C header, with USB 3.2 Gen 1 support
    • 1 x USB 3.2 Gen 1 header
    • 2 x USB 2.0/1.1 headers
    • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
    • 1 x Q-Flash Plus button
    • 1 x reset jumper
    • 1 x Clear CMOS jumper
    Back Panel Connectors:
    • 1 x PS/2 keyboard/mouse port
    • 1 x USB Type-C port, with USB 3.2 Gen 1 support
    • 3 x USB 3.2 Gen 1 ports
    • 2 x USB 2.0/1.1 ports
    • 1 x HDMI port
    • 2 x DisplayPorts
    • 1 x RJ-45 port
    • 3 x audio jacks
    I/O Controller: iTE I/O Controller Chip
    H/W Monitoring:
    • Voltage detection
    • Temperature detection
    • Fan speed detection
    • Fan fail warning
    • Fan speed control
    BIOS:
    • 1 x 256 Mbit flash
    • Use of licensed AMI UEFI BIOS
    • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Unique Features: Support for GIGABYTE Control Center (GCC)

    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

    Support for Q-Flash
    Support for Q-Flash Plus
    Bundled Software: Norton Internet Security (OEM version)
    LAN bandwidth management software
    Operating System: Support for Windows 11 64-bit
    Support for Windows 10 64-bit
    Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
    Warranty: 3 Years
    Note Features, price, specifications are subject to change without notice. Images are for representation purposes only
    Additional information
    PlatformAMD
    Form FactorATX
    Stock Status:In Stock
    ColorBlack
    ManufacturerGigabyte
    Motherboar SocketAM5
    Motherboard ChipsetB650
    Motherboard Memory Speedup to 7800+
    Supported Memory TypeDDR5
    Max Memory Support192 GB
    Channel SupportedDual Channel
    Memory FeatureSupports ECC UDIMM memory (non-ECC mode), Supports non-ECC UDIMM memory, Supports un-buffered memory
    Expansion Slots1x PCIe 3.0 x16 slot (from AMD processor), 4000G and 3000 processors Supports x8 speed with Ryzen 3000G processors, 5000G, Supports x16 speed with Ryzen 5000, Supports x4 speed with AMD Athlon with Radeon Graphics processors 1x PCIe 3.0 x1 slot
    Back Panel I/O PortsLAN port HDMI DVI-D Keyboard / Mouse USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A USB 2.0 Ports Audio Connectors
    Internal I/O Connector1x 24-pin ATX main power connector, 1x 4-pin ATX 12V power connector, 1x 4-pin CPU fan connector, 1x 4-pin system fan connectors, 1x Chassis Intrusion connector, 1x Clear CMOS jumper, 1x Front panel audio connector, 1x M.2 slots (M-Key), 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 1xTPM module connector, 2x System panel connectors, 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 4x SATA 6Gb/s connectors
