-55%

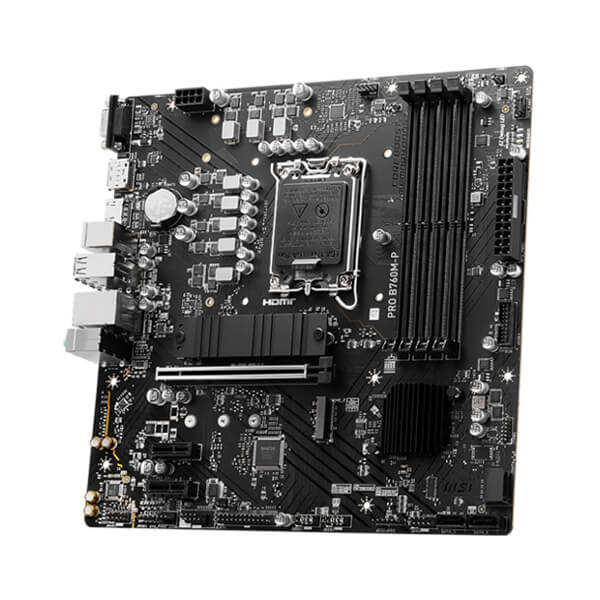

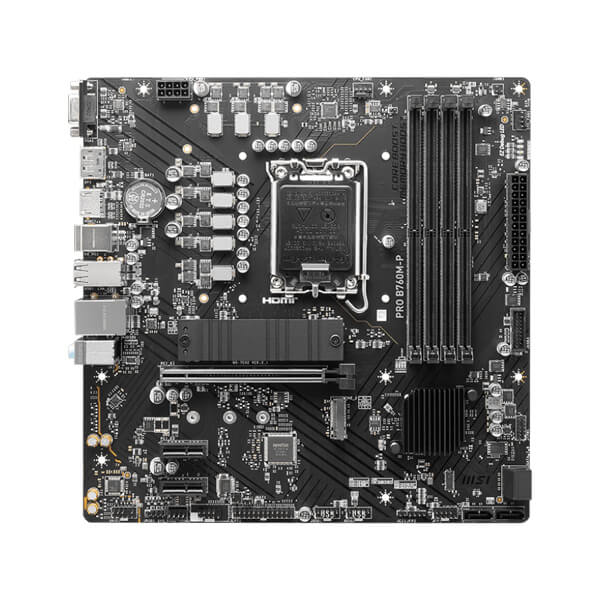

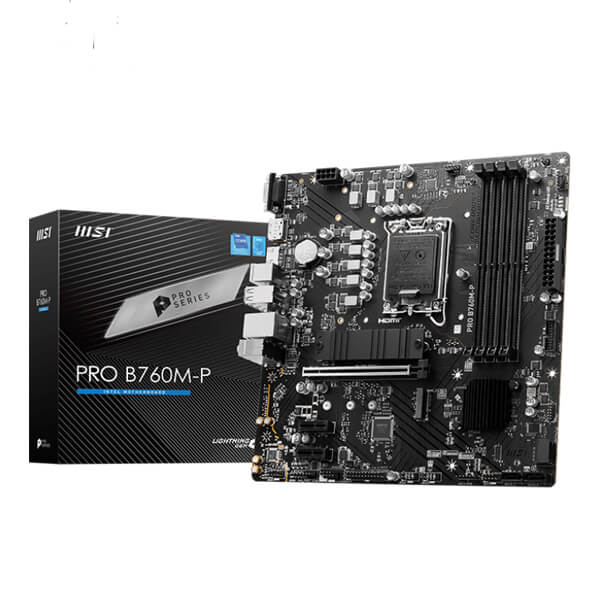

MSI Pro B760M-P DDR5 M-ATX Motherboard
MSI Pro B760M-P DDR5 M-ATX Motherboard - Image 2
MSI Pro B760M-P DDR5 M-ATX Motherboard - Image 3
Click to enlarge
    MSI Pro B760M-P DDR5 M-ATX Motherboard
    MSI Pro B760M-P DDR5 M-ATX Motherboard - Image 2
    MSI Pro B760M-P DDR5 M-ATX Motherboard - Image 3

    MSI Pro B760M-P DDR5 M-ATX Motherboard

    179 Items sold in last 7 days
    Brand:
    40 People watching this product now!
    SKU: PRO-B760M-P Categories: , ,

    Original price was: ₹23,999.00.Current price is: ₹10,900.00.

    Compare
    Add to wishlist
    Description

    Features:

    • Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 Socket
    • Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
    • Core Boost : With premium layout and digital power design to support more cores and provide better performance
    • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
    • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
    • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
    • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

    Specifications:

    Chipset INTEL B760
    CPU SUPPORT Support Intel® Core 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
    LGA 1700
    Memory 4x DDR5, Maximum Memory Capacity 192GB
    Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 6800+ MHz
    • 1DPC 2R Max speed up to 6400+ MHz
    • 2DPC 1R Max speed up to 6000+ MHz
    • 2DPC 2R Max speed up to 5600+ MHz

    Supports Intel® XMP 3.0 OC
    Supports Dual-Controller Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Onboard Graphics 1x HDMI™
    Support HDMI™ 1.4, maximum resolution of 4K 30Hz*
    1x DisplayPort
    Support DP 1.4, maximum resolution of 4K 60Hz*
    1x VGA
    Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz
    EXPANSION SLOT 1x PCI-E x16 slot
    2x PCI-E x1 slot
    PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
    PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
    PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
    Storage 2x M.2
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    4x SATA 6G
    RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    USB 4x USB 2.0 (Rear)
    4x USB 2.0 (Front)
    1x USB 3.2 Gen1 Type A (Rear)
    2x USB 3.2 Gen1 Type A (Front)
    1x USB 3.2 Gen2 Type C (Rear)
    LAN Realtek® RTL8111H Gigabit LAN
    Audio Realtek® ALC897 Codec
    7.1-Channel High Definition Audio
    Internal I/O 1x Power Connector(ATX_PWR)
    1x Power Connector(CPU_PWR)
    1x CPU Fan
    2x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Printer Port (JLPT)
    1x Com Port (JCOM)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    2x USB 3.2 Gen1 Type A ports
    LED FEATURE 4x EZ Debug LED
    BACK PANEL PORTS VGA
    DisplayPort
    HDMI™
    Keyboard / Mouse
    USB 2.0
    LAN port
    Audio Connectors
    USB 3.2 Gen 1 5Gbps (Type-A)
    USB 3.2 Gen 2 10Gbps (Type-C)
    OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
    PCB Dimension mATX
    243.84mmx243.84mm
    Additional information
    ManufacturerMsi
    PlatformIntel
    Motherboar SocketLGA1700
    Motherboard ChipsetB760
    Motherboard Memory Speedup to 6800+
    Max Memory Support256 GB
    Form FactorMicro-ATX
    Supported Memory TypeDDR4
