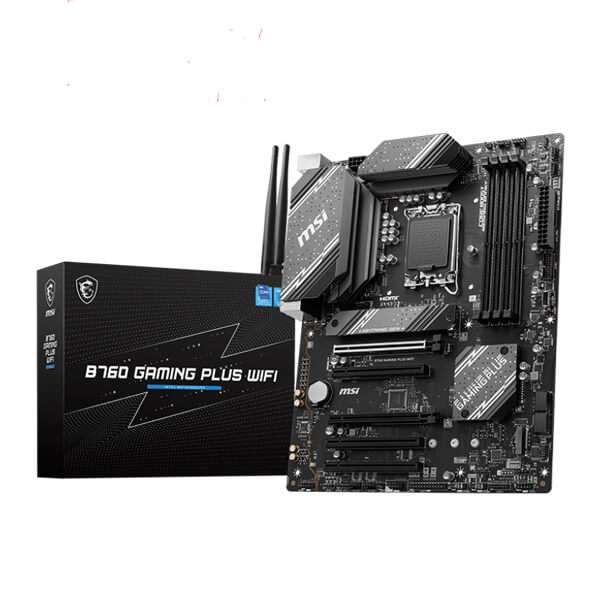

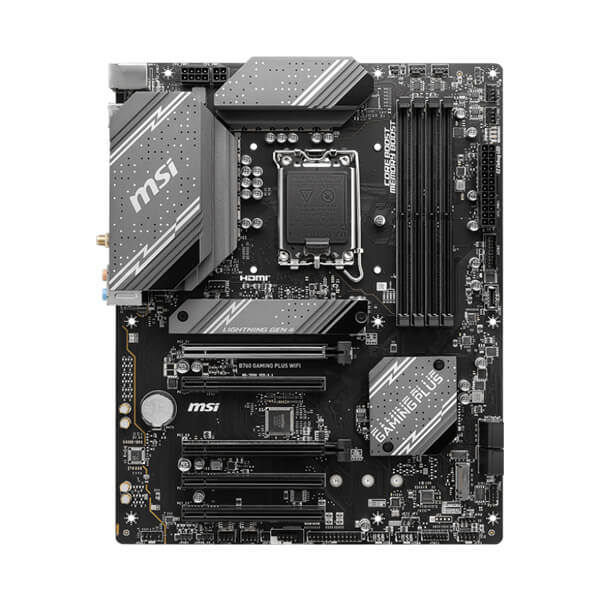

MSI B760 Gaming Plus WIFI DDR5 Motherboard
MSI B760 Gaming Plus WIFI DDR5 Motherboard - Image 2
MSI B760 Gaming Plus WIFI DDR5 Motherboard - Image 3
Click to enlarge
    MSI B760 Gaming Plus WIFI DDR5 Motherboard
    MSI B760 Gaming Plus WIFI DDR5 Motherboard - Image 2
    MSI B760 Gaming Plus WIFI DDR5 Motherboard - Image 3

    MSI B760 Gaming Plus WIFI DDR5 Motherboard

    7 Items sold in last 7 days
    Brand:
    25 People watching this product now!
    SKU: B760-GAMING-PLUS-WIFI Categories: , ,

    Original price was: ₹33,999.00.Current price is: ₹17,999.00.

    Compare
    Add to wishlist
    Description

    Features:

    • Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
    • Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
    • Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
    • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
    • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, Turbo USB 3.2 Gen 2 10G
    • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
    • High Quality PCB: 6-layer PCB made by 2oz thickened copper
    • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

    Specifications:

    Chipset INTEL B760
    CPU SUPPORT Support Intel® Core 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
    Memory 4x DDR5, Maximum Memory Capacity 192GB
    Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 6800+ MHz
    • 1DPC 2R Max speed up to 6400+ MHz
    • 2DPC 1R Max speed up to 6000+ MHz
    • 2DPC 2R Max speed up to 5600+ MHz

    Supports Intel® XMP 3.0 OC
    Supports Dual-Controller Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Onboard Graphics 1x HDMI
    Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
    1x DisplayPort
    Support DP 1.4, maximum resolution of 4K 60Hz
    EXPANSION SLOT 5x PCI-E x16 slot
    PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
    PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
    PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
    PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
    PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
    Storage 2x M.2
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    4x SATA 6G
    RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    USB 4x USB 2.0 (Rear)
    4x USB 2.0 (Front)
    2x USB 3.2 Gen1 Type A (Front)
    1x USB 3.2 Gen1 Type C (Front)
    2x USB 3.2 Gen2 Type A (Rear)
    1x USB 3.2 Gen2 Type C (Rear)
    LAN Realtek® RTL8125BG 2.5G LAN
    WIRELESS / BLUETOOTH Intel® Wi-Fi 6E
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax

    Supports Bluetooth® 5.3, FIPS, FISMA
    Audio Realtek® ALC897 Codec
    7.1-Channel High Definition Audio
    Supports S/PDIF output
    Internal I/O 1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x CPU Fan
    1x Pump Fan
    5x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Printer Port (JLPT)
    1x Com Port (JCOM)
    1x TBT connector (JTBT, supports RTD3)
    2x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    2x USB 3.2 Gen1 Type A ports
    1x USB 3.2 Gen1 Type C ports
    LED FEATURE 4x EZ Debug LED

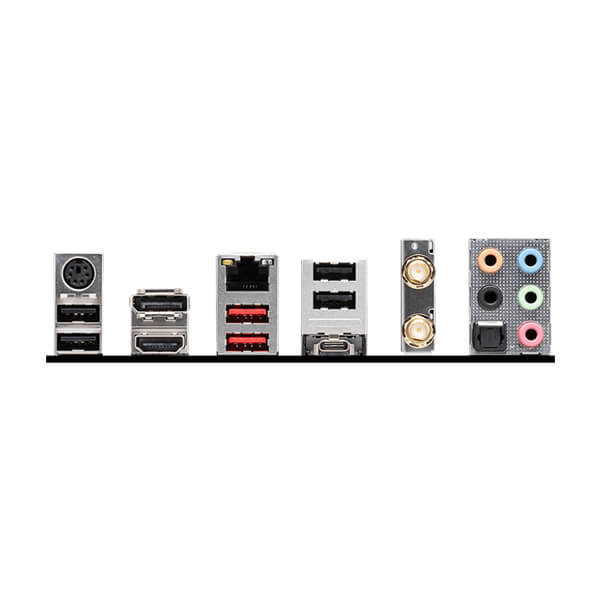

    BACK PANEL PORTS Keyboard / Mouse
    DisplayPort
    2.5G LAN
    USB 2.0
    Wi-Fi / Bluetooth
    Audio Connectors
    USB 2.0
    HDMI
    USB 3.2 Gen 2 10Gbps (Type-A)
    USB 3.2 Gen 2 10Gbps (Type-C)
    S/PDIF-OUT
    OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
    PCB Dimension ATX
    243.84mmx304.8mm
    Warranty 3 Years
    Note Features, Price, Specifications are subject to change without notice. Images used for representation purpose only
    Additional information
    ColorBlack
    Stock Status:In Stock
    ManufacturerMsi
    PlatformIntel
    Motherboar SocketLGA1700
    Motherboard ChipsetB760
    Motherboard Memory Speedup to 6800+
    Max Memory Support256 GB
    Supported Memory TypeDDR5
