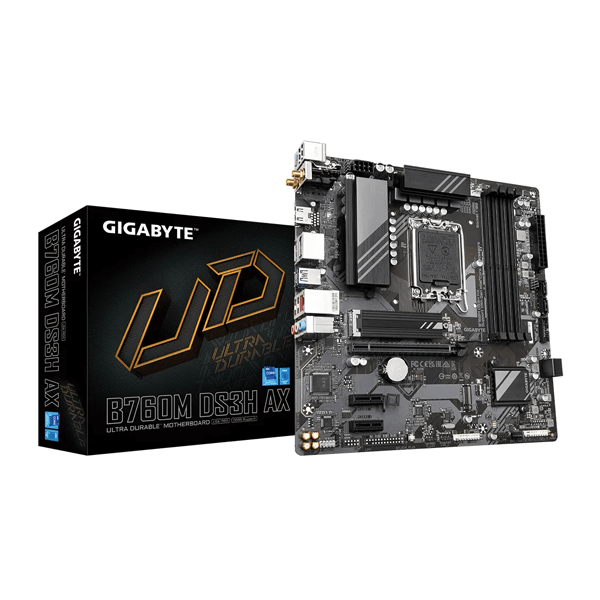

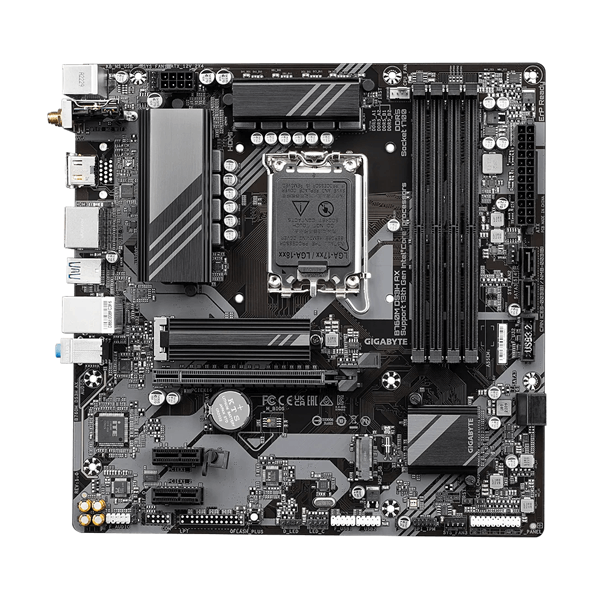

Gigabyte B760M DS3H AX WiFi DDR5 M-ATX Motherboard
Gigabyte B760M DS3H AX WiFi DDR5 M-ATX Motherboard - Image 2
Gigabyte B760M DS3H AX WiFi DDR5 M-ATX Motherboard - Image 3
Gigabyte B760M DS3H AX WiFi DDR5 M-ATX Motherboard - Image 4
Click to enlarge
    Gigabyte B760M DS3H AX WiFi DDR5 M-ATX Motherboard
    Gigabyte B760M DS3H AX WiFi DDR5 M-ATX Motherboard - Image 2
    Gigabyte B760M DS3H AX WiFi DDR5 M-ATX Motherboard - Image 3
    Gigabyte B760M DS3H AX WiFi DDR5 M-ATX Motherboard - Image 4

    Gigabyte B760M DS3H AX WiFi DDR5 M-ATX Motherboard

    130 Items sold in last 7 days
    Brand:
    10 People watching this product now!
    SKU: B760M-DS3H-AX Categories: , ,

    Original price was: ₹22,000.00.Current price is: ₹14,150.00.

    Compare
    Add to wishlist
    Description

    Features:

    • Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors
    • Unparalleled Performance：Hybrid 6+2+1 Phases Digital VRM Solution
    • Dual Channel DDR5：4*DIMMs XMP Memory Module Support
    • Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
    • M.2 Thermal Guard：To Ensure M.2 SSD Performance
    • EZ-Latch：PCIe 4.0×16 Slot with Quick Release Design
    • Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
    • Extended Connectivity：Rear USB-C® 10Gb/s, DP, HDMI
    • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
    • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

    Specifications:

    CPU LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
    L3 cache varies with CPU
    Chipset Intel® B760 Express Chipset
    Memory Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
    4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules

    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)
    Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:

    1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.0 version and HDCP 2.3.
    1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3
    1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
    * Support for DisplayPort 1.2 version.

    (Graphics specifications may vary depending on CPU support.)

    Support for up to triple-display at the same time
    Audio Realtek® Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
    Support for S/PDIF Out
    LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    Wireless Communication module AMD Wi-Fi 6E RZ608 (MT7921K) (For PCB rev. 1.0)

    WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    LUETOOTH 5.2
    Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate

    Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1)

    WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    BLUETOOTH 5.3
    Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

    Intel® Wi-Fi 6E AX211 (For PCB rev. 1.2)

    WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    BLUETOOTH 5.3
    Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

    Realtek® Wi-Fi 6E RTL8852CE (For PCB rev. 1.3)

    WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    BLUETOOTH 5.3
    Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

    (Actual data rate may vary depending on environment and equipment.)
    Expansion Slots CPU:

    1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

    Chipset:

    2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
    Storage Interface CPU:

    1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

    Chipset:

    1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
    4 x SATA 6Gb/s connectors

    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
    USB Chipset:

    1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
    5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
    2 x USB 2.0/1.1 ports on the back panel

    Chipset+2 USB 2.0 Hubs:

    4 x USB 2.0/1.1 ports available through the internal USB headers
    Internal I/O Connectors 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    3 x system fan headers
    1 x addressable LED strip header
    1 x RGB LED strip header
    2 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    1 x S/PDIF Out header
    1 x Q-Flash Plus button
    1 x reset jumper
    1 x Clear CMOS jumper

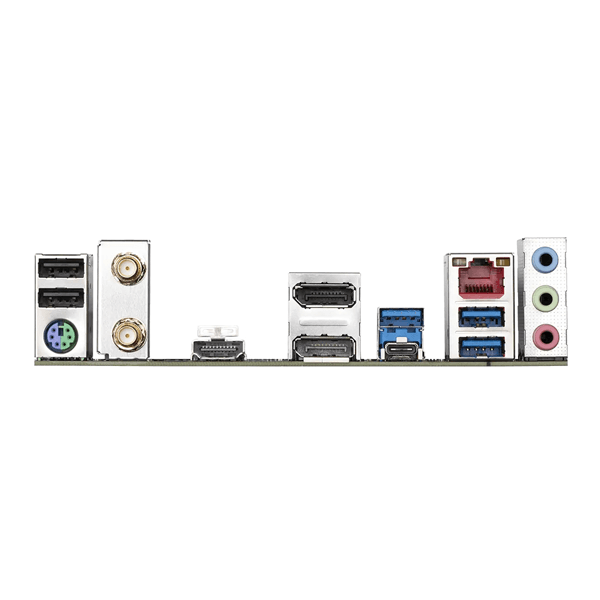

    Back Panel Connectors 2 x USB 2.0/1.1 ports
    1 x PS/2 keyboard/mouse port
    2 x SMA antenna connectors (2T2R)
    1 x HDMI port
    2 x DisplayPorts
    3 x USB 3.2 Gen 1 ports
    1 x USB Type-C® port, with USB 3.2 Gen 2 support
    1 x RJ-45 port
    3 x audio jacks
    I/O Controller iTE® I/O Controller Chip
    H/W Monitoring Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
    BIOS 1 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Unique Features Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    Support for Q-Flash
    Support for Q-Flash Plus
    Bundled Software Norton Internet Security (OEM version)
    LAN bandwidth management software
    Operating System Support for Windows 11 64-bit
    Support for Windows 10 64-bit
    Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
    Warranty 3 Years
    Note Features, Price, Specifications are subject to change without notice. Images used for representation purposes only
    Additional information
    ColorBlack
    Stock Status:In Stock
    ManufacturerGigabyte
    PlatformIntel
    Motherboar SocketLGA1700
    Motherboard ChipsetB760
    Motherboard Memory Speedup to 7600
    Max Memory Support256 GB
    Form FactorATX
    Supported Memory TypeDDR5
