-30%

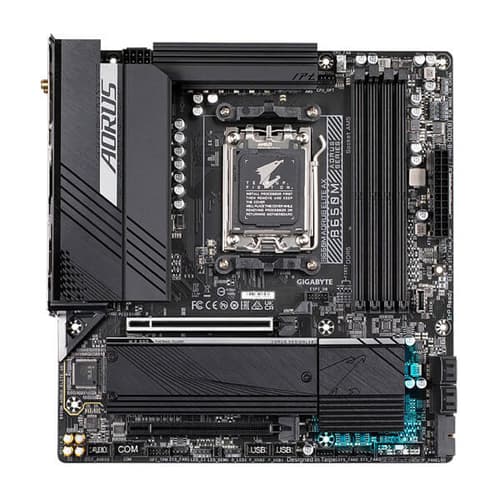

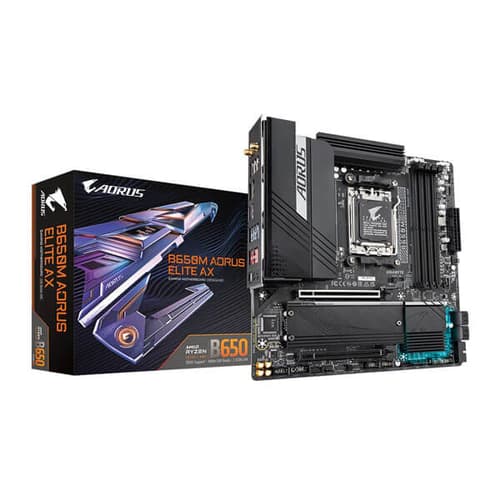

Gigabyte B650M Aorus Elite AX WIFI M-ATX Motherboard
Gigabyte B650M Aorus Elite AX WIFI M-ATX Motherboard - Image 2
Gigabyte B650M Aorus Elite AX WIFI M-ATX Motherboard - Image 3
Click to enlarge
    Gigabyte B650M Aorus Elite AX WIFI M-ATX Motherboard
    Gigabyte B650M Aorus Elite AX WIFI M-ATX Motherboard - Image 2
    Gigabyte B650M Aorus Elite AX WIFI M-ATX Motherboard - Image 3

    Gigabyte B650M Aorus Elite AX WIFI M-ATX Motherboard

    52 Items sold in last 7 days
    Brand:
    52 People watching this product now!
    SKU: B650M-AORUS-ELITE-AX Categories: , ,

    Original price was: ₹26,000.00.Current price is: ₹18,240.00.

    Compare
    Add to wishlist
    Description

    Features:

    • AMD Socket AM5：Support for: AMD Ryzenâ„¢ 7000 / Ryzenâ„¢ 8000 / Ryzenâ„¢ 9000 Series Processors
    • Unparalleled Performance：Twin 12+2+1 Phases Digital VRM Solution
    • Dual Channel DDR5：4DIMMs with AMD EXPOâ„¢ & Intel® XMP Memory Module Support
    • Superfast Storage：1 PCIe 5.0 x4 and 1 PCIe 4.0 x4 M.2 Connector
    • Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
    • EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
    • Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
    • Extended Connectivity：HDMI, DP, Front USB-C® 20Gb/s, Rear USB-C® 10Gb/s
    • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
    • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
    • 6+6 phases parallel power design

    Specifications:

    CPU AMD Socket AM5, support for: AMD Ryzenâ„¢ 7000 / Ryzenâ„¢ 8000 / Ryzenâ„¢ 9000 Series Processors
    Chipset AMD B650
    Memory
    • Support for DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
    • 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    • Dual channel memory architecture
    • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    • Support for AMD EXtended Profiles for Overclocking (AMD EXPOâ„¢) and Extreme Memory Profile (XMP) memory modules
    Onboard Graphics Integrated Graphics Processor:

    • 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz

    Support for DisplayPort 1.4 version and HDR.

    • 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

    Support for HDMI 2.1 version and HDCP 2.3.
    Support native HDMI 2.1 TMDS compatible ports.
    Audio
    • Realtek® Audio CODEC
    • High Definition Audio
    • 2/4/5.1/7.1-channel
    • Support for S/PDIF Ou
    LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    Wireless Communication module AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0)

    • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    • BLUETOOTH 5.2
    • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

    Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1)

    • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    • BLUETOOTH 5.3
    • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    Expansion Slots CPU:

    • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    Chipset:

    • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
    Storage Interface CPU:

    1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)
    * Actual support may vary by CPU.
    1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)

    Chipset:

    4 x SATA 6Gb/s connectors
    USB CPU:

    • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
    • 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

    CPU + USB 2.0 Hub:

    • 4 x USB 2.0/1.1 ports on the back panel

    Chipset:

    • 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header
    • 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
      4 x USB 2.0/1.1 ports available through the internal USB headers

    Chipset+USB 3.2 Gen 1 Hub:

    • 4 x USB 3.2 Gen 1 ports on the back pane
    Internal I/O Connectors 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    1 x water cooling CPU fan header
    3 x system fan headers
    1 x system fan/water cooling pump header
    2 x addressable LED strip headers
    2 x RGB LED strip headers
    1 x CPU cooler LED strip/RGB LED strip header
    2 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x serial port header
    1 x THB_U4 add-in card connector
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    1 x reset button
    1 x reset jumper
    1 x Clear CMOS jumper
    Back Panel Connectors I/O Controller1 x Q-Flash Plus button
    2 x SMA antenna connectors (2T2R)
    1 x DisplayPort
    1 x HDMI port
    1 x USB Type-C® port, with USB 3.2 Gen 2 support
    2 x USB 3.2 Gen 2 Type-A ports (red)
    5 x USB 3.2 Gen 1 ports
    4 x USB 2.0/1.1 ports
    1 x RJ-45 port
    1 x optical S/PDIF Out connector
    2 x audio jacks
    I/O Controller iTE® I/O Controller Chip
    H/W Monitoring
    • Voltage detection
    • Temperature detection
    • Fan speed detection
    • Water cooling flow rate detection
    • Fan fail warning
    • Fan speed control
    BIOS
    • 1 x 256 Mbit flash
    • Use of licensed AMI UEFI BIOS
    • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Unique Features
    • Support for GIGABYTE Control Center (GCC)
    • Support for Q-Flash
    • Support for Q-Flash Plus
    Bundled Software
    • Norton® Internet Security (OEM version)
    • LAN bandwidth management software
    Operating System Support for Windows 11 64-bit
    Support for Windows 10 64-bit
    Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
    Warranty 3 Years
    Note Features, Price, Specifications are subject to change without notice. Images used for representation purposes only
    Additional information
    PlatformAMD
    Form FactorATX
    Stock Status:In Stock
    ColorBlack
    ManufacturerGigabyte
    Motherboar SocketAM5
    Motherboard ChipsetB650
    Motherboard Memory Speedup to 8000+
    Supported Memory TypeDDR5
    Max Memory Support128 GB
    Channel SupportedDual Channel
    Memory FeatureSupports ECC UDIMM memory (non-ECC mode), Supports non-ECC UDIMM memory, Supports un-buffered memory
    Expansion Slots1x PCIe 3.0 x16 slot (from AMD processor), 4000G and 3000 processors Supports x8 speed with Ryzen 3000G processors, 5000G, Supports x16 speed with Ryzen 5000, Supports x4 speed with AMD Athlon with Radeon Graphics processors 1x PCIe 3.0 x1 slot
    Back Panel I/O PortsLAN port HDMI DVI-D Keyboard / Mouse USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A USB 2.0 Ports Audio Connectors
    Internal I/O Connector1x 24-pin ATX main power connector, 1x 4-pin ATX 12V power connector, 1x 4-pin CPU fan connector, 1x 4-pin system fan connectors, 1x Chassis Intrusion connector, 1x Clear CMOS jumper, 1x Front panel audio connector, 1x M.2 slots (M-Key), 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 1xTPM module connector, 2x System panel connectors, 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 4x SATA 6Gb/s connectors
