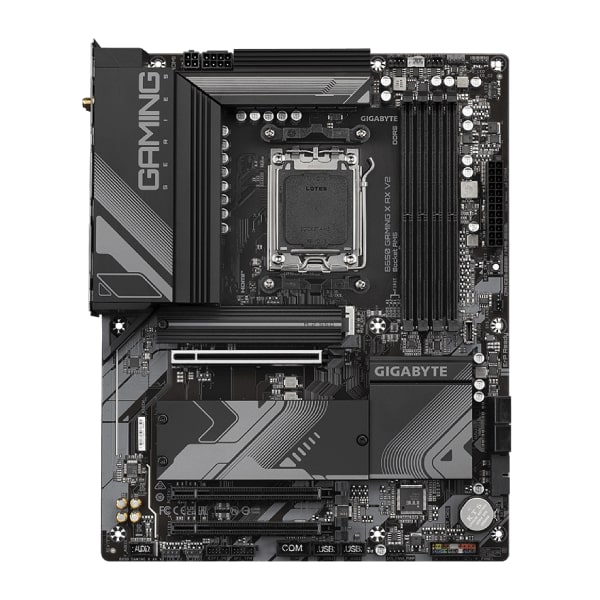

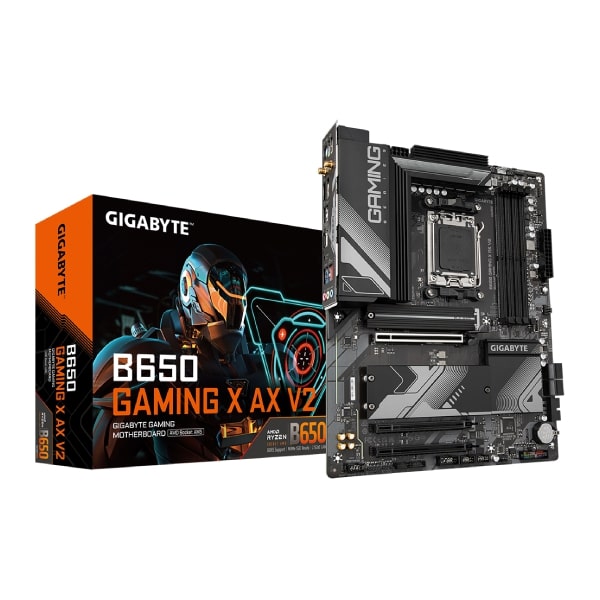

Gigabyte B650 Gaming X AX V2 WIFI ATX Motherboard
Gigabyte B650 Gaming X AX V2 WIFI ATX Motherboard - Image 2
Gigabyte B650 Gaming X AX V2 WIFI ATX Motherboard - Image 3
Click to enlarge
    Gigabyte B650 Gaming X AX V2 WIFI ATX Motherboard
    Gigabyte B650 Gaming X AX V2 WIFI ATX Motherboard - Image 2
    Gigabyte B650 Gaming X AX V2 WIFI ATX Motherboard - Image 3

    Gigabyte B650 Gaming X AX V2 WIFI ATX Motherboard

    60 Items sold in last 7 days
    Brand:
    50 People watching this product now!
    SKU: B650-GAMING-X-AX-V2 Categories: , ,

    Original price was: ₹31,500.00.Current price is: ₹16,000.00.

    Compare
    Add to wishlist
    Description

    Features:

    • AMD Socket AM5：Supports AMD Ryzen™ 7000/ Ryzen™ 8000/ Ryzen™ 9000 Series Processors
    • Unparalleled Performance：Direct 8+2+2 Phases Digital VRM Solution
    • Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
    • SuperSpeed Storage：1*PCIe 5.0 x4 + 2*PCIe 4.0 x4 M.2 Connectors
    • Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
    • EZ-Latch：PCIe x16 Slot with Quick Release Design
      Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
    • Extended Connectivity：DP, HDMI, Rear USB-C® 10Gb/s, Front USB-C® 20Gb/s
    • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
    • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

    Specifications:

     Model Name  B650 GAMING X AX V2
     CPU  AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
     Chipset  AMD B650
     Memory Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
    4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
     Onboard Graphics Integrated Graphics Processor with AMD Radeon™ Graphics support:

    1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
    * Support for DisplayPort 1.4 version and HDR.
    1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support native HDMI 2.1 TMDS compatible ports.

    (Graphics specifications may vary depending on CPU support.)
     Audio  Realtek® Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
     LAN  Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
     Wireless Communication module Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0)

    WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    BLUETOOTH 5.3
    Support for 11ax 160MHz wireless standard

    AMD Wi-Fi 6E RZ616 (MT7922A22M) (PCB rev. 1.1)

    WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    BLUETOOTH 5.2
    Support for 11ax 160MHz wireless standard

    Intel® Wi-Fi 6E AX210 (PCB rev. 1.2)

    WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    BLUETOOTH 5.3
    Support for 11ax 160MHz wireless standard

    (Actual data rate may vary depending on environment and equipment.)
     Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

    AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode
    AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
    AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
    * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    Chipset:

    2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
     Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

    AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x4/x2 SSDs
    AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

    1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

    AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs
    AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

    1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
    4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, and RAID 10 support for SATA storage devices
     USB CPU:

    1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
    1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    1 x USB 3.2 Gen 1 port on the back panel

    CPU + USB 2.0 Hub:

    3 x USB 2.0/1.1 ports on the back panel

    Chipset:

    1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header
    4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    4 x USB 2.0/1.1 ports available through the internal USB headers
     Internal I/O Connectors 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x 4-pin ATX 12V power connector
    1 x CPU fan header
    1 x CPU fan/water cooling pump header
    2 x system fan headers
    1 x system fan/water cooling pump header
    2 x addressable LED strip headers
    2 x RGB LED strip headers
    1 x CPU cooler LED strip/RGB LED strip header
    3 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
    1 x serial port header
    1 x reset button
    1 x reset jumper
    1 x Clear CMOS jumper

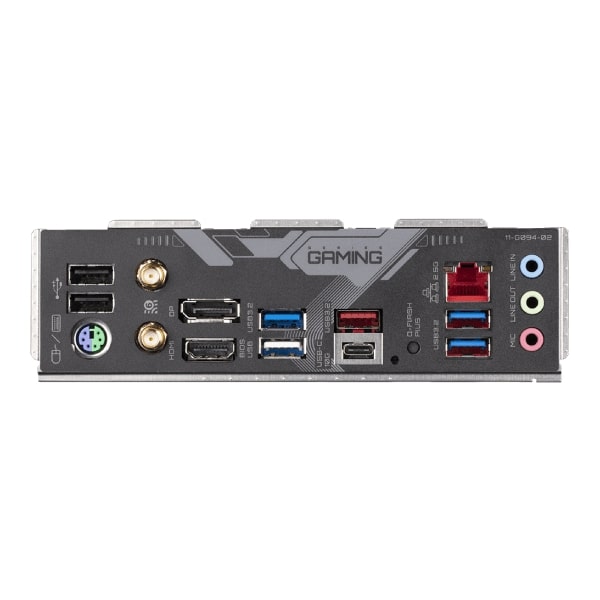

     Back Panel Connectors 2 x SMA antenna connectors (2T2R)
    1 x Q-Flash Plus button
    1 x DisplayPort
    1 x HDMI port
    1 x USB Type-C® port, with USB 3.2 Gen 2 support
    1 x USB 3.2 Gen 2 Type-A port (red)
    3 x USB 3.2 Gen 1 ports
    3 x USB 2.0/1.1 ports
    1 x RJ-45 port
    3 x audio jacks
     I/O Controller iTE® I/O Controller Chip
     H/W Monitoring  Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control
     BIOS 1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
     Unique Features Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    Support for Q-Flash
    Support for Q-Flash Plus
     Bundled Software Norton® Internet Security (OEM version)
    LAN bandwidth management software
     Operating System Support for Windows 11 64-bit
    Support for Windows 10 64-bit
     Form Factor ATX Form Factor; 30.5cm x 24.4cm
     Warranty  3 Years
    Note *** Features, Price, Specifications are subject to change without notice.
    Additional information
    Stock Status:In Stock
    Supported Memory TypeDDR5
    ManufacturerGigabyte
    PlatformAMD
    Motherboar SocketAM5
    Motherboard ChipsetB650
    Motherboard Memory Speedup to 8000+
    Max Memory Support256 GB
    ColorBlack
