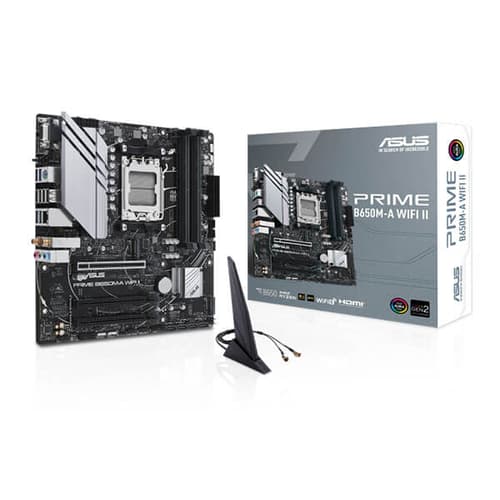

Asus Prime B650M-A WIFI II M-ATX Motherboard
Click to enlarge

    Asus Prime B650M-A WIFI II M-ATX Motherboard

    81 Items sold in last 7 days
    Brand:
    22 People watching this product now!
    SKU: PRIME-B650M-A-WIFI-II Categories: , ,

    Original price was: ₹23,000.00.Current price is: ₹15,600.00.

    Compare
    Add to wishlist
    Description

    Features:

    AMD B650 Micro-ATX motherboard, DDR5, PCIe 5.0 M.2 support, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, VGA, HDMI®, SATA 6 Gbps, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®, BIOS FlashBack™, Arua Sync

    • AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series Desktop Processors
    • Ultrafast Connectivity: Wi-Fi 6, M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®
    • ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
    • Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
    • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

    Specifications:

    Model PRIME-B650M-A-WIFI-II
    CPU AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
    Chipset AMD B650 Chipset
    Memory 4 x DIMM, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports AMD Extended Profiles for Overclocking (EXPO™)
    OptiMem II

    • Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration
    • Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
    Graphics 1 x DisplayPort
    1 x VGA port
    1 x HDMI® port

    • Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
    • Supports max. 8K@60Hz as specified in DisplayPort 1.4.
    • Supports 4K@60Hz as specified in HDMI® 2.1.
    Expansion Slots AMD Ryzen™ 7000 Series Desktop Processors

    • 1 x PCIe 4.0 x16 slot (supports x16 mode)

    AMD B650 Chipset

    • 2 x PCIe 4.0 x16 slots (support x1 mode)
    Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
    AMD Ryzen™ 7000 Series Desktop Processors

    • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

    AMD B650 Chipset

    • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    • 4 x SATA 6Gb/s ports
    Ethernet 1 x Realtek 2.5Gb Ethernet
    Wireless & Bluetooth Wi-Fi 6
    2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5GHz frequency band
    Bluetooth® v5.2
    USB Rear USB (Total 8 ports)

    • 2 x USB 3.2 Gen 2 ports (2 x Type-A)
    • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
    • 4 x USB 2.0 ports (4 x Type-A)

    Front USB (Total 7 ports)

    • 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
    • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
    • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
    Audio Realtek 7.1 Surround Sound High Definition Audio CODEC

    • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    • Supports up to 24-Bit/192 kHz playback

    Audio Features

    • Audio Shielding
    • Premium audio capacitors
    • Dedicated audio PCB layers
    Back Panel I/O Ports
    • 2 x USB 3.2 Gen 2 ports (2 x Type-A)
    • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
    • 4 x USB 2.0 ports (4 x Type-A)
    • 1 x DisplayPort
    • 1 x VGA port
    • 1 x HDMI® port
    • 1 x Wi-Fi Module
    • 1 x Realtek 2.5Gb Ethernet port
    • 3 x Audio jacks
    • 1 x BIOS FlashBack™ button
    • 1 x PS/2 Keyboard/Mouse combo port
    Internal I/O Connectors Fan and Cooling related

    • 1 x 4-pin CPU Fan header
    • 1 x 4-pin CPU OPT Fan header
    • 3 x 4-pin Chassis Fan headers

    Power related

    • 1 x 24-pin Main Power connector
    • 1 x 8-pin +12V Power connector
    • 1 x 4-pin +12V Power connector

    Storage related

    • 2 x M.2 slots (Key M)
    • 4 x SATA 6Gb/s ports

    USB

    • 1 x USB 3.2 Gen 1 connector (supports USB Type-C® )
    • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
    • 2 x USB 2.0 headers support 4 additional USB 2.0 ports

    Miscellaneous

    • 3 x Addressable Gen 2 headers
    • 1 x Aura RGB header
    • 1 x Clear CMOS header
    • 1 x COM Port header
    • 1 x Front Panel Audio header (AAFP)
    • 1 x S/PDIF Out header
    • 1 x Speaker header
    • 1 x SPI TPM header (14-1pin)
    • 1 x 10-1 pin System Panel header
    Special Features ASUS 5X PROTECTION III
    – DIGI+ VRM
    – LANGuard
    – Overvoltage Protection
    – Safeslot Core+
    – Stainless-Steel Back I/O
    ASUS Q-Design
    – Q-DIMM
    – Q-LED Core
    – Q-Slot
    ASUS Thermal Solution
    – VRM heatsink design
    ASUS EZ DIY
    – BIOS FlashBack™ button
    – BIOS FlashBack™ LED
    Aura Sync
    – Aura RGB header
    – Addressable Gen 2 headers
    Software Features ASUS Exclusive Software
    Armoury Crate
    – Aura Creator
    – Aura Sync
    – Fan Xpert 2+
    – Power Saving
    AI Suite 3
    – TurboV EVO
    – DIGI+ VRM
    – PC Cleaner
    ASUS CPU-Z
    MyASUS
    Norton Anti-virus software (Free Trial version)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode
    BIOS 256 Mb Flash ROM, UEFI AMI BIOS
    Manageability WOL by PME, PXE
    Accessories Cables
    2 x SATA 6Gb/s cables
    Miscellaneous
    1 x ASUS Wi-Fi moving antennas
    1 x I/O Shield
    1 x Screw Package for M.2 SSD
    Documentation
    1 x User guide
    Operating System Windows® 11, Windows® 10 64-bit
    Form Factor mATX Form Factor
    9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
    Warranty 3 years
    Note Features, Price, Specifications are subject to change without notice. Images used for representation purposes only
    Additional information
    PlatformAMD
    Form FactorATX
    Stock Status:In Stock
    ColorBlack
    ManufacturerAsus
    Motherboar SocketAM5
    Motherboard ChipsetB650
    Motherboard Memory Speedup to 8000+
    Supported Memory TypeDDR5
    Max Memory Support192 GB
    Channel SupportedDual Channel
    Memory FeatureSupports ECC UDIMM memory (non-ECC mode), Supports non-ECC UDIMM memory, Supports un-buffered memory
    Expansion Slots1x PCIe 3.0 x16 slot (from AMD processor), 4000G and 3000 processors Supports x8 speed with Ryzen 3000G processors, 5000G, Supports x16 speed with Ryzen 5000, Supports x4 speed with AMD Athlon with Radeon Graphics processors 1x PCIe 3.0 x1 slot
    Back Panel I/O PortsLAN port HDMI DVI-D Keyboard / Mouse USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A USB 2.0 Ports Audio Connectors
    Internal I/O Connector1x 24-pin ATX main power connector, 1x 4-pin ATX 12V power connector, 1x 4-pin CPU fan connector, 1x 4-pin system fan connectors, 1x Chassis Intrusion connector, 1x Clear CMOS jumper, 1x Front panel audio connector, 1x M.2 slots (M-Key), 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 1xTPM module connector, 2x System panel connectors, 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 4x SATA 6Gb/s connectors
