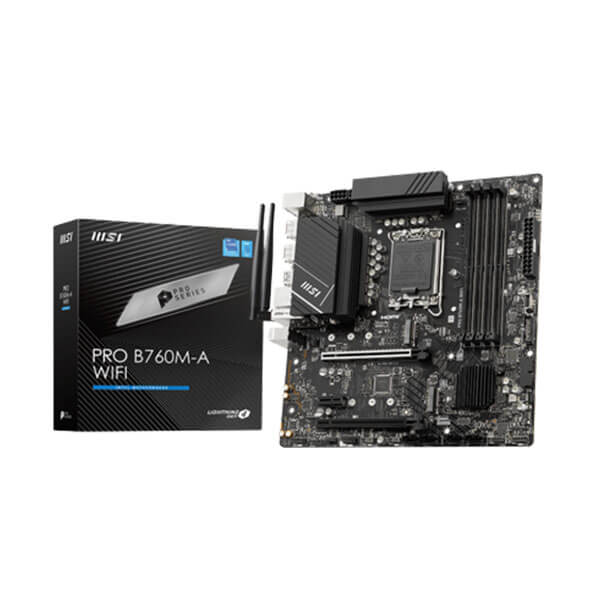

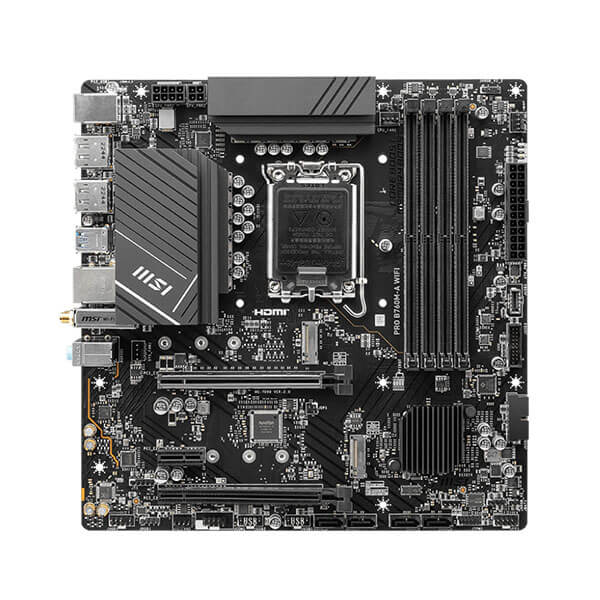

MSI Pro B760M-A WIFI DDR5 Motherboard
MSI Pro B760M-A WIFI DDR5 Motherboard - Image 2
MSI Pro B760M-A WIFI DDR5 Motherboard - Image 3
Click to enlarge
    MSI Pro B760M-A WIFI DDR5 Motherboard
    MSI Pro B760M-A WIFI DDR5 Motherboard - Image 2
    MSI Pro B760M-A WIFI DDR5 Motherboard - Image 3

    MSI Pro B760M-A WIFI DDR5 Motherboard

    249 Items sold in last 7 days
    Brand:
    27 People watching this product now!
    SKU: PRO-B760M-A-WIFI-DDR5 Categories: , ,

    Original price was: ₹29,999.00.Current price is: ₹14,875.00.

    Compare
    Add to wishlist
    Description

    Features:

    • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
    • Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
    • Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
    • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
    • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
    • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
    • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
    • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
    • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

    Specification:

    Model PRO-B760M-A-WIFI-DDR5
    Chipset INTEL B760
    CPU Support Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
    LGA 1700
    Memory 4x DDR5, Maximum Memory Capacity 192GB
    Memory Support 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 6800+ MHz
    • 1DPC 2R Max speed up to 6400+ MHz
    • 2DPC 1R Max speed up to 6000+ MHz
    • 2DPC 2R Max speed up to 5600+ MHz

    Supports Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Supports Intel® Extreme Memory Profile (XMP)
    Onboard Graphics Support HDMI™ 2.1, maximum resolution of 4K 60Hz
    Support DP 1.4, maximum resolution of 4K 60Hz
    Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
    2x HDMI™
    2x DisplayPort
    Expansion Slot 2x PCI-E x16 slot
    1x PCI-E x1 slot
    PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
    PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
    PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
    Storage 2x M.2 slot
    M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
    M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    4x SATA 6G port
    RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    USB 2x USB 2.0 (Rear)
    4x USB 2.0 (Front)
    2x USB 3.2 Gen1 Type A (Rear)
    4x USB 3.2 Gen1 Type A (Front)
    1x USB 3.2 Gen1 Type C (Front)
    2x USB 3.2 Gen2 Type A (Rear)
    LAN Realtek® RTL8125BG 2.5G LAN
    Wireless Lan & Bluetooth Intel® Wi-Fi 6E
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax

    Supports Bluetooth® 5.3, FIPS, FISMA
    Audio Realtek® ALC897 Codec
    7.1-Channel High Definition Audio
    Internal IO 1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x CPU Fan
    1x Pump Fan
    2x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Com Port (JCOM)
    2x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0
    4x USB 3.2 Gen1 Type A
    1x USB 3.2 Gen1 Type C
    LED Features 4x EZ Debug LED

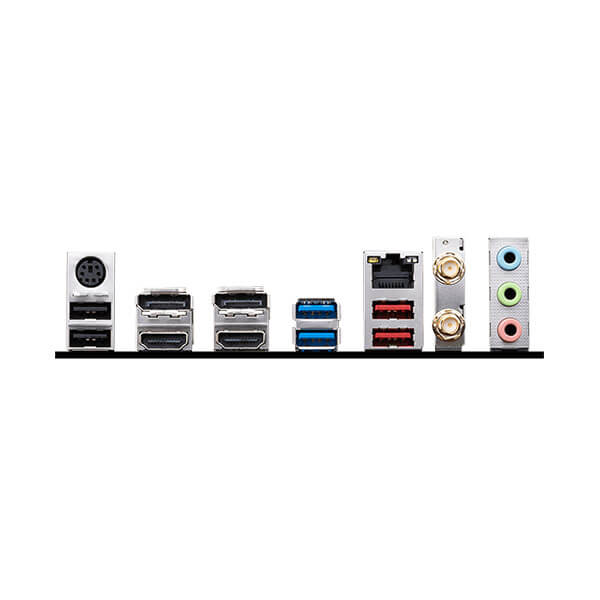

    Back Panel Ports
    • Keyboard / Mouse
    • DisplayPort
    • USB 3.2 Gen 1 5Gbps (Type-A)
    • 2.5G LAN
    • Wi-Fi / Bluetooth
    • Audio Connectors
    • USB 2.0
    • HDMI™
    • USB 3.2 Gen 2 10Gbps (Type-A)
    Operating System Support for Windows® 11 64-bit, Windows® 10 64-bit
    PCB Info mATX
    243.84mmx243.84mm
    Warranty 3 Years
    Note *** Features, Price, Specifications are subject to change without notice.
    Additional information
    ManufacturerMsi
    PlatformIntel
    Motherboar SocketLGA1700
    Motherboard ChipsetB760
    Motherboard Memory Speedup to 6800+
    Max Memory Support256 GB
    Form FactorMicro-ATX
    Supported Memory TypeDDR5
