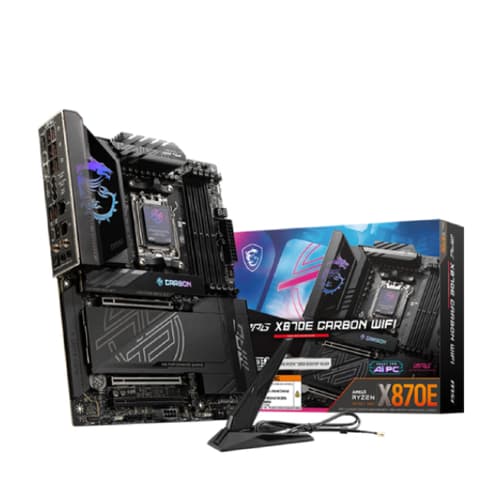

MSI MPG X870E Carbon WIFI ATX Motherboard

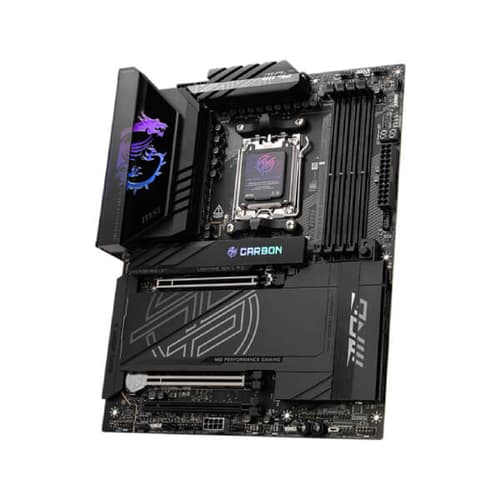

MSI MPG X870E Carbon WIFI ATX Motherboard - Image 2
MSI MPG X870E Carbon WIFI ATX Motherboard - Image 3
Click to enlarge
    MSI MPG X870E Carbon WIFI ATX Motherboard
    MSI MPG X870E Carbon WIFI ATX Motherboard - Image 2
    MSI MPG X870E Carbon WIFI ATX Motherboard - Image 3

    MSI MPG X870E Carbon WIFI ATX Motherboard

    62 Items sold in last 7 days
    Brand:
    53 People watching this product now!
    SKU: MPG-X870E-CARBON-WIFI Categories: , ,

    Original price was: ₹90,999.00.Current price is: ₹47,200.00.

    Compare
    Add to wishlist
    Description

    Features:

    MPG X870E CARBON WIFI

    • Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
    • Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
    • Ultra Performance: 18+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
    • Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
    • EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
    • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
    • Ultra Connect: USB4 and 5G LAN + 2.5G LAN with Wi-Fi 7 Solution – The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
    • Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience



    Specification:

    Model Name MPG X870E CARBON WIFI
    Chipset AMD X870E
    CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
    Socket AM5
    Memory
    • 4x DDR5 UDIMM, Maximum
    • Memory Capacity 256GB
      Memory Support DDR5 8400+(OC)/ 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s
      Ryzen 9000 Series Processors max. overclocking frequency:
      • 1DPC 1R Max speed up to 8400+ MT/s
      • 1DPC 2R Max speed up to 6400+ MT/s
      • 2DPC 1R Max speed up to 6400+ MT/s
      • 2DPC 2R Max speed up to 4800+ MT/s
    • Supports AMD POR Speed and JEDEC Speed
    • Supports Memory Overclocking and AMD EXPOTM
    • Supports Dual-Channel mode
    • Supports Non-ECC, Un-buffered memory
    • Supports CUDIMM, Clock Driver bypass mode only
    • CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
      • The DIMM slots on this motherboard have double-sided latches.
      • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
    Onboard Graphics
    • 1x HDMI
    • Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz
    • 2x Type-C DisplayPort
      USB4® port, supporting DisplayPort 1.4 with HBR3 over
    • USB Type-C, maximum resolution of 4K@60Hz
    • Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
    Slot`
    • 3x PCI-E x16 slot
    • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
    • PCI_E2 Gen PCIe 5.0 supports up to x4 (From CPU)
    • PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

    PCI_E1 & PCI_E2 slots
    • Supports PCIe 5.0 x16/x0 or x8/x4 (For Ryzen 9000/ 7000 Series processors)
    • Supports PCIe 4.0 x8/x0 (For Ryzen 8700/ 8600/ 8400 Series processors)
    • Supports PCIe 4.0 x4/x0 (For Ryzen 8500/ 8300 Series processor)
    PCI_E3 slot
    • Supports up to PCIe 4.0 x4

    • PCI_E1 & PCI_E2 & M.2_2 share the bandwidth, and PCIe version support varies depending on the CPU. Please refer to the PCIe configuration table in the manual for more details.
    Audio
    • Realtek ALC4080 Codec
    • 7.1-Channel USB High-Performance Audio
    • Supports up to 32-Bit/384 kHz playback on front panel
    • Supports S/PDIF output
    Storage
    • 4x M.2
    • M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
    • M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
    • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
    • M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
      4x SATA 6G
    • PCI_E1 & PCI_E2 & M.2_2 share the bandwidth, and PCIe version support varies depending on the CPU. Please refer to the PCIe configuration table in the manual for more details.
    RAID
    • Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices
    • Supports RAID 0, RAID 1 and Raid 10* for M.2 NVMe storage devices
    • RAID 10 for M.2 NVMe storage devices is only supported by AMD Ryzen™ 9000/7000 series CPU.
    USB
    • 4x USB 2.0 (Front)
    • 4x USB 5Gbps Type A (Front)
    • 9x USB 10Gbps Type A (Rear)
    • 2x USB 10Gbps Type C (Rear)
    • 1x USB 20Gbps Type C (Front)
    • 2x USB 40Gbps Type C (Rear)
    LAN
    • 1x Realtek 8126 5G LAN
    • 1x Realtek 8125 2.5G LAN
    Internal IO
    • 1x Power Connector(ATX_PWR)
    • 2x Power Connector(CPU_PWR)
    • 1x Power Connector(PCIE_PWR 8pin)
    • 1x CPU Fan
    • 1x Combo Fan (Pump_Sys Fan)
    • 5x System Fan
    • 1x EZ Conn-header (JAF_2)
    • 2x Front Panel (JFP)
    • 1x Chassis Intrusion (JCI)
    • 1x Front Audio (JAUD)
    • 1x Thermal Sensor connectors(T_SEN)
    • 3x Addressable V2 RGB LED connector (JARGB_V2)
    • 1x RGB LED connector(JRGB)
    • 4x USB 2.0 ports
    • 4x USB 5Gbps Type A ports
    • 1x USB 20Gbps Type C ports
    WIRELESS LAN & BLUETOOTH
    • Wi-Fi 7 Solution
    • The Wireless module is pre-installed in the M.2 (Key-E) slot
    • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
    • Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
    • Supports Bluetooth® 5.4**, MLO, 4KQAM
    • 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
    • The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
    LED FEATURE
    • 4x EZ Debug LED
    • 1x EZ Digit Debug LED
    • 1x EZ LED Control switch
    OPERATING SYSTEM Support for Windows 11 64-bit
    PCB Info ATX
    243.84mmx304.8mm
    BACK PANEL PORTS
    • USB 10Gbps Type-A
    • lash BIOS Button
    • Clear CMOS Button
    • Smart Button
    • 2.5G LAN
    • 5G LAN
    • Audio Connectors
    • HDMI
    • USB 40Gbps Type-C
    • USB 10Gbps Type-C
    • USB 10Gbps Type-A
    • USB 10Gbps Type-C
    • Wi-Fi / Bluetooth
    • Optical S/PDIF Out
    BOX CONTENT
    • Eurapeon Union Regulatory Notice
    • Quick installatgion Guide
    • Cable sticker
    • Shout Out Flyer
    • EZ Wi-Fi Antenna
    • EZ M.2 Clip ll
    • EZ M.2 Clip ll Remover
    • 1 to EZ Conn-Cable(V2)
    • USB Drive
    • 2 x Sata Cables
    • ARGB Extension cable
    • 1 x 2 RGB Extension Cable
    • EZ Front panal cable


    Warranty 3Years
    Note *** Images are for Representation purposes only

    *** Features, Price, Specifications are subject to change without notice.
    Additional information
    ManufacturerMsi
    PlatformAMD
    ColorBlack
    Motherboar SocketAM5
    Motherboard ChipsetX870
    Max Memory Support256 GB
    Supported Memory TypeDDR5
    Channel SupportedDual Channel
    Memory FeatureSupports DDR5 ECC/non-ECC, un-buffered memory, Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
    Graphics Port1 x HDMI,2 x USB
    Expansion Slots– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module, – 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode, – 15μ Gold Contact in VGA PCIe Slot (PCIE1), – Supports AMD CrossFire™, CPU: – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode Chipset:
    Back Panel I/O Ports1 x BIOS Flashback Button, 1 x HDMI Port, 1 x Line Out Jack (Gold Audio Jack), 1 x Microphone Input Jack (Gold Audio Jack), 1 x Optical SPDIF Out Port, 1 x RJ-45 LAN Port, 2 x Antenna Ports, 2 x USB4 Type-C Ports (40 Gb/s), 4 x USB 3.2 Gen1 Type-A Ports, x USB 2.0 Ports
    Internal I/O Connector1 x Power LED and Speaker Header, 1 x RGB LED Header, 1 x SPI TPM Header, 1 x Thermistor Cable Header, 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control), 3 x Addressable LED Headers, 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
    Form FactorATX
