-46%

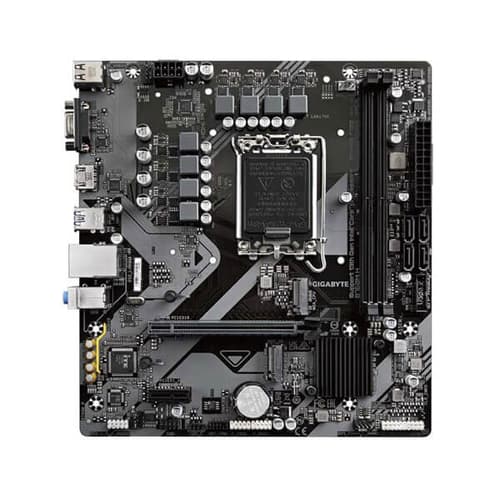

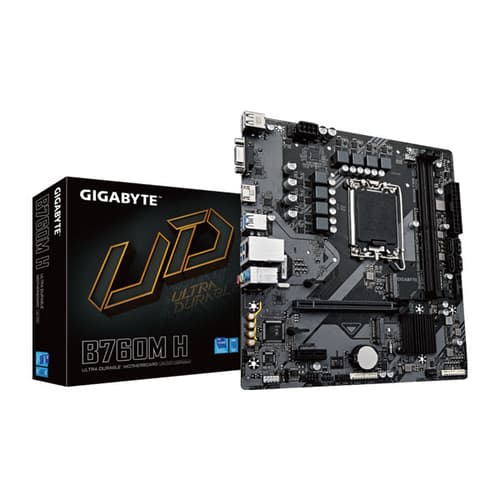

Gigabyte B760M H DDR5 M-ATX Motherboard
Gigabyte B760M H DDR5 M-ATX Motherboard - Image 2
Gigabyte B760M H DDR5 M-ATX Motherboard - Image 3
Click to enlarge
    Gigabyte B760M H DDR5 M-ATX Motherboard
    Gigabyte B760M H DDR5 M-ATX Motherboard - Image 2
    Gigabyte B760M H DDR5 M-ATX Motherboard - Image 3

    Gigabyte B760M H DDR5 M-ATX Motherboard

    64 Items sold in last 7 days
    Brand:
    10 People watching this product now!
    SKU: B760M-H Categories: , ,

    Original price was: ₹17,400.00.Current price is: ₹9,450.00.

    Compare
    Add to wishlist
    Description

    Features:

    • Supports Intel Core 14th/ 13th /12th processors
    • Unparalleled Performance：Hybrid 6+1+1 Phases Digital VRM Solution
    • Dual Channel DDR5：2*DIMMs XMP Memory Module Support
    • Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
    • EZ-Latch：PCIe 4.0×16 Slot with Quick Release Design
    • Fast Networks：GbE LAN
    • Extended Connectivity：HDMI, D-Sub
    • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

    Hybrid Digital VRM Design:

    • 6+1+1 Phases Low RDS(on) MOSFETs
    • Premium Choke and Capacitors to improve transient response and minimize oscillation

    PCIe 4.0 Design:

    GIGABYTE B760 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience triple bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.

    Unlock DDR5:

    GIGABYTE is offering a tested and proven platform that has memory overclocking capability up to 8000 and beyond. For DDR5 XMP Memory, all users need to do to attain high memory performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard

    Smart Fan 6:

    Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

    Specifications:

    Model: B760M H
    CPU:
    • LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
    • L3 cache varies with CPU

    (Please refer to “CPU Support List” for more information.)
    Chipset: Intel B760 Express Chipset
    Memory:
    • Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
    • 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
    • Dual channel memory architecture
    • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    • Support for Extreme Memory Profile (XMP) memory modules

    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)
    Onboard Graphics: Integrated Graphics Processor-Intel HD Graphics support:
    – 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
    – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support native HDMI 2.1 TMDS compatible ports.

    (Graphics specifications may vary depending on CPU support.)
    Audio:
    • Realtek Audio CODEC
    • High Definition Audio
    • 2/4/5.1/7.1-channel

    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

    • Support for S/PDIF Out
    LAN: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
    Expansion Slots: CPU:

    • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

    *The PCIEX16 slot can only support a graphics card or an NVMe SSD.

    Chipset:

    • 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
    Storage Interface: CPU:

    • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU)

    Chipset:

    • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB)
    • 4 x SATA 6Gb/s connectors

    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
    USB: Chipset:

    • 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    • 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    Internal I/O Connectors:
    • 1 x 24-pin ATX main power connector
    • 1 x 8-pin ATX 12V power connector
    • 1 x CPU fan header
    • 2 x system fan headers
    • 1 x RGB LED strip header
    • 2 x M.2 Socket 3 connectors
    • 4 x SATA 6Gb/s connectors
    • 1 x front panel header
    • 1 x front panel audio header
    • 1 x S/PDIF Out header
    • 1 x USB 3.2 Gen 1 header
    • 2 x USB 2.0/1.1 headers
    • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    • 1 x serial port header
    • 1 x Clear CMOS jumper
    Back Panel Connectors:
    • 2 x USB 2.0/1.1 ports
    • 1 x D-Sub port
    • 1 x HDMI port
    • 4 x USB 3.2 Gen 1 ports
    • 1 x RJ-45 port
    • 3 x audio jacks
    I/O Controller: iTE I/O Controller Chip
    H/W Monitoring:
    • Voltage detection
    • Temperature detection
    • Fan speed detection
    • Water cooling flow rate detection
    • Fan fail warning
    • Fan speed control

    * Whether the fan speed control function is supported will depend on the fan you install.
    BIOS:
    • 1 x 128 Mbit flash
    • Use of licensed AMI UEFI BIOS
    • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Unique Features:
    • Support for GIGABYTE Control Center (GCC)

    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

    • Support for Q-Flash
    Bundled Software:
    • Norton Internet Security (OEM version)
    • LAN bandwidth management software
    Operating System:
    • Support for Windows 11 64-bit
    • Support for Windows 10 64-bit
    Form Factor: Micro ATX Form Factor; 23.0cm x 21.5cm
    Warranty: 3 Years
    Note: Features, Price, Specifications are subject to change without notice. Images used for representation purposes only
    Additional information
    Stock Status:In Stock
    ManufacturerGigabyte
    PlatformIntel
    ColorBlack
    Motherboar SocketLGA1700
    Motherboard ChipsetB760
    Max Memory Support128 GB
    Supported Memory TypeDDR5
    Channel SupportedDual Channel
    Memory FeatureSupports DDR5 ECC/non-ECC, un-buffered memory, Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
    Graphics Port1x HDMI, 1x VGA
    Expansion Slots– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module, – 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode, – 15μ Gold Contact in VGA PCIe Slot (PCIE1), – Supports AMD CrossFireâ„¢, CPU: – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode Chipset:
    Back Panel I/O Ports1 x BIOS Flashback Button, 1 x HDMI Port, 1 x Line Out Jack (Gold Audio Jack), 1 x Microphone Input Jack (Gold Audio Jack), 1 x Optical SPDIF Out Port, 1 x RJ-45 LAN Port, 2 x Antenna Ports, 2 x USB4 Type-C Ports (40 Gb/s), 4 x USB 3.2 Gen1 Type-A Ports, x USB 2.0 Ports
    Internal I/O Connector1 x Power LED and Speaker Header, 1 x RGB LED Header, 1 x SPI TPM Header, 1 x Thermistor Cable Header, 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control), 3 x Addressable LED Headers, 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
    Form FactorATX
