-44%
Gigabyte B650M Gaming WIFI M-ATX Motherboard - Image 1

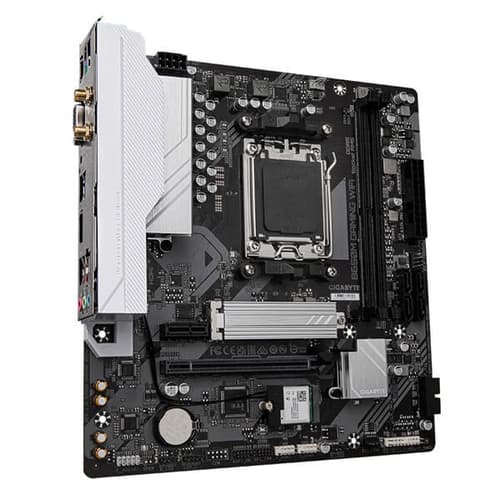

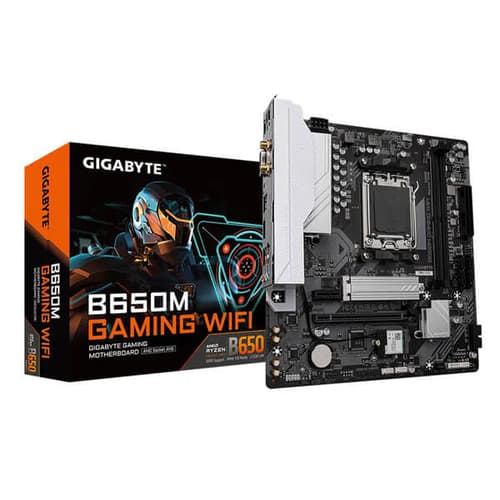

Gigabyte B650M Gaming WIFI M-ATX Motherboard
Click to enlarge
    Gigabyte B650M Gaming WIFI M-ATX Motherboard
    Gigabyte B650M Gaming WIFI M-ATX Motherboard

    Gigabyte B650M Gaming WIFI M-ATX Motherboard

    196 Items sold in last 7 days
    Brand:
    14 People watching this product now!
    SKU: B650M-GAMING-WI-FI Categories: , ,

    Original price was: ₹17,200.00.Current price is: ₹9,650.00.

    Compare
    Add to wishlist
    Description

    Features:

    • AMD Socket AM5ļ¼šSupports AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
    • Unparalleled Performanceļ¼š5+2+2 Phases Digital VRM Solution
    • Dual Channel DDR5ļ¼š2*SMD DIMMs with AMD EXPOā„¢ & Intel XMP Memory Module Support
    • SuperSpeed Storageļ¼šPCIe 4.0 x4 M.2 Connector
    • EZ-Latchļ¼šPCIe x16 Slot with Quick Release Design
    • Fast Networksļ¼š2.5GbE LAN & 802.11ac Wi-Fi
    • Extended Connectivityļ¼šHDMI , D-sub
    • Smart Fan 6ļ¼šFeatures Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
    • Q-Flash Plusļ¼šUpdate BIOS Without Installing the CPU, Memory and Graphics Card

    Specifications:

    Model B650M GAMING WIFI
    CPU AMD Socket AM5, support for:
    AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
    (Please refer “CPU Support List” for more information.)
    Chipset AMD B650
    Memory Support for DDR5 7600(OC)/ 7200(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
    2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for AMD EXtended Profiles for Overclocking (AMD EXPOā„¢) and Extreme
    Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
    Onboard Graphics Integrated Graphics Processor with AMD Radeon Graphics support:
    – 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
    – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support for native HDMI 2.1 TMDS compatible ports.
    (Graphics specifications may vary depending on CPU support.)
    Audio Realtek Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
    LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    Wireless Communication module Realtek Wi-Fi RTL8821CE
    – WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
    – BLUETOOTH 5.0
    – Support for 11ac wireless standard
    (Actual data rate may vary depending on environment and equipment.)
    Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    – AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x16 mode
    – AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
    – AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    Chipset:
    – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
    Storage Interface 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
    – AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x4/x2 SSDs
    – AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    – AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
    4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, and RAID 10 support for SATA storage devices
    USB CPU:
    – 2 x USB 3.2 Gen 1 ports on the back panel
    – 1 x USB 2.0/1.1 port on the back panel
    Chipset:
    – 2 x USB 3.2 Gen 1 ports available through the internal USB header
    – 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
    Chipset+USB 2.0 Hub:
    – 2 x USB 2.0/1.1 ports available through the internal USB header
    Internal I/O Connectors 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    2 x system fan headers
    2 x addressable LED strip headers
    1 x RGB LED strip header
    1 x M.2 Socket 3 connector
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
    1 x Clear CMOS jumper
    Back Panel Connectors 4 x USB 2.0/1.1 ports
    1 x PS/2 keyboard/mouse port
    1 x D-Sub port (Note)
    1 x Q-Flash Plus button
    2 x USB 3.2 Gen 1 ports
    1 x HDMI port (Note)
    1 x RJ-45 port
    3 x audio jacks

    (Note) Actual support may vary by CPU.
    I/O Controller iTEĀ® I/O Controller Chip
    H/W Monitoring Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control

    * Whether the fan speed control function is supported will depend on the fan you install.
    BIOS 1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Unique Features Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    Support for Q-Flash
    Support for Q-Flash Plus
    Bundled Software Norton Internet Security (OEM version)
    LAN bandwidth management software
    Operating System Support for Windows 11 64-bit
    Support for Windows 10 64-bit
    Form Factor Micro ATX Form Factor; 24.0cm x 22.5cm
    Warranty 3 Years
    Note Features, Price, Specifications are subject to change without notice. Images used for representation purposes only
    Additional information
    Form FactorATX
    Stock Status:In Stock
    Motherboar SocketAM5
    Supported Memory TypeDDR5
    ManufacturerGigabyte
    PlatformAMD
    ColorBlack
