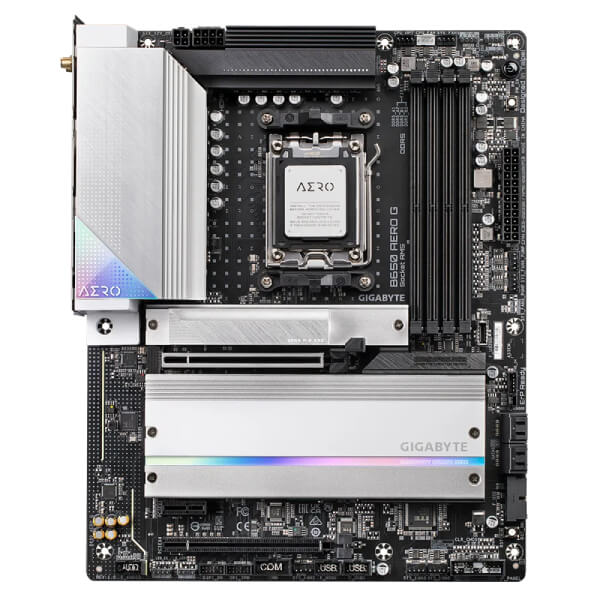

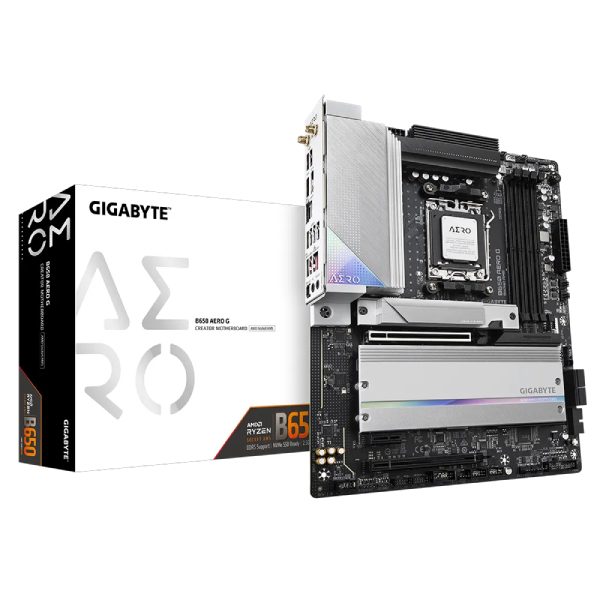

Gigabyte B650 Aero G WIFI ATX Motherboard

• AMD B650

• AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors

• Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
• 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory module
  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)

• 1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840×2160@144 Hz
  * Support for drawing tablets and 20V@3A of power delivery.
  * Support for DisplayPort 1.4 version.
• 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
  * Support for HDMI 2.1 version and HDCP 2.3.
  ** Support native HDMI 2.1 TMDS compatible ports.
  (Graphics specifications may vary depending on CPU or graphics card support.)

• Realtek ALC1220-VB CODEC

*The back panel line out jack supports DSD audio.

• High Definition Audio
• 2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

• Support for S/PDIF Out

• Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.2
• Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
  (Actual data rate may vary depending on environment and equipment.)

• AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
• AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
• AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
  * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
  * The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector.
• 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

• AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
• AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
• AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

  1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

• AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
• AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
• AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

  1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs

4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

• 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
• 2 x USB 3.2 Gen 2 Type-A ports (red) on the back pane

CPU + USB 2.0 Hub:

• 2 x USB 2.0/1.1 ports on the back panel

Chipset:

• 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header
• 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
• 2 x USB 3.2 Gen 1 ports available through the internal USB header
• 4 x USB 2.0/1.1 ports available through the internal USB headers

Chipset+USB 3.2 Gen 1 Hub:4 x USB 3.2 Gen 1 ports on the back panel

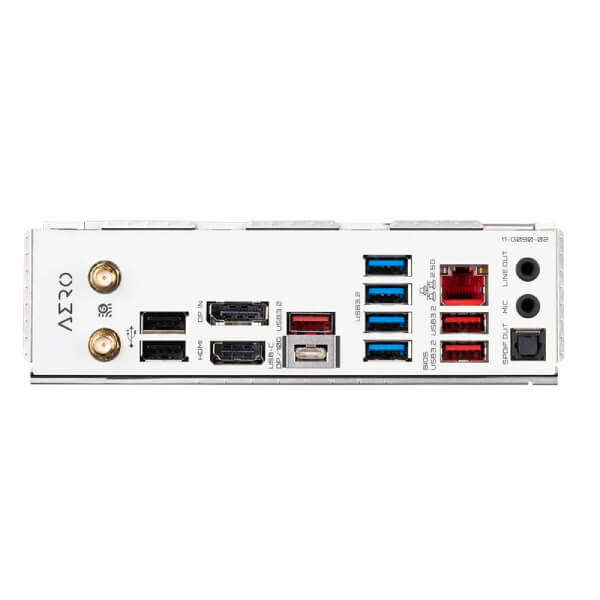

• 2 x SMA antenna connectors (2T2R)
• 2 x USB 2.0/1.1 ports
• 1 x DisplayPort In port
• 1 x HDMI port
• 3 x USB 3.2 Gen 2 Type-A ports (red)
• 1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support
• 4 x USB 3.2 Gen 1 ports
• 1 x RJ-45 port
• 2 x audio jacks
• 1 x optical S/PDIF Out connector

• iTE I/O Controller Chip

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control
• * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
• Noise detection

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Support for GIGABYTE Control Center (GCC)
• * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• Support for Q-Flash
• Support for Q-Flash Plus

• Norton Internet Security (OEM version)
• LAN bandwidth management software

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit

• ATX Form Factor; 30.5cm x 24.4cm

*** Features, Price, Specifications are subject to change without notice.
