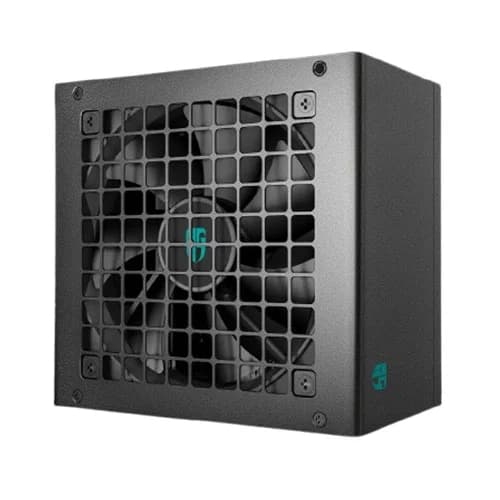

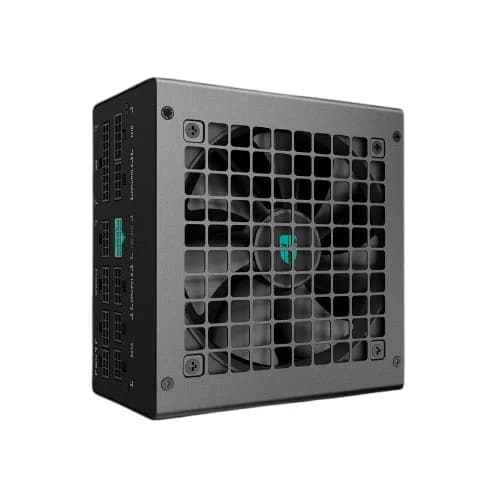

DeepCool Gamer Storm PN850M Gold ATX 3.1 Fully Modular Smps

Features:

• Type – ATX12V V3.1
• Product Dimensions – 150×140×86mm (W x L x H)
• Fan Size – 120mm
• Topology – Active PFC + Full Bridge SRC LLC + DC to DC
• Capacitors – Japanese Bulk Capacitor
• Power Good Signal – 100-150ms
• Hold Up Time – ≥16ms(80% Load)
• Efficiency – ≥90% Under Typical Load(50% Loading)
• Protection – OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
• Operation Temperature – 0 – 40℃
• MTBF – 100,000 Hours

FUTURE PROOF

With the ability to provide twice the total system power for 0.1 ms, random power spikes will never be an issue. The PN850M will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.

GRACEFUL GOLD

80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.

POWER YOU CAN TRUST

Through the use of a main Japanese electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN850M can keep the hold-up time to ≥ 16 ms under a high load of 80%

PCI-E 5.1 POWER

Equipped with a high-grade 105C-resistant 16AWG copper-core embossed 12V-2×6 cable, the PN850M provides up to 600W for modern GPUs.

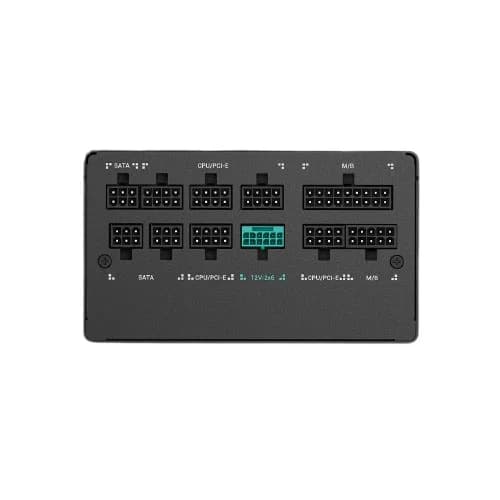

SLEEVED CABLES

The PN850M has been outfitted with sleeved cables right out of the box A welcomed upgrade to add to the premium asesthic and feel of the PSU.

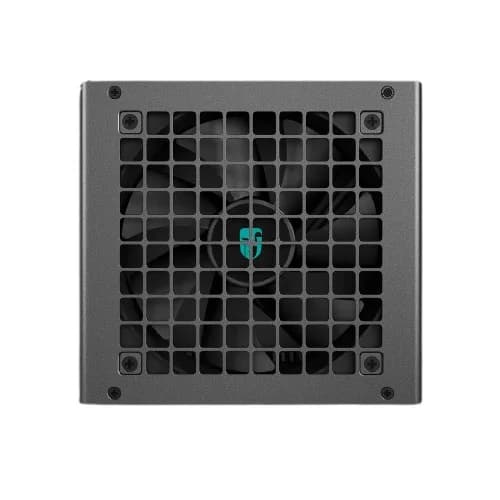

DYNAMIC FDB FAN

The PN850M comes equipped with a dynamic 120mm FDB fan that will adjust its speed based on the cooling needs of the PSU.
