Cooler Master V Platinum 1600 Watt V2 ATX 3.1 Fully Modular Smps
Original price was: ₹56,199.00.₹36,050.00Current price is: ₹36,050.00.
Features:
- Dual 40 series GPU support
- ATX 3.1 support & two durable 90° 12V-2×6 cables
- Advanced heat dissipation
- Ultra-quiet Mobius fan
- 80 Plus Platinum certification
- 12-year warranty

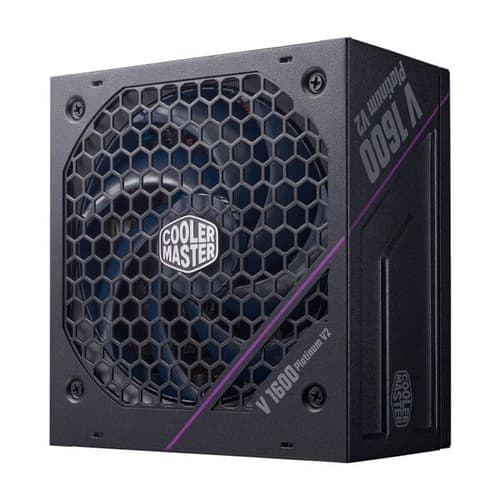

Ultra-quiet Mobius fan: An ultra-quiet Mobius fan featuring high-performance oil reflow and an innovative ring blade design.
80 Plus Platinum efficiency certification: This unit is certified to achieve more than 92% efficiency at typical loads.
Optimized thermal performance: Anodic-coated heat sinks keep average component temperatures lower than a traditional heat
sink for enhanced durability and a prolonged life span.
ATX 3.1 support & a durable 12V-2×6 cable: Includes ATX 3.1 support and a 90-degree 12+4pin (12V-2×6) PCIe 5.1 cable featuring
lower temperatures, enhanced durability, and improved safety.
Dual 40 series GPU support: Two 12V-2×6 connectors for dual 40 series GPU support.
Protective coating: A conformal coating provides protection against dust, moisture, and insects.
Interleaved PFC design: An interleaved PFC decreases power loss by minimizing the current and reducing interference.
Smart thermal control mode: Fan speed is automatically adjusted according to the PSU’s operating temperature.
Silent fan performance with a zero-RPM mode: This unit defaults to zero fan spin, providing silent fan performance.

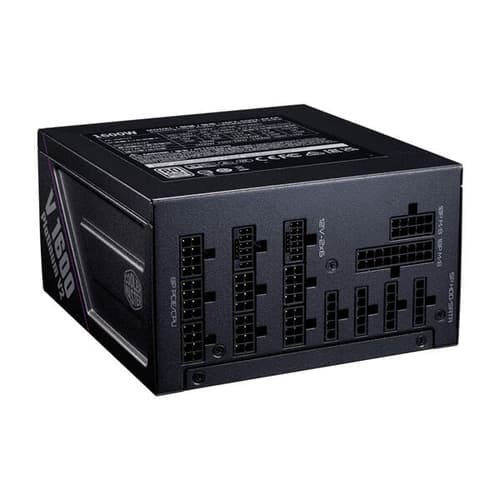

Fully modular cabling: Efficiently reduces clutter, increases airflow, and improves overall efficiency and thermal performance.
High-quality Japanese capacitors: Large, high-quality Japanese capacitors feature reduced ripple noise and enhanced reliability.
12-year warranty: This unit comes with a standard limited manufacturing warranty of 12 years from the date of purchase.
Specification:
| Model | V Platinum 1600 V2 |
| Item Code | MPZ-G002-AFAP-BIN |
| ATX Version | ATX 12V Ver. 3.1 |
| PFC | Active PFC |
| Input Voltage | 100 – 240V |
| Input Current | 16 – 8A |
| Input Frequency | 50 – 60Hz |
| Dimensions (L x W x H) | 160 x 150 x 86mm |
| Fan Size | 135 mm |
| Fan Bearing | LDB (Mobius FAN) |
| Fan Speed | 2400±10% rpm |
| Efficiency | ≥ 92% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Platinum |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0 ~ 50℃ |
| Power Good Signal | 100 – 150ms |
| Hold Up Time | ≥ 16ms |
| MTBF | >100,000 hours |
| Protections | OPP / OVP / OTP / OCP/ SCP / UVP / Surge & Inrush Protection |
| Regulatory | cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on region’s request.) |
| Connectors | |
| ATX 24 Pin | x1 = 1x (650mm) |
| EPS 4+4 Pin | x1 = 1x (650mm) |
| EPS 8 Pin | x1 = 1x (650mm) |
| SATA | x16 = 4x (500+120+120+120mm) |
| Peripheral 4 Pin | x4 = 1x (500+120+120+120mm) |
| PCI-e 6+2 Pin | x5 = 5x (550mm) |
| 12V-2×6 | x2 = 2x (650mm) |
| Warranty | 12 years |
| Note | *** Images are for Representation purposes only
*** Features, Price, Specifications are subject to change without notice. |
| SMPS Wattage | 1600 Watt |
|---|---|
| SMPS Series | V SERIES |
| SMPS Certification | 80 Plus Platinum |
| SMPS PCIe Connector (6+2) | 5 |
| SMPS SATA Connector | 16 |
| SMPS Peripheral (4-Pin) | 4 |
