-30%

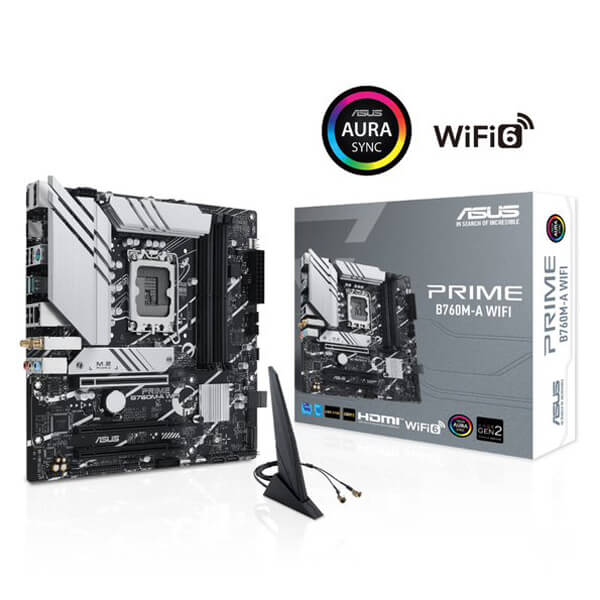

Asus Prime B760M-A WIFI DDR5 M-ATX Motherboard
Asus Prime B760M-A WIFI DDR5 M-ATX Motherboard - Image 2
Asus Prime B760M-A WIFI DDR5 M-ATX Motherboard - Image 3
Click to enlarge
    Asus Prime B760M-A WIFI DDR5 M-ATX Motherboard
    Asus Prime B760M-A WIFI DDR5 M-ATX Motherboard - Image 2
    Asus Prime B760M-A WIFI DDR5 M-ATX Motherboard - Image 3

    Asus Prime B760M-A WIFI DDR5 M-ATX Motherboard

    80 Items sold in last 7 days
    Brand:
    53 People watching this product now!
    SKU: PRIME-B760M-A-WIFI Categories: , ,

    Original price was: ₹22,300.00.Current price is: ₹15,500.00.

    Compare
    Add to wishlist
    Description

    Features:

    • Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
    • Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
    • Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
    • Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
    • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

    ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

    Specifications:

    Model PRIME B760M-A WIFI
    CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
    Chipset Intel® B760 Chipset
    Memory 4 x DIMM slots, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    OptiMem II
    Graphics 1 x DisplayPort
    2 x HDMITM ports
    Expansion Slots Intel® 13th & 12th Gen Processors
    1 x PCIe 4.0 x16 slot
    Intel® B760 Chipset
    1 x PCIe 4.0 x16 slot (supports x4 mode)
    1 x PCIe 4.0 x16 slot (supports x1 mode)
    Storage Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports*
    Intel® 13th & 12th Gen Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    Intel® B760 Chipset
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    4 x SATA 6Gb/s ports
    Ethernet 1 x Realtek 2.5Gb Ethernet
    Wireless & Bluetooth Wi-Fi 6
    2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5GHz frequency band
    Bluetooth v5.2
    USB Rear USB (Total 6 ports)
    2 x USB 3.2 Gen 2 ports (2 x Type-A )
    4 x USB 2.0 ports (4 x Type-A)
    Front USB (Total 10 ports)
    2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
    1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    1 x USB 2.0 header supports 1 additional USB 2.0 port
    Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    – Supports up to 24-Bit/192 kHz playback
    Audio Features
    – Audio Shielding
    – Premium audio capacitors
    – Dedicated audio PCB layers
    Back Panel I/O Ports 2 x USB 3.2 Gen 2 ports (2 x Type-A )
    4 x USB 2.0 ports (4 x Type-A)
    1 x DisplayPort
    2 x HDMITM ports
    1 x Wi-Fi Module
    1 x Realtek 2.5Gb Ethernet port
    3 x Audio jacks
    1 x PS/2 Keyboard/Mouse combo port
    Internal I/O Connectors Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    2 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    Storage related
    2 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
    1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    1 x USB 2.0 header supports 1 additional USB 2.0 port
    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x Aura RGB header
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (AAFP)
    1 x LPT header
    1 x S/PDIF Out header
    1 x SPI TPM header (14-1pin)
    1 x 20-3 pin System Panel header with Chassis intrude function
    Special Features ASUS 5X PROTECTION III
    – DIGI+ VRM
    – LANGuard
    – Overvoltage Protection
    – SafeSlot Core+
    – Stainless-Steel Back I/O
    ASUS Q-Design
    – Q-DIMM
    – Q-LED Core
    – Q-Slot
    ASUS Thermal Solution
    – M.2 heatsink
    – VRM heatsink design
    ASUS EZ DIY
    – ProCool
    Aura Sync
    – Aura RGB header
    – Addressable Gen 2 headers
    Software Features ASUS Exclusive Software
    Armoury Crate
    – Aura Creator
    – Aura Sync
    – Fan Xpert 2+
    – Power Saving
    AI Suite 3
    – Digi+ VRM
    – PC Cleaner
    ASUS CPU-Z
    MyAsus
    Norton Deluxe (60 Days Free Trial)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode
    BIOS 128 Mb Flash ROM, UEFI AMI BIOS
    Manageability WOL by PME, PXE
    Accessories Cables
    2 x SATA 6Gb/s cables
    Miscellaneous
    1 x ASUS Wi-Fi moving antennas
    1 x I/O Shield
    1 x M.2 Rubber Package
    1 x Screw package for M.2 SSD
    Documentation
    1 x User guide
    Operating System Windows® 11, Windows® 10 64-bit
    Form Factor mATX Form Factor
    9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
    Warranty 3 Years
    Note Features, Price, Specifications are subject to change without notice. Images used for representation purposes only
    Additional information
    ColorBlack
    Stock Status:In Stock
    ManufacturerAsus
    PlatformIntel
    Motherboar SocketLGA1700
    Motherboard ChipsetB760
    Motherboard Memory Speedup to 7200+
    Max Memory Support128 GB
    Form FactorATX
    Supported Memory TypeDDR5
