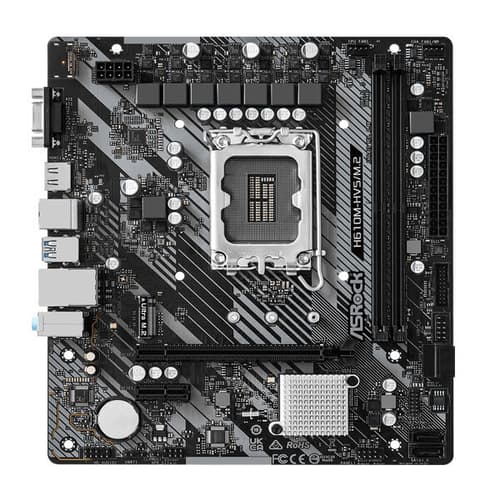

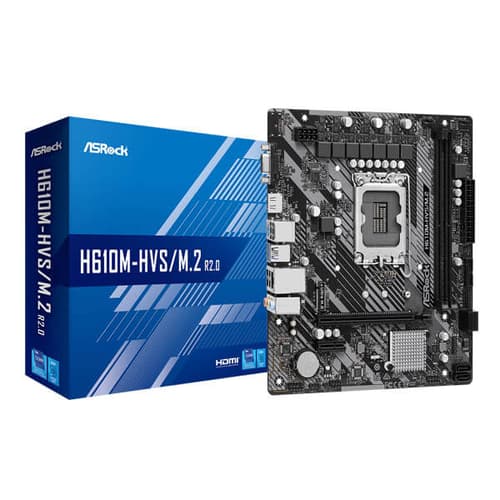

ASRock H610M-HVS/M.2 R2.0 DDR4 M-ATX Motherboard
ASRock H610M-HVS/M.2 R2.0 DDR4 M-ATX Motherboard - Image 2
ASRock H610M-HVS/M.2 R2.0 DDR4 M-ATX Motherboard - Image 3
Click to enlarge
    ASRock H610M-HVS/M.2 R2.0 DDR4 M-ATX Motherboard
    ASRock H610M-HVS/M.2 R2.0 DDR4 M-ATX Motherboard - Image 2
    ASRock H610M-HVS/M.2 R2.0 DDR4 M-ATX Motherboard - Image 3

    ASRock H610M-HVS/M.2 R2.0 DDR4 M-ATX Motherboard

    128 Items sold in last 7 days
    Brand:
    14 People watching this product now!
    SKU: H610M-HVS-M-2-R2-0 Categories: , ,

    Original price was: ₹9,000.00.Current price is: ₹5,500.00.

    Compare
    Add to wishlist
    Description

    Features:

    • Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
    • 6+1+1 Phase Power Design
    • Supports DDR4 3200MHz
    • 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
    • Graphics Output Options: HDMI, D-Sub
    • Realtek ALC897 7.1 CH HD Audio Codec
    • 4 SATA3
    • 1 Ultra M.2 (PCIe Gen3 x4)
    • 4 USB 3.2 Gen1 (2 Rear, 2 Front)
    • 6 USB 2.0 (4 Rear, 2 Front)
    • Realtek Gigabit LAN

    Specification:

    Model H610M-HVS/M.2 R2.0
    Unique Feature ASRock Super Alloy

    • Premium Power Choke
    • Sapphire Black PCB
    • High Density Glass Fabric PCB

    ASRock Ultra M.2 (PCIe Gen3x4)
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop
    CPU
    • Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
    • 6+1+1 Power Phase design
    • Supports Intel® Hybrid Technology
    • Supports Intel® Turbo Boost Max 3.0 Technology
    Chipset Intel® H610
    Memory
    • Dual Channel DDR4 Memory Technology
    • 2 x DDR4 DIMM Slots
    • Supports DDR4 non-ECC, un-buffered memory up to 3200
    • Supports ECC UDIMM memory modules (operate in non-ECC mode)
    • Max. capacity of system memory: 64GB
    • Supports Intel® Extreme Memory Profile (XMP) 2.0
    BIOS
    • 128Mb AMI UEFI Legal BIOS with multilingual GUI support
    • ACPI 6.0 Compliant wake up events
    • SMBIOS 2.7 Support
    • CPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment
    Graphics
    • Intel® Xe Graphics Architecture (Gen 12)
    • Dual graphics output: support HDMI and D-Sub ports by independent display controllers
    • Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
    • Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
    • Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port
    Audio
    • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
    • Supports Surge Protection
    LAN
    • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    • 1 x Realtek RTL8111H
    • Supports Wake-On-LAN
    • Supports Lightning/ESD Protection
    • Supports Energy Efficient Ethernet 802.3az
    • Supports PXE
    Slots CPU:

    • 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode*

    Chipset:

    • 1 x PCIe 3.0 x1 Slot (PCIE1)
    Storage Chipset:

    • 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
    • 4 x SATA3 6.0 Gb/s Connectors
    Connector
    • 1 x SPI TPM Header
    • 1 x Chassis Intrusion and Speaker Header
    • 1 x CPU Fan Connector (4-pin)*
    • 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
    • 1 x 24 pin ATX Power Connector
    • 1 x 8 pin 12V Power Connector
    • 1 x Front Panel Audio Connector
    • 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
    • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
    Rear Panel I/O
    • 1 x PS/2 Mouse/Keyboard Port
    • 1 x D-Sub Port
    • 1 x HDMI Port
    • 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
    • 4 x USB 2.0 Ports (Supports ESD Protection)
    • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    • HD Audio Jacks: Line in / Front Speaker / Microphone
    Software and UEFI Software

    • ASRock Motherboard Utility (A-Tuning)
    • ASRock XFast LAN

    UEFI

    • ASRock EZ Mode
    • ASRock Full HD UEFI
    • ASRock My Favorites in UEFI
    • ASRock Instant Flash
    Support CD Drivers, Utilities, AntiVirus Software (Trial Version)
    Accessories
    • Quick Installation Guide, Support CD, I/O Shield
    • 2 x SATA Data Cables
    • 1 x Screw for M.2 Socket
    Hardware Monitor
    • Fan Tachometer: CPU, Chassis/Water Pump Fans
    • Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
    • Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
    • CASE OPEN detection
    • Voltage monitoring: CPU Vcore, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, VCCSA, +1.05V PROC, +12V, +5V, +3.3V
    Form Factor
    • Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
    • Solid Capacitor design
    OS Microsoft® Windows® 10 64-bit / 11 64-bit
    Certifications
    • FCC, CE
    • ErP/EuP ready (ErP/EuP ready power supply is required)
    Warranty 3 Years
    Note Features, Price, Specifications are subject to change without notice. Images used for representation purposes only



    Additional information
    Stock Status:In Stock
    ManufacturerASRock
    PlatformIntel
    ColorBlack
    Motherboar SocketLGA1700
    Motherboard ChipsetH610
    Motherboard Memory Speedup to 3200
    Max Memory Support64 GB
    Supported Memory TypeDDR4
    Channel SupportedDual Channel
    Memory FeatureSupports non-ECC, un-buffered memory
    Graphics Port1x HDMI
    Form FactorMicro-ATX
