-49%

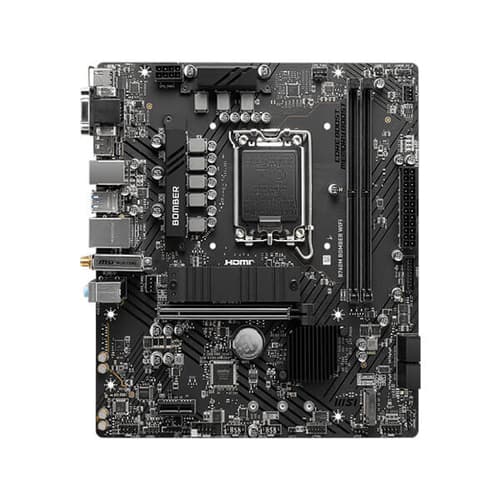

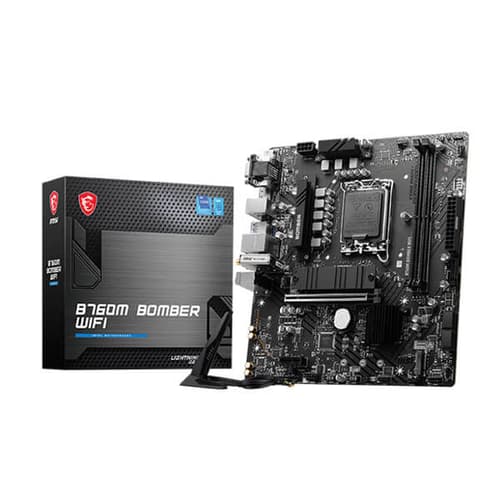

MSI B760M Bomber WIFI M-ATX Motherboard
MSI B760M Bomber WIFI M-ATX Motherboard - Image 2
MSI B760M Bomber WIFI M-ATX Motherboard - Image 3
Click to enlarge
    MSI B760M Bomber WIFI M-ATX Motherboard
    MSI B760M Bomber WIFI M-ATX Motherboard - Image 2
    MSI B760M Bomber WIFI M-ATX Motherboard - Image 3

    MSI B760M Bomber WIFI M-ATX Motherboard

    134 Items sold in last 7 days
    Brand:
    21 People watching this product now!
    SKU: B760M-BOMBER-WIFI Category:

    Original price was: ₹21,999.00.Current price is: ₹11,200.00.

    Compare
    Add to wishlist
    Description

    Features:

    • Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
    • Supports DDR5 Memory, Dual Channel DDR5-6400+MHz (OC)
    • Core Boost : With premium layout and digital power design to support more cores and provide better performance
    • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
    • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
    • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
    • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
    • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

    Specification:

    Model B760M BOMBER WIFI
    Chipset INTEL B760
    CPU SUPPORT Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
    Memory 2x DDR5, Maximum Memory Capacity 96GB Memory

    DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)

    Max. overclocking frequency:

    • 1DPC 1R Max speed up to 6400+ MHz
    • 1DPC 2R Max speed up to 5600+ MHz
    Onboard Graphics 1x HDMI
    Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz
    1x DisplayPort
    Support DP 1.4, maximum resolution of 4K 60Hz
    1x D-Sub
    Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz
    EXPANSION SLOT 1x PCI-E x16
    1x PCI-E x1
    PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
    PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)
    Storage 2x M.2 (Qty)
    M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
    M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    4x SATA 6G (Qty)
    * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
    RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    USB 2x USB 2.0
    4x USB 2.0
    4x USB 3.2 Gen1 Type A
    2x USB 3.2 Gen1 Type A
    LAN Realtek RTL8125B 2.5Gbps LAN
    WIRELESS / BLUETOOTH Intel Wi-Fi 6E
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax

    Supports Bluetooth 5.3, FIPS, FISMA
    Audio Realtek ALC897 Codec
    7.1-Channel High Definition Audio
    Internal I/O
    • 1x Power Connector(ATX_PWR)
    • 1x Power Connector(CPU_PWR)
    • 1x CPU Fan
    • 2x System Fan
    • 2x Front Panel (JFP)
    • 1x Chassis Intrusion (JCI)
    • 1x Front Audio (JAUD)
    • 1x Com Port (JCOM)
    • 2x Addressable V2 RGB LED connector (JARGB_V2)
    • 1x RGB LED connector(JRGB)
    • 1x TPM pin header(Support TPM 2.0)
    • 4x USB 2.0
    • 2x USB 3.2 Gen1 Type A
    LED FEATURE 4x EZ Debug LED
    BACK PANEL PORTS
    • HDMI
    • VGA
    • DisplayPort
    • Keyboard / Mouse
    • 2.5G LAN
    • Wi-Fi / Bluetooth
    • Audio Connectors
    • USB 2.0
    • USB 3.2 Gen 1 5Gbps (Type-A)
    OPERATING SYSTEM Support for Windows 11 64-bit, Windows 10 64-bit
    PCB Dimension (W × L) mATX
    220mmx243.84mm
    Warranty 3 Years
    Note Features, Price, Specifications are subject to change without notice.

    Images used for representation purpose only



    Additional information
    Stock Status:In Stock
    ManufacturerMsi
    PlatformIntel
    ColorBlack
    Motherboar SocketLGA1700
    Motherboard ChipsetB760
    Max Memory Support128 GB
    Supported Memory TypeDDR5
    Channel SupportedDual Channel
    Memory FeatureSupports DDR5 ECC/non-ECC, un-buffered memory, Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
    Graphics Port1x HDMI, 1x VGA
    Expansion Slots– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module, – 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode, – 15μ Gold Contact in VGA PCIe Slot (PCIE1), – Supports AMD CrossFire™, CPU: – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode Chipset:
    Back Panel I/O Ports1 x BIOS Flashback Button, 1 x HDMI Port, 1 x Line Out Jack (Gold Audio Jack), 1 x Microphone Input Jack (Gold Audio Jack), 1 x Optical SPDIF Out Port, 1 x RJ-45 LAN Port, 2 x Antenna Ports, 2 x USB4 Type-C Ports (40 Gb/s), 4 x USB 3.2 Gen1 Type-A Ports, x USB 2.0 Ports
    Internal I/O Connector1 x Power LED and Speaker Header, 1 x RGB LED Header, 1 x SPI TPM Header, 1 x Thermistor Cable Header, 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control), 3 x Addressable LED Headers, 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
    Form FactorATX
