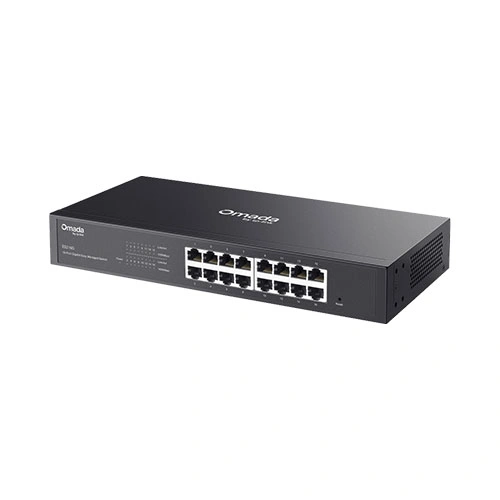

TP-Link ES216G Omada 16-Port Switch

Features:

• 16×10/100/1000Mbps RJ45 ports
• Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
• Centralized Cloud Management via the web or the Omada app†
• VLAN, Port Isolation, Cable Test, QoS△ for reliable surveillance networking
• Automatic Loop Prevention and IGMP Snooping
• Fanless design for silent operation
• Durable metal casing and desktop/rack mounting design

Works with Omada Central Essentials for Free and Easy Cloud Management

Omada Central Essentials provides free and easy-to-use cloud centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

HARDWARE FEATURES

• Interface: 16× 10/100/1000 Mbps RJ45 Ports / Auto-Negotiation/Auto MDI/MDIX
• Fan Quantity: Fanless
• Installation: Desktop / Rackmountable
• Physical Security Lock: Yes
• Power Supply: 100-240 V~50/60 Hz
• Surge Protection: ±6kV

PERFORMANCE

• Packet Buffer Memory: 4 Mbit
• Jumbo Frame: 15 KB
• Switching Capacity: 32 Gbps
• Packet Forwarding Rate: 23.8 Mpps
• MAC Address Table: 8K

SOFTWARE FEATURES

Quality of Service

• Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode
• WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
• Port-Based Rating Limit
• Storm Control
• Multiple Control Modes (kbps/pps)
• Broadcast/Multicast/Unknown-Unicast Control△

L2 Features

• Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
• 802.3x Flow Control
• Mirroring
• Port Mirroring
• One-to-One
• Many-to-One
• Ingress/Egress/Both
• Port Statistics
• Port Mirror Status
• Traffic Statistics
• 802.1ab LLDP

L2 Multicast

• IGMP Snooping
• IGMP v1/v2/v3 Snooping
• Fast Leave

VLAN

• MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
• Max 32 VLAN Groups
• 4K VID

Transmission Method: Store-And-Forward

Management Features

Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management

• Omada Cloud-Based Controller / Omada Hardware Controller / Omada Software Controller

Cloud Access

• Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning

• Yes. Requires the use of Omada Cloud-Based Controller

Management Features

• Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Unified Configuration†

OTHERS

• Certification: FCC, CE, RoHS

Environment

• Operating Temperature: -5℃~50℃ (23℉~122℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

Warranty: 3Years

Note: Features, Price, Specifications are subject to change without notice.Images used for representation purpose only
