-49%

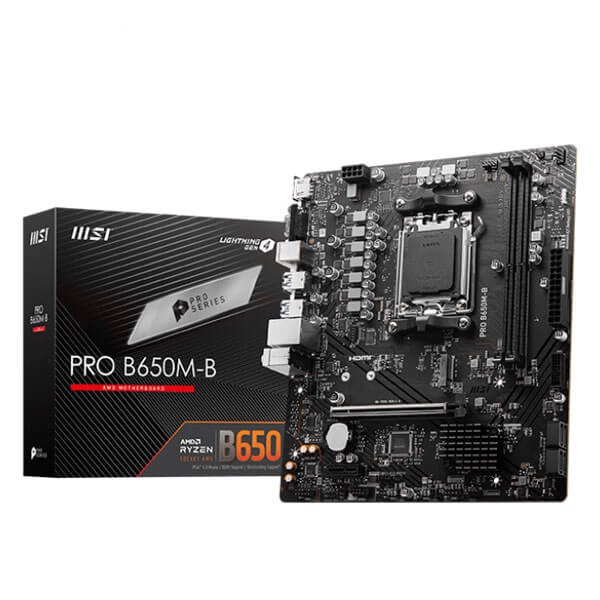

MSI Pro B650M-B M-ATX Motherboard
MSI Pro B650M-B M-ATX Motherboard - Image 2
MSI Pro B650M-B M-ATX Motherboard - Image 3
MSI Pro B650M-B M-ATX Motherboard - Image 4
Click to enlarge
    MSI Pro B650M-B M-ATX Motherboard
    MSI Pro B650M-B M-ATX Motherboard - Image 2
    MSI Pro B650M-B M-ATX Motherboard - Image 3
    MSI Pro B650M-B M-ATX Motherboard - Image 4

    MSI Pro B650M-B M-ATX Motherboard

    32 Items sold in last 7 days
    Brand:
    45 People watching this product now!
    SKU: PRO-B650M-B Categories: , ,

    Original price was: ₹16,999.00.Current price is: ₹8,600.00.

    Compare
    Add to wishlist
    Description

    Features:

    • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
    • Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
    • Core Boost : With premium layout and digital power design to support more cores and provide better performance
    • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
    • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
    • 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
    • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
    • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

    Specifications:

     Model Name  PRO B650M-B
     Chipset  AMD B650
     CPU Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
    Socket AM5
     Memory 2x DDR5, Maximum Memory Capacity 96GB
    Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 6800+ MHz
    • 1DPC 2R Max speed up to 6000+ MHz

    Supports Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Supports AMD EXPO
     Onboard Graphics 1x HDMI™
    Support HDMITM 2.1, maximum resolution of 4K 60Hz
    1x VGA
    Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz
     Slot  1x PCI-E x16 slot
    1x PCI-E x1 slot
    PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
    PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
     Storage  1x M.2
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    4x SATA 6G
     RAID  Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
     USB  2x USB 2.0 (Rear)
    4x USB 2.0 (Front)
    4x USB 3.2 Gen1 Type A (Rear)
    2x USB 3.2 Gen1 Type A (Front)
     LAN  Realtek® RTL8125BG 2.5G LAN
     Audio  Realtek® ALC897 Codec
    7.1-Channel High Definition Audio
     Internal IO  1x Power Connector(ATX_PWR)
    1x Power Connector(CPU_PWR)
    1x CPU Fan
    2x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Com Port (JCOM)
    1x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    2x USB 3.2 Gen1 Type A ports
     LED FEATURE  4x EZ Debug LED
     BACK PANEL PORTS HDMI™
    VGA
    Keyboard/Mouse
    USB 3.2 Gen 1 5Gbps (Type-A)
    LAN port
    Audio connectors
    USB 2.0
     OPERATING SYSTEM  Support for Windows® 11 64-bit, Windows® 10 64-bit
     PCB Info  mATX
    215mmx243.84mm
     Warranty 3 Years
    Note *** Features, Price, Specifications are subject to change without notice.
    Additional information
    Stock Status:In Stock
    Supported Memory TypeDDR5
    ManufacturerMsi
    PlatformAMD
    Motherboar SocketAM5
    Motherboard ChipsetB650
    Motherboard Memory Speedup to 4600+
    Max Memory Support64 GB
    Form FactorMicro-ATX
