-43%

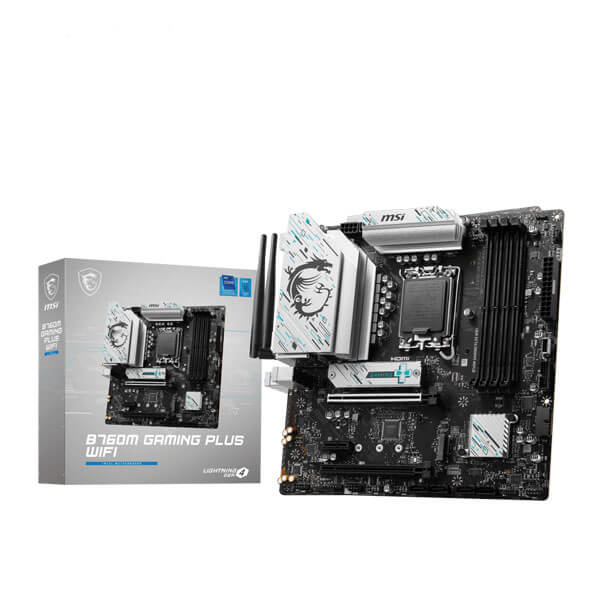

MSI B760M Gaming Plus WIFI DDR5 Motherboard

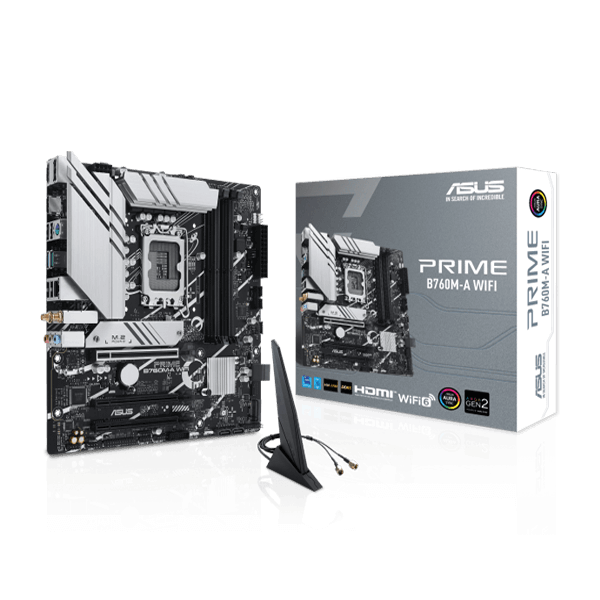

Asus Prime B760M-A WIFI DDR5 M-ATX Motherboard
MSI B760M Gaming Plus WIFI DDR5 Motherboard - Image 3
Click to enlarge
    MSI B760M Gaming Plus WIFI DDR5 Motherboard
    Asus Prime B760M-A WIFI DDR5 M-ATX Motherboard
    MSI B760M Gaming Plus WIFI DDR5 Motherboard - Image 3

    MSI B760M Gaming Plus WIFI DDR5 Motherboard

    210 Items sold in last 7 days
    Brand:
    26 People watching this product now!
    SKU: B760M-GAMING-PLUS-WIFI Categories: , ,

    Original price was: ₹28,999.00.Current price is: ₹16,550.00.

    Compare
    Add to wishlist
    Description

    Features:

    • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
    • Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
    • Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
    • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
    • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G
    • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
    • High Quality PCB: 6-layer PCB made by 2oz thickened copperAudio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

    Specifications:

     Model Number  B760M GAMING PLUS WIFI
     Chipset  INTEL B760
     CPU  Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
    LGA 1700
     Memory 4x DDR5, Maximum Memory Capacity 192GB
    Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 6800+ MHz
    • 1DPC 2R Max speed up to 6400+ MHz
    • 2DPC 1R Max speed up to 6000+ MHz
    • 2DPC 2R Max speed up to 5600+ MHz

    Supports Intel® XMP 3.0 OC
    Supports Dual-Controller Dual-Channel mode
    Supports non-ECC, un-buffered memory
     Onboard Graphics  2x HDMI™
    Support HDMI™ 2.1, maximum resolution of 4K 60Hz
    2x DisplayPort
    Support DP 1.4, maximum resolution of 4K 60Hz
     Slot  2x PCI-E x16 slot
    1x PCI-E x1 slot
    PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
    PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
    PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
     Storage  2x M.2
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    4x SATA 6G
     RAID  Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
     USB  2x USB 2.0 (Rear)
    4x USB 2.0 (Front)
    2x USB 3.2 Gen1 Type A (Rear)
    4x USB 3.2 Gen1 Type A (Front)
    1x USB 3.2 Gen1 Type C (Front)
    2x USB 3.2 Gen2 Type A (Rear)
     LAN  Realtek® RTL8125BG 2.5G LAN
     WIRELESS LAN & BLUETOOTH Intel® Wi-Fi 6E
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax

    Supports Bluetooth® 5.3, FIPS, FISMA
     Audio  Realtek® ALC897 Codec
    7.1-Channel High Definition Audio
     Internal IO  1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x CPU Fan
    1x Pump Fan
    2x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Com Port (JCOM)
    2x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    4x USB 3.2 Gen1 Type A ports
    1x USB 3.2 Gen1 Type C ports
     LED FEATURE   4x EZ Debug LED

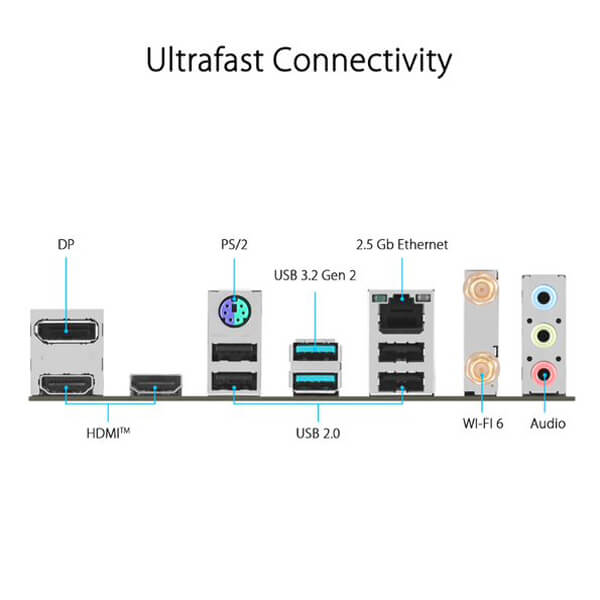

     BACK PANEL PORTS Keyboard / Mouse
    DisplayPort
    USB 3.2 Gen 1 5Gbps (Type-A)
    2.5G LAN
    Wi-Fi / Bluetooth
    USB 2.0
    HDMI™
    USB 3.2 Gen 2 10Gbps (Type-A)
    Audio Connectors
     OPERATING SYSTEM   Support for Windows® 11 64-bit, Windows® 10 64-bit
     PCB Info  mATX
    243.84mmx243.84mm
     Warranty  3 Years
    Note *** Features, Price, Specifications are subject to change without notice.
    Additional information
    ColorBlack
    Stock Status:In Stock
    ManufacturerMsi
    PlatformIntel
    Motherboar SocketLGA1700
    Motherboard ChipsetB760
    Motherboard Memory Speedup to 6800+
    Max Memory Support256 GB
    Form FactorATX
    Supported Memory TypeDDR5
