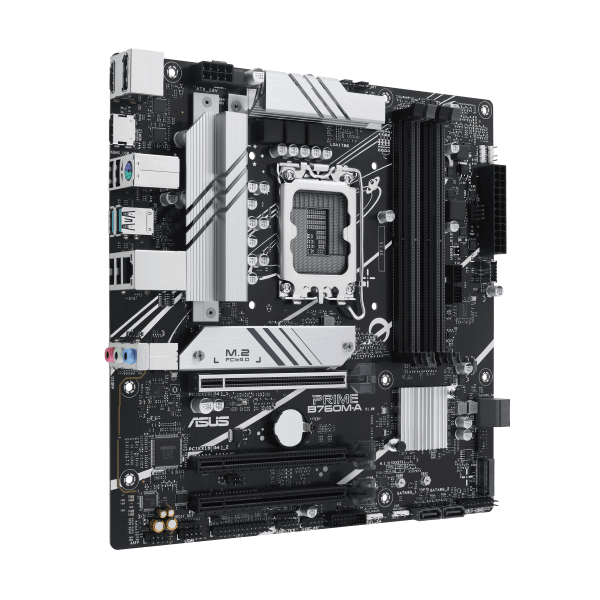

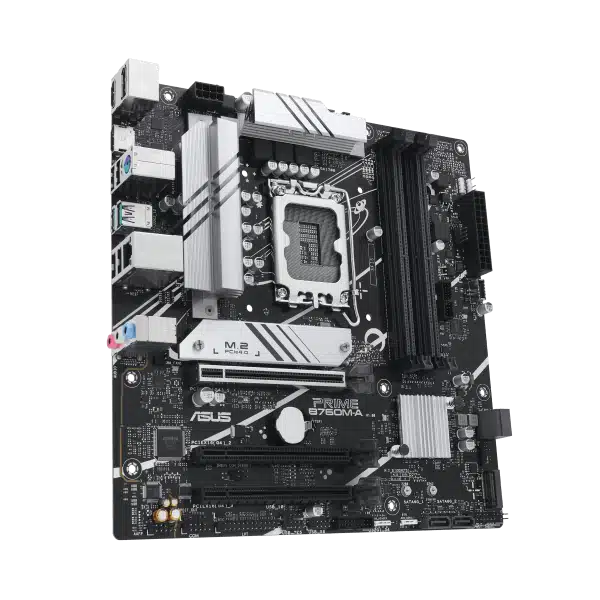

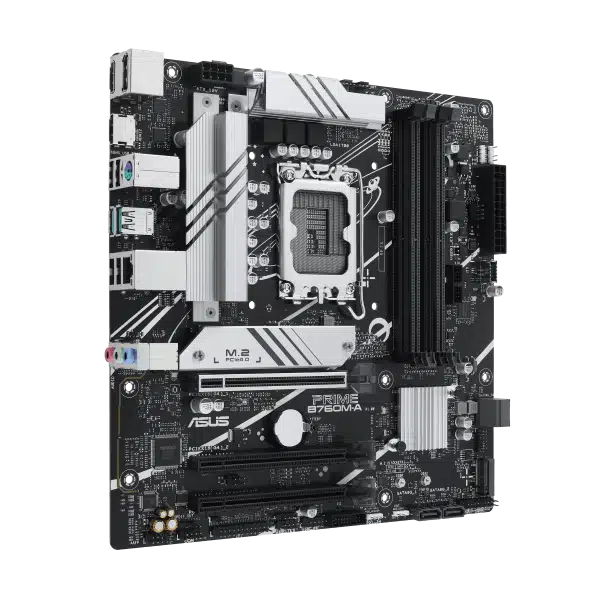

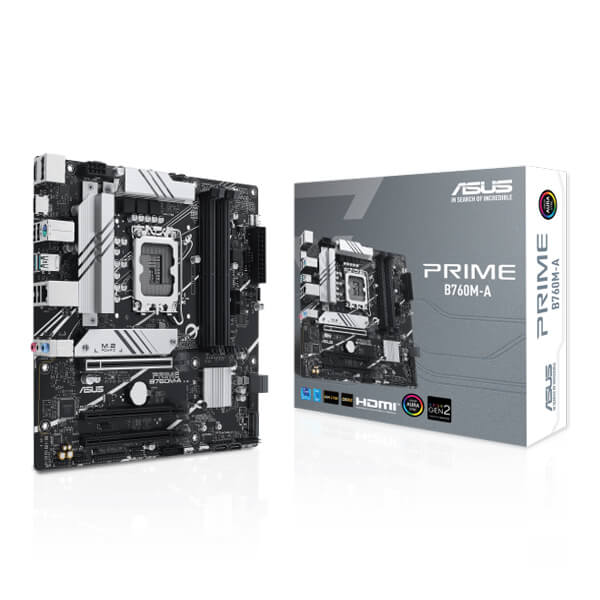

Asus Prime B760M-A DDR5 M-ATX Motherboard
Asus Prime B760M-A DDR5 M-ATX Motherboard - Image 2
Asus Prime B760M-A DDR5 M-ATX Motherboard - Image 3
Click to enlarge
    Asus Prime B760M-A DDR5 M-ATX Motherboard
    Asus Prime B760M-A DDR5 M-ATX Motherboard - Image 2
    Asus Prime B760M-A DDR5 M-ATX Motherboard - Image 3

    Asus Prime B760M-A DDR5 M-ATX Motherboard

    217 Items sold in last 7 days
    Brand:
    51 People watching this product now!
    SKU: PRIME-B760M-A Categories: , ,

    Original price was: ₹19,799.00.Current price is: ₹13,496.00.

    Compare
    Add to wishlist
    Description

    Features:

    • Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
    • Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
    • Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
    • Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
    • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

    Intelligent Control

    ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

    Flexible Air- and Liquid-Cooling Controls

    ASUS Fan Xpert 2+ software provides comprehensive control over fans and all-in-one (AiO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans, AiO coolers can also be controlled via the UEFI BIOS.

    Precise Digital Power Control

    The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

    Specification:

    Model PRIME B760M-A
    CPU Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
    Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
    Chipset Intel® B760 Chipset
    Memory 4 x DIMM slots, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    OptiMem II
    Graphics
    • 1 x DisplayPort
    • 2 x HDMITM ports
    Expansion Slots Intel 13th & 12th Gen Processors
    1 x PCIe 4.0 x16 slot
    Intel B760 Chipset
    1 x PCIe 4.0 x16 slot (supports x4 mode)
    1 x PCIe 4.0 x16 slot (supports x1 mode)
    Storage Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports
    Intel 13th & 12th Gen Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    Intel B760 Chipset
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    4 x SATA 6Gb/s ports
    Ethernet 1 x Realtek 2.5Gb Ethernet
    USB Rear USB (Total 6 ports)
    2 x USB 3.2 Gen 2 ports (2 x Type-A )
    4 x USB 2.0 ports (4 x Type-A)
    Front USB (Total 10 ports)
    2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
    1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    1 x USB 2.0 header supports 1 additional USB 2.0 port
    Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    – Supports up to 24-Bit/192 kHz playback
    Audio Features
    – Audio Shielding
    – Premium audio capacitors
    – Dedicated audio PCB layers
    Back Panel I/O Ports 2 x USB 3.2 Gen 2 ports (2 x Type-A )
    4 x USB 2.0 ports (4 x Type-A)
    1 x DisplayPort
    2 x HDMITM ports
    1 x Wi-Fi Module
    1 x Realtek 2.5Gb Ethernet port
    3 x Audio jacks
    1 x PS/2 Keyboard/Mouse combo port
    Internal I/O Connectors Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    2 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    Storage related
    2 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
    1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    1 x USB 2.0 header supports 1 additional USB 2.0 port
    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x Aura RGB header
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (AAFP)
    1 x LPT header
    1 x S/PDIF Out header
    1 x SPI TPM header (14-1pin)
    1 x 20-3 pin System Panel header with Chassis intrude function
    Special Features ASUS 5X PROTECTION III
    – DIGI+ VRM
    – LANGuard
    – Overvoltage Protection
    – SafeSlot Core+
    – Stainless-Steel Back I/O
    ASUS Q-Design
    – Q-DIMM
    – Q-LED Core
    – Q-Slot
    ASUS Thermal Solution
    – M.2 heatsink
    – VRM heatsink design
    ASUS EZ DIY
    – ProCool
    Aura Sync
    – Aura RGB header
    – Addressable Gen 2 headers
    Software Features ASUS Exclusive Software
    Armoury Crate
    – Aura Creator
    – Aura Sync
    – Fan Xpert 2+
    – Power Saving
    AI Suite 3
    – Digi+ VRM
    – PC Cleaner
    ASUS CPU-Z
    Norton Deluxe (60 Days Free Trial)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode
    BIOS 128 Mb Flash ROM, UEFI AMI BIOS
    Manageability WOL by PME, PXE
    Accessories Cables
    2 x SATA 6Gb/s cables
    Miscellaneous
    1 x I/O Shield
    1 x M.2 Rubber Package
    1 x Screw package for M.2 SSD
    Documentation
    1 x User guide
    Operating System Windows® 11, Windows® 10 64-bit
    Form Factor mATX Form Factor
    9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
    Warranty 3 Years
    Note Features, Price, Specifications are subject to change without notice. Images used for representation purposes only
    Additional information
    ColorBlack
    Stock Status:In Stock
    ManufacturerAsus
    PlatformIntel
    Motherboar SocketLGA1700
    Motherboard ChipsetB760
    Motherboard Memory Speedup to 7200+
    Max Memory Support256 GB
    Form FactorMicro-ATX
    Supported Memory TypeDDR4
