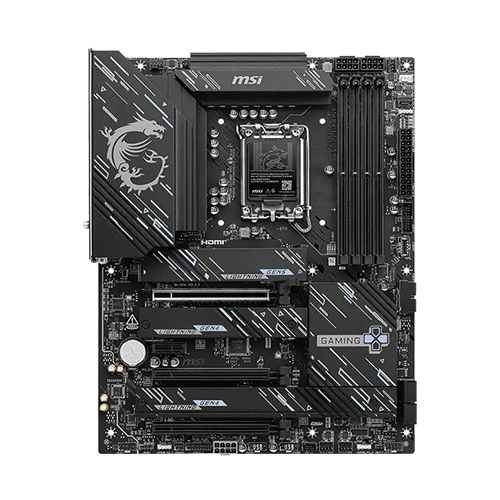

Msi Z890 Gaming Plus WiFi6E ATX Motherboard

Features:

• Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket
• Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
• Ultra Performance: 14+1+1+1 Duet Rail Power System 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
• EZ DIY: EZ M.2 Shield Frozr II, EZ PCIe Clip II and EZ Antenna
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
• High-Speed Connectivity: Intel® Killer™ 5G LAN, Wi-Fi 6E Solution & USB 10Gbps Type-C port – a solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

Z890 GAMING PLUS WIFI6E is designed with durable components to provide great gaming experience. Designed with Wi-Fi 6E and 5G LAN, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it’s ready for 24/7 non-stop gaming of Intel Core Ultra processors.

One Finger for EZ GPU Installation

The new EZ PCIe Clip II, located on the first slot, features the rebounding force mechanism that allows for easy removal of the graphics card by pressing the tail-like lock with one finger. Due to this exquisite design, users can uninstall the graphics cards effortlessly, even in the cramped case spaces.

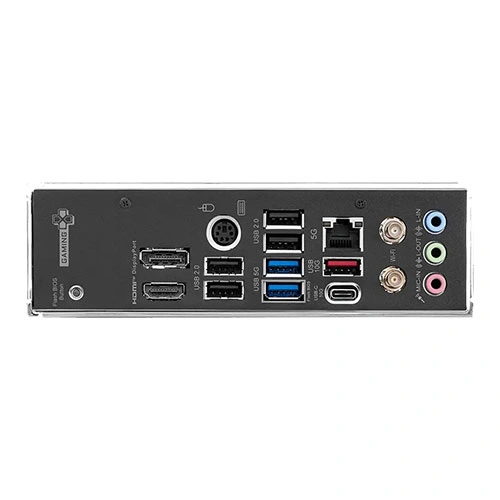

PRE-INSTALLED I/O SHIELD

The Pre-Installed I/O Shield offers a streamlined and hassle-free installation experience by eliminating the need to manually fit the I/O shield during motherboard setup. With its built-in design, it ensures proper alignment and a secure fit, providing both protection and convenience while enhancing the overall durability of your build.

EZ MOUNTING

MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.

EZ Conn-Design (JAF-1)

The MSI exclusive JAF_1 header allows MPG EZ120 ARGB fan to operate with a single cable. Alternatively, the JAF_1 header can be converted into additional ARGB Gen 1 and fan headers by using a dedicated 1-to-2 EZ Conn-cable, streamlining and optimizing the entire building process.

14+1+1+1 Duet Rail Power System

Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MSI Gaming series motherboard is ready to sustain heavy gaming loadings.

OPTIMIZED PCB SOLUTION

The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

Heavy Plated VRM Heatsink

The VRM heatsink covers the upper MOS and helps dissipate the heat.

M.2 Shield Frozr

Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

7W/mK Thermal Pad & Additional Choke Pad

High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.

Enlarged Chipset Heatsink

The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.

FAST AND FUTURE-READY STORAGE

MSI GAMING PLUS series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

LIGHTNING GEN 5 PCI-E

Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

SMT PCIE 5.0 SLOT

The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

The Isolated Analogy Structure for Audio Connectors

To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.
