-49%

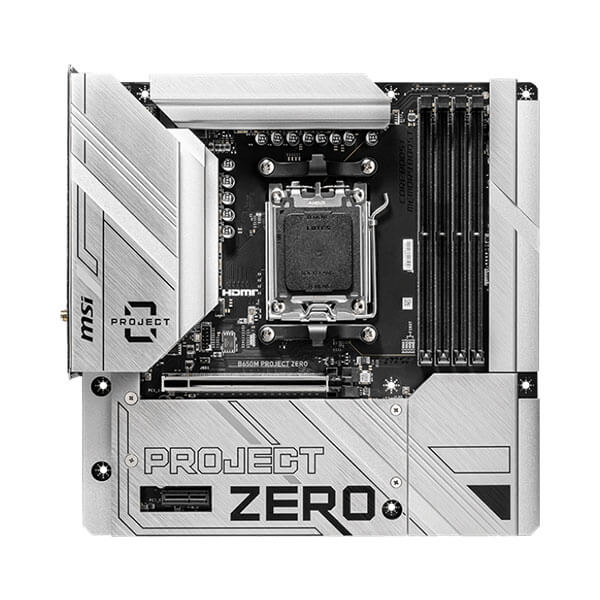

MSI B650M Project Zero WIFI M-ATX Motherboard
MSI B650M Project Zero WIFI M-ATX Motherboard - Image 2
Click to enlarge
    MSI B650M Project Zero WIFI M-ATX Motherboard
    MSI B650M Project Zero WIFI M-ATX Motherboard - Image 2

    MSI B650M Project Zero WIFI M-ATX Motherboard

    174 Items sold in last 7 days
    Brand:
    45 People watching this product now!
    SKU: B650M-PROJECT-ZERO Categories: , ,

    Original price was: ₹36,999.00.Current price is: ₹18,900.00.

    Compare
    Add to wishlist
    Description

    Features:

    • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
    • Supports DDR5 Memory, up to 7600+(OC) MHz
    • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
    • 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
    • Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
    • Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
    • Audio Boost: Reward your ears with studio grade sound

    Specifications:

    Model B650M PROJECT ZERO
    Chipset AMD B650
    CPU Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
    Socket AM5
    Memory 4x DDR5, Maximum Memory Capacity 256GB
    Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 7600+ MHz
    • 1DPC 2R Max speed up to 6400+ MHz
    • 2DPC 1R Max speed up to 6400+ MHz
    • 2DPC 2R Max speed up to 5400+ MHz
    Onboard Graphics
    • 1x HDMI™

    Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz

    • 1x DisplayPort

    Support DP 1.4, maximum resolution of 4K 60Hz
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
    Slot 1x PCI-E x16 slot
    1x PCI-E x1 slot
    PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
    PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
    Storage 2x M.2
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    4x SATA 6G
    RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices*
    Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
    * SATA_A1_A2 do not support RAID function.
    USB
    • 2x USB 2.0 (Rear)
    • 4x USB 2.0 (Front)
    • 2x USB 3.2 Gen1 Type A (Rear)
    • 2x USB 3.2 Gen1 Type A (Front)
    • 3x USB 3.2 Gen2 Type A (Rear)
    • 1x USB 3.2 Gen2 Type C (Rear)
    • 1x USB 3.2 Gen2 Type C (Front)
    • 1x USB 3.2 Gen2x2 Type C (Rear)
    LAN Realtek® RTL8125BG 2.5Gbps LAN
    WIRELESS LAN & BLUETOOTH AMD Wi-Fi 6E
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX
    Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
    Supports 802.11 a/ b/ g/ n/ ac/ ax

    Supports Bluetooth® 5.3**

    * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
    ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
    Audio Realtek® ALC897 Codec
    7.1-Channel High Definition Audio
    Supports S/PDIF output
    Supports up to 32-Bit/384 kHz playback on front panel
    Internal IO
    • 1x Power Connector(ATX_PWR)
    • 2x Power Connector(CPU_PWR)
    • 1x CPU Fan
    • 1x Pump Fan
    • 3x System Fan
    • 2x Front Panel (JFP)
    • 1x Chassis Intrusion (JCI)
    • 1x Front Audio (JAUD)
    • 3x Addressable V2 RGB LED connector (JARGB_V2)
    • 1x TPM pin header(Support TPM 2.0)
    • 4x USB 2.0 ports
    • 2x USB 3.2 Gen1 Type A ports
    • 1x USB 3.2 Gen2 Type C ports
    LED FEATURE 4x EZ Debug LED
    BACK PANEL PORTS
    • DisplayPort
    • 2.5G LAN
    • USB 2.0
    • USB 3.2 Gen 1 5Gbps (Type-A)
    • Wi-Fi / Bluetooth
    • Audio connectors
    • Flash BIOS Button
    • Clear CMOS Button
    • HDMI™
    • USB 3.2 Gen 2 10Gbps (Type-A)
    • USB 3.2 Gen 2 10Gbps (Type-C)
    • USB 3.2 Gen 2×2 20Gbps (Type-C)
    OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
    PCB Info mATX
    243.84mmx243.84mm
    Warranty 3 Years
    Note *** Features, Price, Specifications are subject to change without notice.
    Additional information
    ManufacturerAsus
    PlatformAMD
    Motherboar SocketAM5
    Motherboard ChipsetB650
    Motherboard Memory Speedup to 7600
    Max Memory Support256 GB
    Supported Memory TypeDDR5
    Channel SupportedDual Channel
