-26%

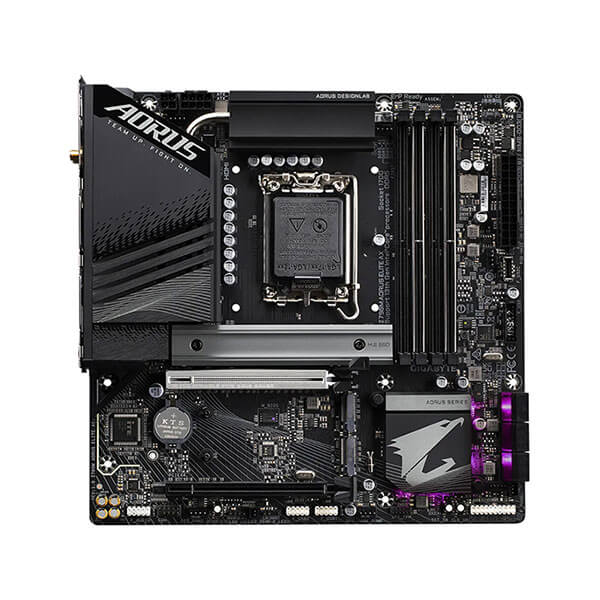

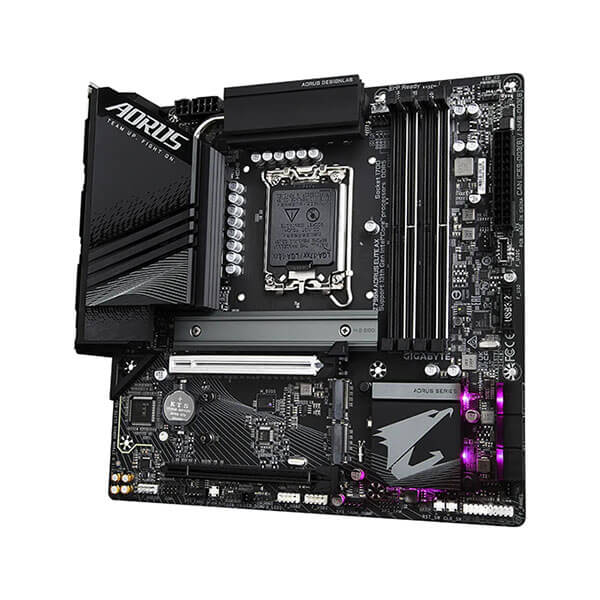

Gigabyte Z790M Aorus Elite AX (Wi-Fi) Motherboard
Gigabyte Z790M Aorus Elite AX (Wi-Fi) Motherboard - Image 2
Gigabyte Z790M Aorus Elite AX (Wi-Fi) Motherboard - Image 3
Gigabyte Z790M Aorus Elite AX (Wi-Fi) Motherboard
Click to enlarge
    Gigabyte Z790M Aorus Elite AX (Wi-Fi) Motherboard
    Gigabyte Z790M Aorus Elite AX (Wi-Fi) Motherboard - Image 2
    Gigabyte Z790M Aorus Elite AX (Wi-Fi) Motherboard - Image 3
    Gigabyte Z790M Aorus Elite AX (Wi-Fi) Motherboard

    Gigabyte Z790M Aorus Elite AX (Wi-Fi) Motherboard

    52 Items sold in last 7 days
    Brand:
    39 People watching this product now!
    SKU: Z790M-AORUS-ELITE-AX Categories: , ,

    Original price was: ₹27,000.00.Current price is: ₹19,950.00.

    Compare
    Add to wishlist
    Description

    Features:

    • Intel® Socket LGA 1700：Support 14th, 13th and 12th Gen Series Processors
    • Unparalleled Performance：Twin 12*+1+1 Phases Digital VRM Solution
    • Dual Channel DDR5：4*SMD DIMMs with XMP 3.0 Memory Module Support
    • Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors
    • Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & M.2 SSD Performance
    • EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
    • Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
    • Extended Connectivity：HDMI, DP, Rear USB-C® 20Gb/s, Front USB-C® 10Gb/s
    • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
    • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
    • 6+6 phases parallel power design

    Specification:

    CPU
    • LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel® Coreâ„¢, Pentium® Gold and Celeron® Processors
    • L3 cache varies with CPU
    ChipsetIntel® Z790 Express Chipset
    Memory
    • Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
    • 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    • Dual channel memory architecture
    • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    • Support for Extreme Memory Profile (XMP) memory modules
    Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:

    • 1 x HDMI port, supporting a maximum resolution

    Support for HDMI 2.0 version and HDCP 2.3.

    • 1 x DisplayPort, supporting a maximum resolution

    Support for DisplayPort 1.2 version and HDCP 2.3

    Audio
    • Realtek® Audio CODEC
    • High Definition Audio
    • 2/4/5.1/7.1-channel
    • Support for S/PDIF Out
    LANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    Wireless Communication moduleIntel® Wi-Fi 6E AX211

    • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    • BLUETOOTH 5.3
    • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    Expansion SlotsCPU:

    • 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

    For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    Chipset:

    • 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)

    Support for AMD CrossFireâ„¢ technology (PCIEX16 and PCIEX4)

    Storage InterfaceCPU:

    • 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

    Chipset:

    • 1 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
    • 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
    • 6 x SATA 6Gb/s connectors
    USBChipset:

    • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support
    • 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
    • 1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

    Chipset+2 USB 2.0 Hubs:

    • 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

    Chipset+2 USB 2.0 Hubs:

    • 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    Internal I/O Connectors 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x 4-pin ATX 12V power connector
    1 x CPU fan header
    1 x water cooling CPU fan header
    3 x system fan headers
    1 x system fan/water cooling pump header
    2 x addressable LED strip headers
    2 x RGB LED strip headers
    3 x M.2 Socket 3 connectors
    6 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C® header, with USB 3.2 Gen 2 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    2 x Thunderboltâ„¢ add-in card connectors
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    1 x serial port header
    1 x reset button
    1 x Q-Flash Plus button
    1 x Clear CMOS button
    1 x reset jumper
    Back Panel Connectors1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
    1 x USB 3.2 Gen 2 Type-A port (red)
    4 x USB 3.2 Gen 1 ports
    4 x USB 2.0/1.1 ports
    2 x SMA antenna connectors (2T2R)
    1 x HDMI 2.0 port
    1 x DisplayPort
    1 x RJ-45 port
    1 x optical S/PDIF Out connector
    2 x audio jacks
    I/O ControlleriTE® I/O Controller Chip
    H/W Monitoring
    • Voltage detection
    • Temperature detection
    • Fan speed detection
    • Water cooling flow rate detection
    • Fan fail warning
    • Fan speed control
    BIOS
    • 1 x 256 Mbit flash
    • Use of licensed AMI UEFI BIOS
    • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Unique Features
    • Support for GIGABYTE Control Center (GCC)
    • Support for Q-Flash
    • Support for Q-Flash Plus
    • Support for Smart Backup
    Bundled Software
    • Norton® Internet Security (OEM version)
    • LAN bandwidth management software
    Operating SystemSupport for Windows 11 64-bit
    Support for Windows 10 64-bit
    Form FactorMicro ATX Form Factor; 24.4cm x 24.4cm
    Warranty3 Years
    Note*** Features, Price, Specifications are subject to change without notice.



    Additional information
    ColorBlack
    Stock Status:In Stock
    ManufacturerGigabyte
    PlatformIntel
    Motherboar SocketLGA1700
    Motherboard ChipsetZ790
    Motherboard Memory Speedup to 5333+
    Max Memory Support192 GB
    Form FactorATX
    Supported Memory TypeDDR5
