-46%

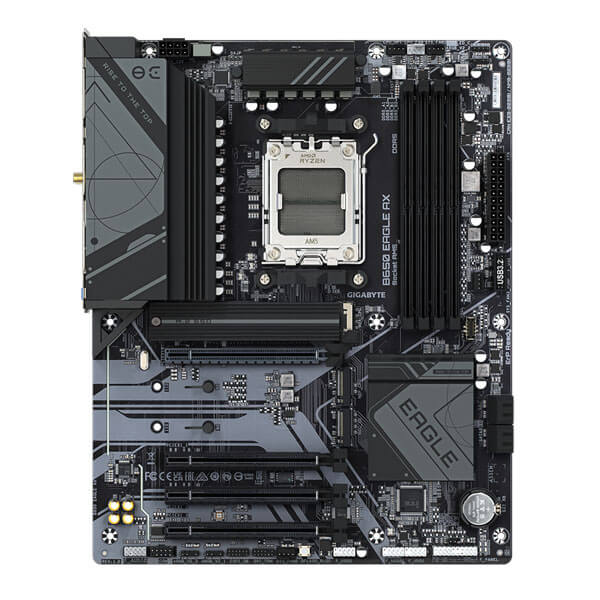

Gigabyte B650 Eagle AX WIFI ATX Motherboard
Gigabyte B650 Eagle AX WIFI ATX Motherboard
Gigabyte B650 Eagle AX WIFI ATX Motherboard
Click to enlarge
    Gigabyte B650 Eagle AX WIFI ATX Motherboard
    Gigabyte B650 Eagle AX WIFI ATX Motherboard
    Gigabyte B650 Eagle AX WIFI ATX Motherboard

    Gigabyte B650 Eagle AX WIFI ATX Motherboard

    106 Items sold in last 7 days
    Brand:
    15 People watching this product now!
    SKU: B650-EAGLE-AX Categories: , ,

    Original price was: ₹27,800.00.Current price is: ₹14,900.00.

    Compare
    Add to wishlist
    Description

    Features:

    • AMD Socket AM5：Supports AMD Ryzenâ„¢ 7000/ Ryzenâ„¢ 8000/ Ryzenâ„¢ 9000 Series Processors
    • Unparalleled Performance：12+2+2 Phases Digital VRM Solution
    • Dual Channel DDR5：4*SMD DIMMs with AMD EXPOâ„¢ & Intel® XMP Memory Module Support
    • SuperSpeed Storage：1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors
    • Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
    • EZ-Latch：PCIe x16 Slot with Quick Release Design
    • Fast Networks：Wi-Fi 6E 802.11ax & GbE LAN
    • Extended Connectivity：DP, HDMI, Rear USB® 10Gb/s
    • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
    • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

    Durable Performance
    GIGABYTE Ultra Durableâ„¢ motherboards built with optimal components inside out provide the prime performance and timeless platform.

    Future Connectivity
    The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

    Easy Friendly
    Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

    Specifications:

     Model Number B650 EAGLE AX
     CPU  AMD Socket AM5, support for:AMD Ryzenâ„¢ 7000 / Ryzenâ„¢ 8000 / Ryzenâ„¢ 9000 Series Processors(Go to GIGABYTE’s website for the latest CPU support list.)
     Chipset  AMD B650
     Memory Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
    4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for AMD EXtended Profiles for Overclocking (AMD EXPOâ„¢) and Extreme Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
     Onboard Graphics Integrated Graphics Processor with AMD Radeon™ Graphics support:

    – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz* Support for DisplayPort 1.4 version.

    – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

    * Support for HDMI 2.1 version and HDCP 2.3.

    ** Support for native HDMI 2.1 TMDS compatible ports.

    (Graphics specifications may vary depending on CPU support.)

     Audio Realtek® Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
     LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
     Wireless Communication module Realtek® Wi-Fi 6E RTL8852CE
    – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    – BLUETOOTH 5.3
    – Support for 11ax 160MHz wireless standard
    (Actual data rate may vary depending on environment and equipment.)
     Expansion Slots1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    – AMD Ryzenâ„¢ 7000 Series Processors support PCIe 4.0 x16 mode
    – AMD Ryzenâ„¢ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
    – AMD Ryzenâ„¢ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
    * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1
    * The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzenâ„¢ 8000 Series-Phoenix 2 processor is used.
    1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1

     Storage Interface  1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:- AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
    1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:- AMD Ryzenâ„¢ 7000 Series Processors support PCIe 4.0 x2 SSDs- AMD Ryzenâ„¢ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs- AMD Ryzenâ„¢ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
    1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)4 x SATA 6Gb/s connectorsRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, and RAID 10 support for SATA storage devices
     USB CPU:
    – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    – 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
    CPU+USB 2.0 Hub:
    – 4 x USB 2.0/1.1 ports on the back panel
    Chipset:
    – 2 x USB 3.2 Gen 1 ports available through the internal USB header
    – 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
    – 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    Chipset+USB 2.0 Hub:
    – 4 x USB 2.0/1.1 ports available through the internal USB headers
     Internal I/O Connectors 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    1 x CPU fan/water cooling pump header
    2 x system fan headers
    1 x system fan/water cooling pump header
    3 x addressable RGB Gen2 LED strip headers
    1 x RGB LED strip header
    3 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C® header, with USB 3.2 Gen 1 support
    1 x USB 3.2 Gen 1 header
    3 x USB 2.0/1.1 headers
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
    1 x Q-Flash Plus button
    1 x serial port header j
    1 x Clear CMOS jumper
     Back Panel Connectors 1 x DisplayPort
    1 x HDMI port
    1 x PS/2 keyboard/mouse port
    2 x SMA antenna connectors (2T2R)
    1 x USB Type-C® port, with USB 3.2 Gen 1 support
    2 x USB 3.2 Gen 2 Type-A ports (red)
    6 x USB 2.0/1.1 ports
    1 x RJ-45 port
    3 x audio jacks
     I/O Controller  iTE® I/O Controller Chip
     H/W Monitoring  Voltage detection

    Temperature detection

    Fan speed detection

    Water cooling flow rate detection

    Fan fail warning

    Fan speed control

     BIOS 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
     Unique FeaturesSupport for GIGABYTE Control Center (GCC)

    Support for Q-Flash

    Support for Q-Flash Plus

     Bundled Software Norton® Internet Security (OEM version)
    LAN bandwidth management software
     Operating System  Support for Windows 11 64-bit

    Support for Windows 10 64-bit

     Form Factor  ATX Form Factor; 30.5cm x 24.4cm
     Warranty 3 Years
    Note*** Features, Price, Specifications are subject to change without notice.
    Additional information
    ManufacturerGigabyte
    PlatformAMD
    ColorBlack
    Motherboar SocketAM5
    Motherboard ChipsetB650
    Motherboard Memory Speedup to 8200+
    Supported Memory TypeDDR5
    Channel SupportedDual Channel
    Memory FeatureSupports ECC UDIMM memory (non-ECC mode), Supports non-ECC UDIMM memory, Supports un-buffered memory
    Expansion Slots1x PCIe 3.0 x16 slot (from AMD processor), 4000G and 3000 processors Supports x8 speed with Ryzen 3000G processors, 5000G, Supports x16 speed with Ryzen 5000, Supports x4 speed with AMD Athlon with Radeon Graphics processors 1x PCIe 3.0 x1 slot
    Back Panel I/O PortsLAN port HDMI DVI-D Keyboard / Mouse USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A USB 2.0 Ports Audio Connectors
    Internal I/O Connector1x 24-pin ATX main power connector, 1x 4-pin ATX 12V power connector, 1x 4-pin CPU fan connector, 1x 4-pin system fan connectors, 1x Chassis Intrusion connector, 1x Clear CMOS jumper, 1x Front panel audio connector, 1x M.2 slots (M-Key), 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 1xTPM module connector, 2x System panel connectors, 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 4x SATA 6Gb/s connectors
    Max Memory Support256 GB
